803-43-004-10-002000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 803-43-004-10-002000

Preview

803-43-004-10-002000: DescriptionHeaders & Wire Housings 4P 4.5A STRT SOCKET 2R THRU HOLE LO PROF; CategoryThe connector The connector; File Size464KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

803-43-004-10-002000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	803-43-004-10-002000	-	-	View	Buy Now

803-43-004-10-002000 Overview

Headers & Wire Housings 4P 4.5A STRT SOCKET 2R THRU HOLE LO PROF

803-43-004-10-002000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW PROFILE
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	MATTE TIN (200) OVER NICKEL (150)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	803
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

INTERCONNECTS

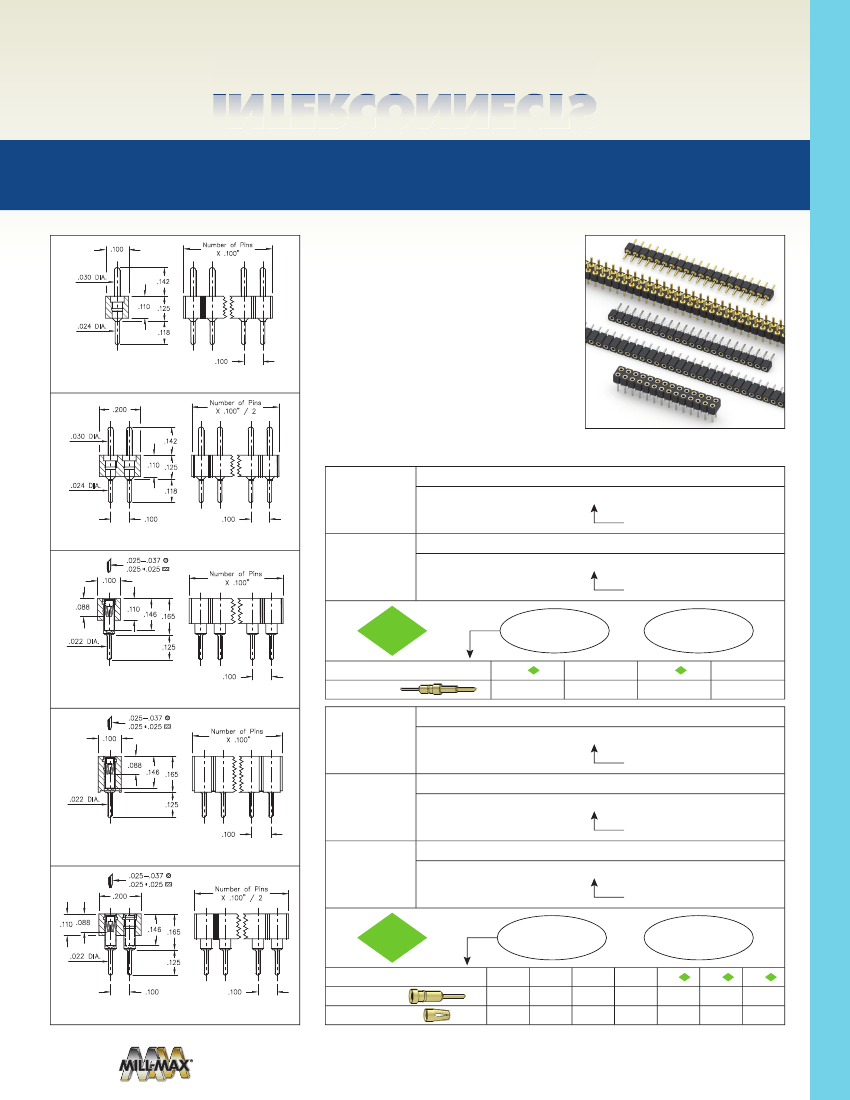

SERIES 800, 801, 802, 803 • .100” GRID (.030” DIA. PINS),

LOW PROFILE HEADERS & VERSATILE SOCKETS • SINGLE & DOUBLE ROW STRIPS

Number of Pins

X .100"

.100

•

Series 800 and 802 single and double row pin

•

Series 801 and 803 single and double row

•

Series 801 and 803 receptacles use Hi-Rel,

.030 DIA.

.142

headers use MM #5016 pins. See page 215 for

details

sockets use MM #1303 receptacles. See page

180 for details

6- nger BeCu #47 contact rated at 4.5 amps.

Receptacles accept .030” diameter and .025”

square pins. See page 256 for details

suitable for all soldering operations

.110

.024 DIA.

.125

.118

.100

FIG. 1

.200

Number of Pins

X .100" / 2

.030 DIA.

•

Insulators are high temperature thermoplastic,

.142

.110 .125

.024 DIA.

ORDERING INFORMATION

Series 800...002

.118

FIG. 1

.100

Single Row Low Pro le Pin Header

800 XX 0_ _ 10 002000

01-64

.100

FIG. 2

.025-.037

.025 .025

.100

Number of Pins

X .100"

Specify number of pins

Series 802...002

FIG. 2

RoHS - 2

Double Row Low Pro le Pin Header

802 XX 0_ _ 10 002000

04-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

XX=Plating Code

See Below

10

µ”

Au

.088

.110

.146 .165

.022 DIA.

2011/65/EU

.125

.100

SPECIFY PLATING CODE XX=

Pin Plating

90

200

µ”

Sn/Pb

40

200

µ”

Sn

FIG. 3

.025-.037

.025 .025

.100

Number of Pins

X .100"

Series 801...002

FIG. 3

Series 801...012

Low Pro le Socket

short insulator)

801 XX 0_ _ 10 002000

01-64

.088

.146 .165

Specify number of pins

.022 DIA.

.125

FIG. 4

.100

Low Pro le Socket

long insulator)

801 XX 0_ _ 10 012000

01-36

Specify number of pins

.025-.037

.025 .025

.200

Number of Pins

X .100" / 2

FIG. 5

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

91

10

µ”

Au

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

.110 .088

.146 .165

2011/65/EU

.022 DIA.

.125

.100

FIG. 5

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

93

99

41

43

200

µ”

Sn

30

µ”

Au

47

200

µ”

Sn

Au Flash

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

Sn

30

µ”

Au

100

µ”

Sn/Pb

10

µ”

Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 53 | INTERCONNECTS

FIG. 4

Series 803...002

Double Row Low Pro le Socket

803 XX 0_ _ 10 002000

Recommended Resources

Single pulse stretching circuit b

Voice recording and playback circuit

Analog inductor circuit diagram

Electronic frostbite treatment device

KS5410 (television, video recorder and audio equipment) infrared remote control transmitter circuit

Electrical properties of ultrasonic sensors
