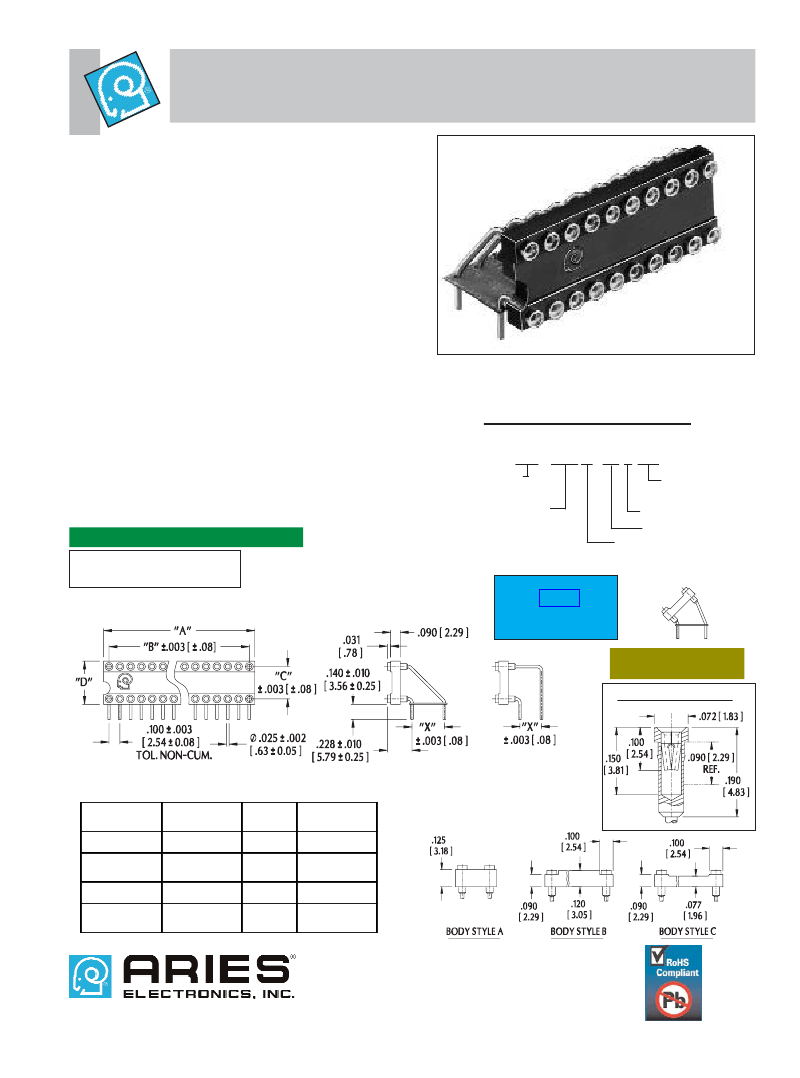

Series 800 Vertisockets
™
Horizontal Mounting with Collet Contacts
FEATURES:
• Aries offers a full line of Vertisockets
™
for DIP packaging of
LEDs, incandescent lamps, DIP switches, test points, etc. The
variations of mounting positions provide exceptional design
freedom.
• Accepts standard LEDs and incandescent displays as well as
.500 [21.70] and .600 [15.24] high large displays.
SPECIFICATIONS:
• Standard body material is black UL 94V-0 Glass-filled 4/6 Nylon.
• Spacer is fishpaper (sockets with “X”=.300 [7.62] only).
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000 ASTM-
B16-00.
• Pin body plating is either 200μ [5.07
μm]
min. 93/7 Tin/Lead per
ASTM B545 or 200μ [5.07
μm]
Tin per ASTM B545 Type 1 over
100μ [2.54
μm]
min. Nickel per SAE-AMS-QQ-N-290.
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-01.
Note: Aries specializes in custom design and production. In addition to the
• Contact plating is 30μ [.76
μm]
min. Gold per MIL-G-45204 over
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
50μ [1.27
μm]
min. Nickel per SAE-AMS-QQ-N-290.
right to change product specifications without notice.
• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150 [2.79-
3.81] in length.
ORDERING INFORMATION
• Contact current rating=3 Amps.
• Operating temperature= -67°F to 221°F [-55°C to 105°C].
XX-X82X-90CXX
• Insertion Force=180 grams/pin; Withdrawal
Optional suffix:
Force=90 grams/pin; Normal Force=140 grams/pin; (based on
No. of pins
TL=Tin/Lead
a .018 [.46] diameter test lead).
(see table)
Pin body plating
MOUNTING CONSIDERATIONS:
Row-to-row spacing:
Collet contacts
• Suggested PCB Hole Size=.035 ± .002 [.89 ± .05] dia.
282:“C”=.200 [5.08]
Display angle
82: “C”=.300 [7.62]
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
0: “X”=.100 [2.54]
482:“C”=.400 [10.16]
2: “X”=.200 [5.08]
All tolerances ± .005 [.13]
682:“C”=.600 [15.24]
3: “X”=.300 [7.62]
unless otherwise specified
“A”=NO. OF PINS PER ROW X .100 [2.54]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
90° ± 2°
Consult Data Sheet
No. 13004 for
Vertical Mounting
Vertisockets
™
.
Consult factory for
other display angles
CONTACT DETAIL
Consult factory for non-standard sizes
Centers
"C"
.200 [5.08]
.300 [7.62]
.400 [10.16]
.600 [15.24]
Dim. "D"
.300 [7.62]
.400 [10.16]
.500 [12.70]
.700 [17.78]
Body
Style
A
C
B
C
C
B
Available
Sizes
6 thru 10
6 thru 20
22 thru 40
6 thru 22
6 thru 40
42 thru 48
“X”=.100 [2.54]
“X”=.200 [5.08] (
no
(straight bend)
fishpaper
)& .300
[7.62](
with fishpaper)
.400 ctr available
in this version only
(angled bend)
13005
REV.F
http://www.arieselec.com • info@arieselec.com
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
