ROHS COMPLIANT

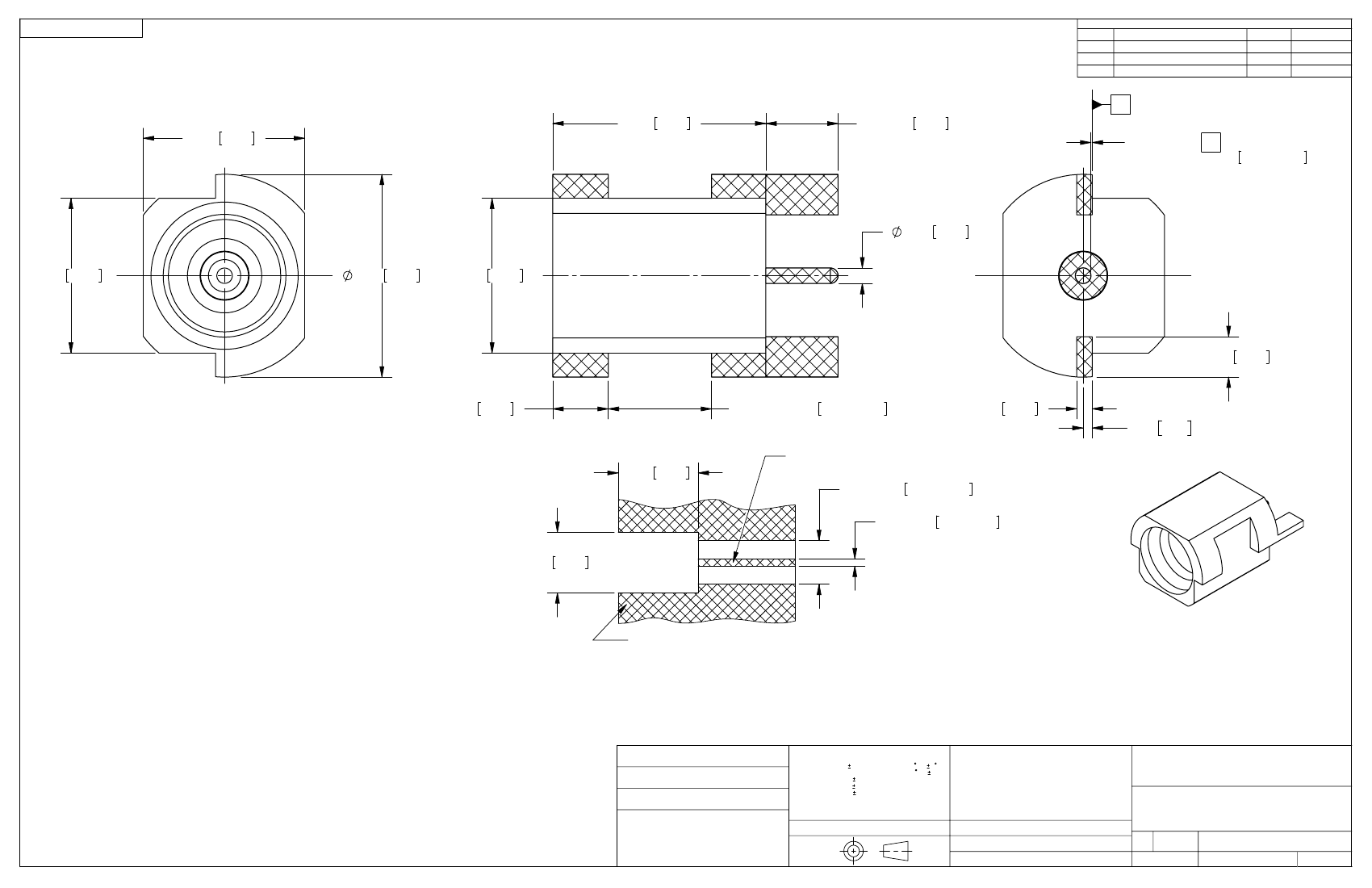

PRODUCT DATA DRAWING
.125 3.18
.165 4.19
3X .056 1.42
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 43145
02/17
GPF
A
COPLANARITY BETWEEN
SURFACE A AND CONTACT
IS .0025±.0025 0.06±0.06
.012 0.30
.120 3.05
.157 3.99
.120 3.05
2X .031 0.80
.043 1.09
2X .080±.001 2.03±0.02
TRACE
2X .012 0.30
.007 0.18
.165 4.19
.090 MAX 2.29 MAX
.015 MIN 0.38 MIN
MATERIAL:
BODY:
CONTACT:
INSULATOR:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
GROUND
RECOMMENDED FOOTPRINT
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS .76, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
.125 3.18
FINISH:
BODY &
CONTACT:
NOTES:
1. CROSS HATCHED SURFACES TO BE PRE-TINNED USING SN96 SOLDER
2. ALL DIMENSIONS APPLY PRIOR TO PRE-TINNING.
3. FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC
PCB, CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800)
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
MATERIAL:
FINISH:
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
DWV:
INSUL. RESISTANCE:
50 OHMS
DC TO 40.0 GHz
325 VRMS
5000 MEGOHMS MIN.
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .002 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
VB
02/24/17
MALE SMPM SMOOTH
BORE EDGE MOUNT
95077
GPF 02/24/17
GPF 02/24/17
SIZE CAGE CODE DWG. NO.
B
3211-60035-TD
SHEET 1 OF 1
SCALE: 16:1
