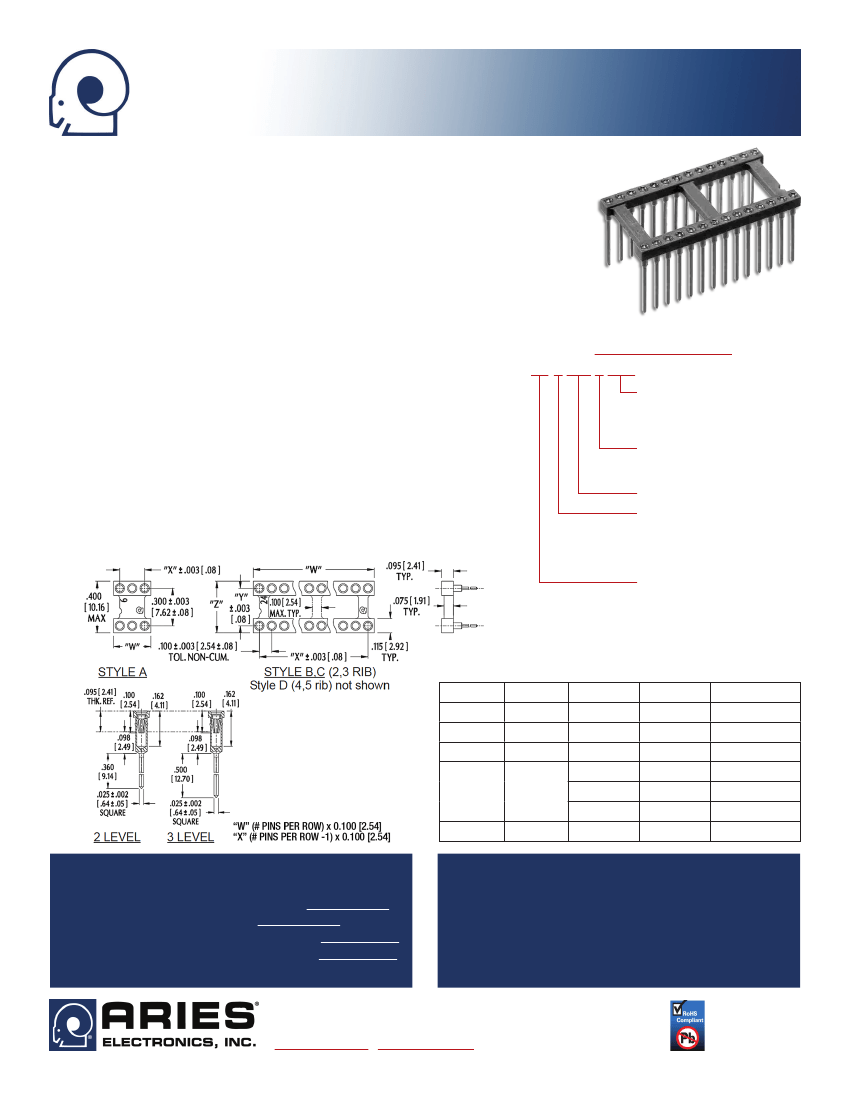

Series 508 Open Frame Socket
w/Collet Contacts & Wire Wrap Pins
FEATURES
• Open Frame allows Efficient Utilization of Board Space with Optimized Cooling
• Available 2- and 3-level Wire Wrap Pins
• Compatible with Automatic Insertion Equipment
• Side-to-side and End-to-end Stackable
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Black UL 94V-0 Glass-filled 4/6 Nylon
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
•
PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/Pb per
ASTM B545
–OR–
200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per
SAE AMS-QQ-N-290B
ORDERING INFORMATION
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
•
CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni
XX-X 508 X XXX
per SAE AMS-QQ-N-290B
Plating
•
CONTACT CURRENT RATING: 3 amps
0 = Au Collet, Sn Shell
•
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] for Sn; -67°F to
0TL = Au Collet, Sn/Pb Shell
257°F [-55°C to 125°C] for Au
1 = Au Collet & Shell
•
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
Termination
•
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
2 = 2-level Wire Wrap
•
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
3 = 3-level Wire Wrap
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.160 [2.79-4.06] long
Series
•
SUGGESTED PCB HOLE SIZE:
0.045 ±0.002 [1.14 ±0.05] dia.
Row-to-Row Spacing,
“Y” Dim.
3 = 0.300 [7.62]
4 = 0.400 [10.16]
6 = 0.600 [15.24]
9 = 0.900 [22.86]
No. of Pins
(See Table)
MOUNTING CONSIDERATIONS
Frame Style
A
B
C
D
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
OPEN FRAME COLLET SOCKET w/WIRE WRAP PINS, SEE DATA SHEET 12016
OPEN FRAME SURFACE MOUNT SOCKET, SEE DATA SHEET 12018
OPEN FRAME COLLET CAPACITOR SOCKET w/SOLDER PIN, SEE DATA SHEET 12026
OPEN FRAME COLLET CAPACITOR SOCKET w/WIRE WRAP, SEE DATA SHEET 12027
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
No. of Ribs
1
2
3
4, 5
Centers “Y”
0.300 [7.62]
0.300 [7.62]
0.400 [10.16]
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
0.900 [22.86]
Dim. “Z”
0.400 [10.16]
0.400 [10.16]
0.500 [12.70]
0.400 [10.16]
0.500 [12.70]
0.700 [17.78]
1.000 [25.40]
No. of Pins
6
8, 14, 16, 18, 20, 24
20, 22
28
24
24, 28, 32, 40, 48
50, 64
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
12017
Rev. 1.2
1 of 1
