Material
Plating
Wire Size
Wire Type
High Conductivity
Seamless Copper Tube
300 STR/FLEX
LCCX300-38DH
.44 R Ref
Electro-Tin
300 STR/FLEX
Stranded Copper:
Class G, H, I, K, M,
Locomotive
2-3/8 in.
3/8 in.
Yes, for applications up to 35kv.
Consult cable manufacturer for
voltage stress relief instructions
with applications greater than
2000 volts.
90 C
Yes
RED
.38±.04
1.39±.04
PANDUIT
PANDUIT
RED DIE P71 (18)
Wire Strip Length
Stud Size
UL Listed Wire
Connector
1.00±.02
.41±.02 DIA
(2) PLS
Color coded
barrel markings
Beveled wire entry
.95±.01
.76±.01
UL Temperature
Rating
C.S.A Certified
Wire Connector
Panduit Color Code
on Barrel
2.30±.04
Panduit Die Index No. P71
on Barrel
Alternate Industry
Die Index No. ( )
on Barrel
(18)
Wire inspection window
45°±5°
2.88 REF
.18±.01
CERTIFIED
LISTED
Wire Connector
4.07 REF
CORP.
00
REV
TINLEY PARK, ILLINOIS
6/03
DATE
SAC SAC
BY
CHK
RELEASED
DESCRIPTION
10850
ECN
LCCX300-38DH-6

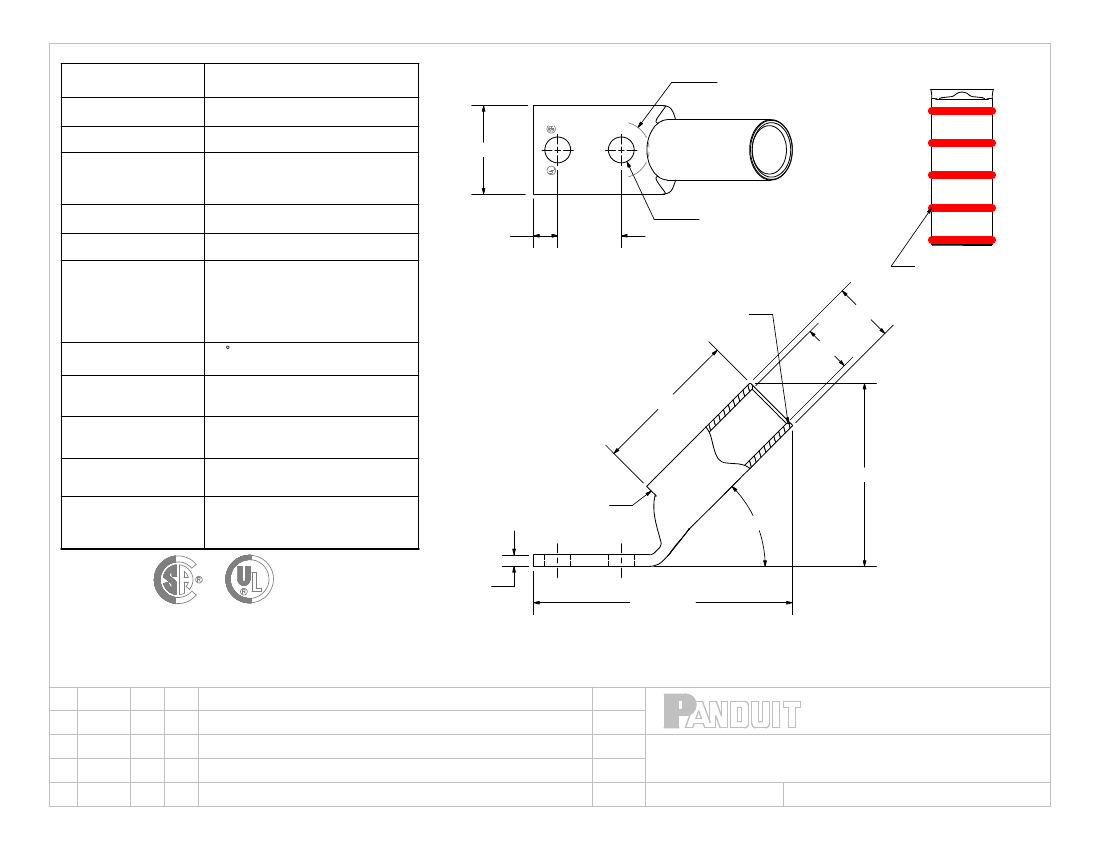

Copper Lug - Two-Hole, Long Flex Barrel with Window, 45° Angle Tongue
SCALE
N/A
DRAWING NO / CAD FILE
LCCX300-38DH-CUST
