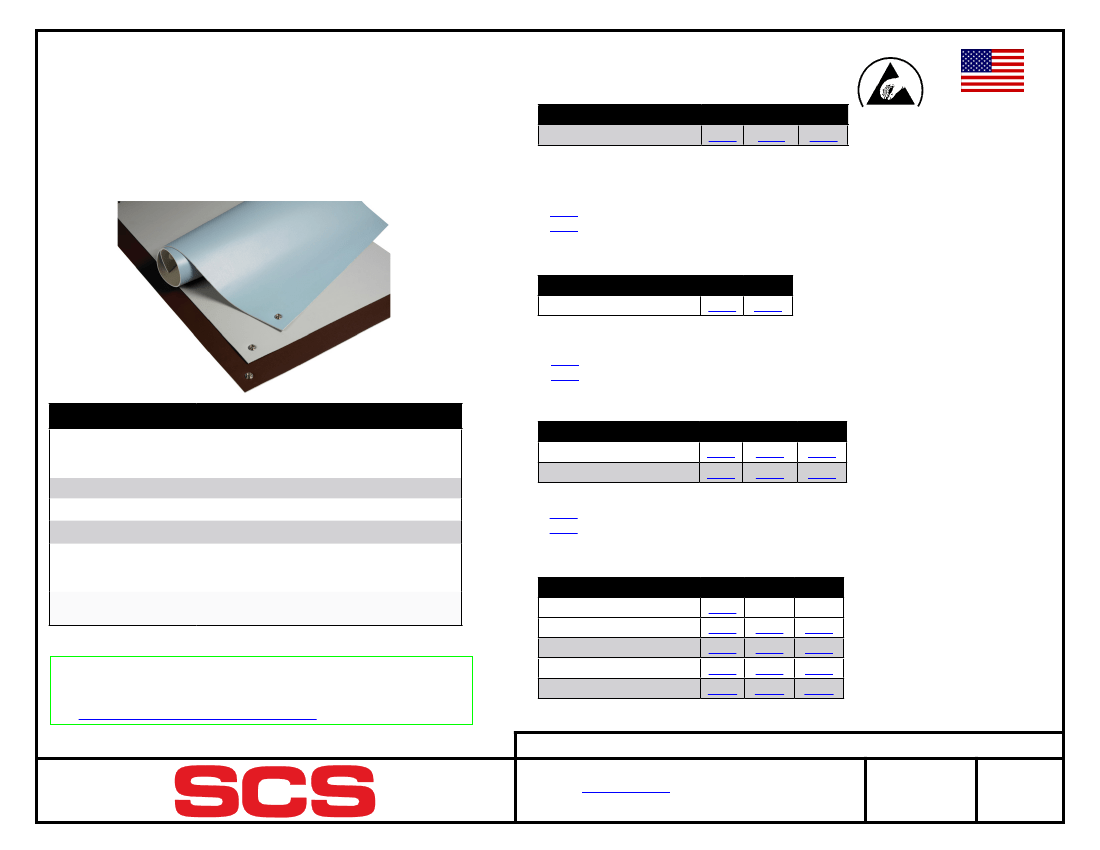

8200 Series Dissipative Vinyl Three-Layer Mats and Rolls are soft table
mats with a three-layer construction that meet ANSI/ESD S20.20 tested per
worksurface standard ANSI/ESD S4.1 and ESD TR53. The top color layer
is durable static dissipative vinyl, which has sufficiently low resistance to
discharge static-laden conductors, yet will help prevent the shorting of pins
on the backs of printed circuit boards laid on the mat. The middle layer is a
highly-conductive scrim that provides the main discharge path to ground,
and the bottom layer is static-dissipative foam, providing a durable nonskid
cushion. Compatible with Constant Monitors.
Table Mat Kit Item Numbers
Size
24" x 48" (0.6 m x 1.2 m)
Blue
8214
Brown
8211
Gray
8213
Made in the
United States of America
Table Mat Kit Includes:
1 Table Mat, size as specified
1
3048
Wrist Strap Grounding System
2
3050
Single Snap Fastener (Snaps installed on long side of mat)
Floor Mat Kit Item Numbers
Size
48" x 72" (1.2 m x 1.8 m)
Blue
8204
Gray
8203
Floor Mat Kit Includes:
1 Floor Mat, size as specified
1
3040
15' (4.6 m) Ground Cord
2
3050
Single Snap Fastener (Snaps installed on long side of mat)
Properties
Material
Typical Value
Top Layer - Static Dissipative Vinyl
Middle Layer - Highly Conductive Scrim
Bottom Layer - Static Dissipative Foam
Blue, Brown, Gray
0.140" (3.5 mm)
Table Roll Item Numbers with Hardware
Size
2' x 24' (0.6 m x 7.3 m)
4' x 24' (1.2 m x 7.3m)
Blue
8264
8254
Brown
8261
8251
Gray
8263
8253
Color*
Thickness
Hardness (top)
Resistance
Surface to Ground (Rtg)
Surface to Surface (Rtt)
Tolerance
78 Shore A
1 x 10
6
to < 1 x 10
9
ohms
1 x 10
6
to < 1 x 10
9
ohms
Width +/- 0.250"
Length +/- 0.250"
Table Roll Includes:
2
3040
15' (4.6 m) Ground Cords
2
3050
Single Snap Fastener (not installed)
Table Roll Item Numbers without Hardware
Size
2' x 40' (0.6 m x 12.2 m)
2' x 50' (0.6 m x15.2 m)
2.5' x 50' (0.8 m x 15.2 m)
3' x 50' (0.8 m x 15.2 m)
4' x 50' (1.2 m x 15.2 m)
Blue
8284
8234
8244
8274
82A4
8231
8241
8271
82A1
8233
8243
8273
82A3
Brown
Gray
*Color and texture may vary between lots and mills
RoHS 2, REACH, and Conflict Minerals Statement
None of the RoHS 2 restricted materials or REACH substances of very high concern as
of 2017/01/12, or Conflict Minerals are intentionally added in manufacturing this product.
Ref: European Union Directive 2011/65/EU and Regulation (EC) No. 1907/2006/CE.
See
SCS Warranty, Limitation of Liability and Remedies
Specifications and procedures subject to change without notice.
8200 SERIES DISSIPATIVE VINYL THREE-LAYER MATS AND ROLLS
926 JR Industrial Drive, Sanford, NC 27332
WEB SITE:
StaticControl.com
PHONE (919) 718-0000
DRAWING
NUMBER
8200 Series
May
2017
DATE
© 2017 DESCO INDUSTRIES INC.
Employee Owned
