High Voltage Board to Cable Connectors
MDF51 Series
●Simple
and secure mating with one push
Socket
Header
Lock

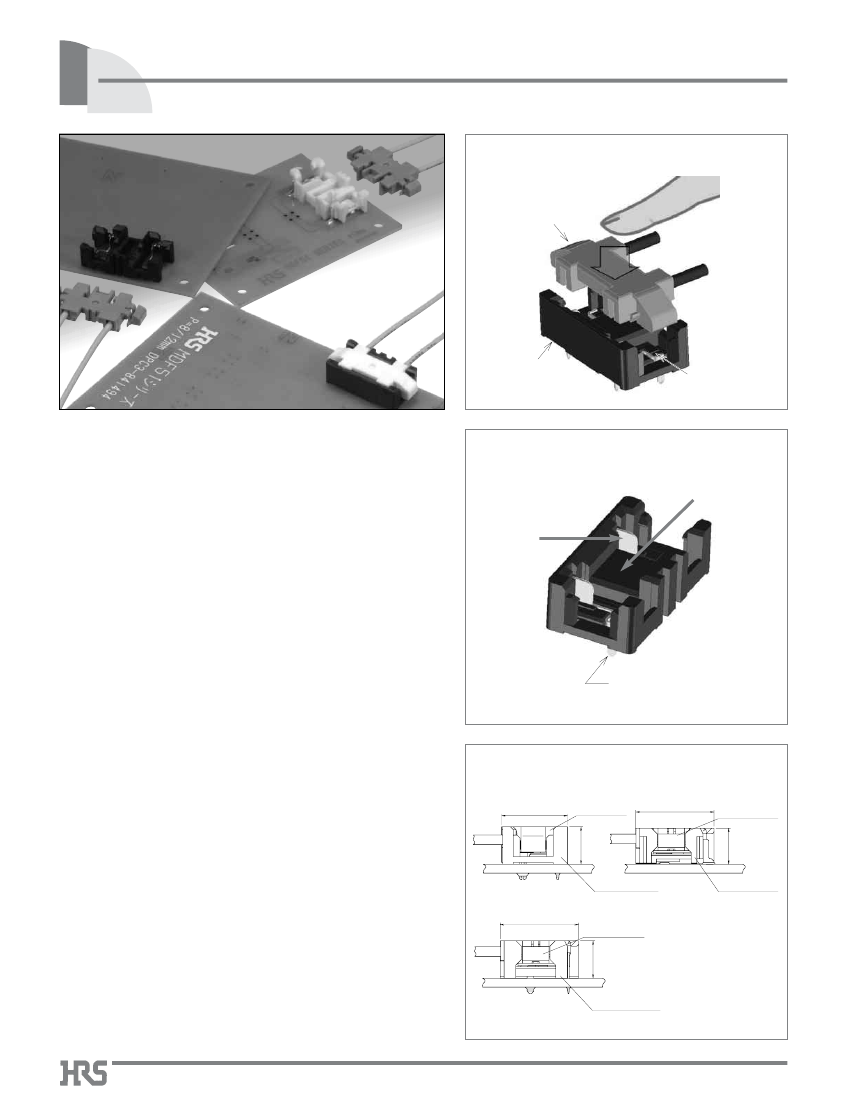

■Features
1. Easy and simple mating
Built-in locks assure correct and complete mating with a
single push on the plug.
●Secure
hold during the soldering operation
Insulator
2. Reduced space requirement
Vertical mating direction and built-in self-aligning features
eliminate the need for the extra space when mating / un-
mating.
Contacts
3. Designed for high voltage applications
Large contact pitch and the creepage distance maintain
stable and safe performance at high voltage levels.
4. Secure attachment to the board
Soldering at 4 points secure the headers to the board.
Hold-down
5. Secure hold during the soldering operation.
Through-hole termination header (12mm pitch only)
incorporates a hold-down feature to prevent dislocation
during the soldering operation.
●Reduced
space requirement
(14.1)
6. UL, C-UL, and TÜV certified (12mm pitch only)
7. RoHS compliant
All components and materials comply with the
requirements of EU Directive 2002/95/EC.
(11.9)
MDF51-2S-12C
(6.75)
MDF51SU-2S-13C
(6.5)
■Applications
(14.1)
(6.75)
MDF51K-2P-12DSA
MDF51SU-2P-13V
LCD TV backlights, FPD power supplies and other
applications requiring small high-voltage connectors.
MDF51SU-2S-13C
MDF51SY-2P-13DSA
B322
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
MDF51 Series●High Voltage Board to Cable Connectors
■
Specifications
Current rating
Ratings
Voltage rating
3000 V AC/DC
1A
Operating temperature range
Operating humidity range
Storage temperature range
Storage humidity range
-35°C to +85°C (Note 1)
RH 20% to 80%
-10°C to +60°C (Note 2)
RH 40% to 70% (Note 2)
UL, C-UL
Ratings
Current rating
Voltage rating
1A
1000V AC/DC
TÜV
1A
1000V AC/DC
■File
and recognition numbers:
UL and C-UL : E52653
TÜV
: R50085755
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
1000 Mø min.
Specification
500 V DC
5000 V AC / 1 minute
20 mV max., at 1 mA .
Conditions
No flashover or insulation breakdown
20 mø max.
No electrical discontinuity of 1 μs or longer
No damage, cracks or parts dislocation.
No electrical discontinuity of 1 μs or longer
No damage, cracks or parts dislocation.
Contact resistance: 40 mø max.,
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm,
10 cycles, 3 axis
Acceleration of 490 m/s
2
, 11 ms duration, sine half-wave,
3 cycles in each of the 3 axis
5. Shock
6. Humidity
Insulation resistance: 500 Mø min.
No damage, cracks or parts dislocation.
Contact resistance: 40 mø max.,
96 hours at of 40 ±2ç, and humidity of 90 to 95%
-55°C
→
5 to 35°C
→
85°C
→
5 to 35°C
Times: 30 min.
→
3 min.
→
2 min. to 3 min.
→
30 min.
→
2 min. to 3 min.
5 cycles
30 cycles
Reflow: At the recommended temperature profile (MDF51SU)
Flow: Solder temperature 260°C, 10 seconds (MDF51K and MDF51SY)
Manual soldering: 380°C for 3 seconds
7. Temperature cycle
Insulation resistance: 500 Mø min.
No damage, cracks or parts dislocation.
8. Durability
Contact resistance: 40 mø max.
No damage, cracks or parts dislocation.
No deformation of components affecting
performance
9. Resistance to soldering heat
Note 1. Includes temperature rise caused by current flow.
Note 2. The term "storage" refers to products stored for a long period prior to mounting and use.
The operating temperature and humidity range covers the non-conducting condition of installed connectors in storage, shipment or during
transportation.
Note 3. Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and specifications for a
specific part number shown.
■Materials/Finishes
●
Headers
Part
MDF51K
Insulator
Material
PBT
Finish
Color: Black
Color: Beige
Color: Black
Tin plated
-----------------
UL94V-0
Remarks
MDF51SU: Polyamide
MDF51SY: Polyamide
Contacts
Brass
●
Crimp socket
Part
Socket Insulator
Crimp contacts
Material
MDF51: Polyamide
MDF51SU: Polyamide
Phosphor bronze
Finish
Color: White
Color: Gray
Tin plated
Remarks
UL94V-0
-----------------
B323
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products
Series●High Voltage Board to Cable
Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
MDF51
have been discontinued, or will be discontinued soon.
Connectors
■Ordering
information
●Header
MDF 51 # –
*
P – 12 DSA
1
2
3
4
5
6
1
2
Series name : MDF51
Configuration type
K : Contact pitch 12mm, through hole
SU : Contact pitch 13mm, surface mount
SY : Contact pitch 13mm, through hole
3
4
5
6
Number of contacts : 2
Connector type
Contact pitch
Termination type
DSA : through hole, straight
V
: surface mount, straight
P: Header
12mm or 13mm

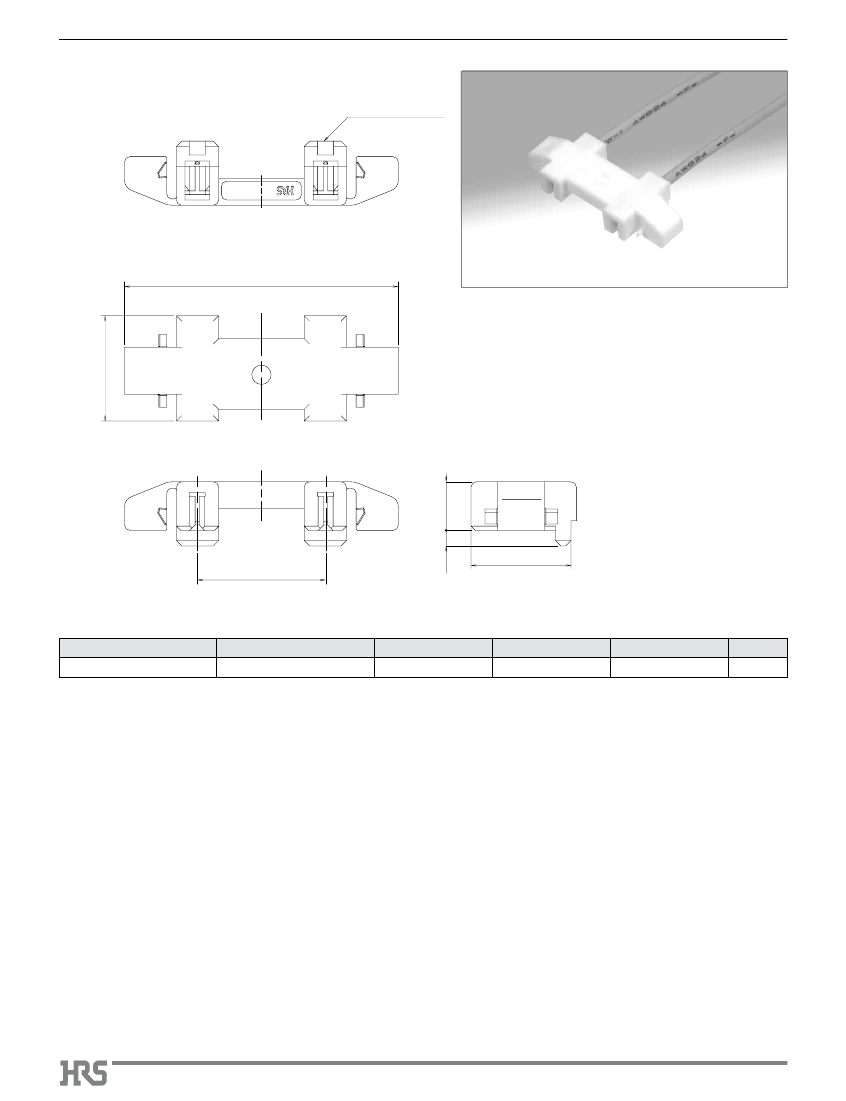

●Crimp
socket
MDF 51 # –
*
S – 12 C
1
2
3
4
5
6
1
2
Series name : MDF51
Configuration type
Blank : Contact pitch 12mm, standard
SU
: Contact pitch 13mm, standard
3
4
5
6
Number of contacts : 2
Connector type
Contact pitch
Termination
S: Crimp socket
12mm or 13mm
C: Crimp
●Contacts
MDF 51 – 24 SCF
1
2
1
Applicable conductor
24: AWG# 24
2
Packaging
SCF: Female crimp contact / reel
B324
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
MDF51 Series●High Voltage Board to Cable Connectors

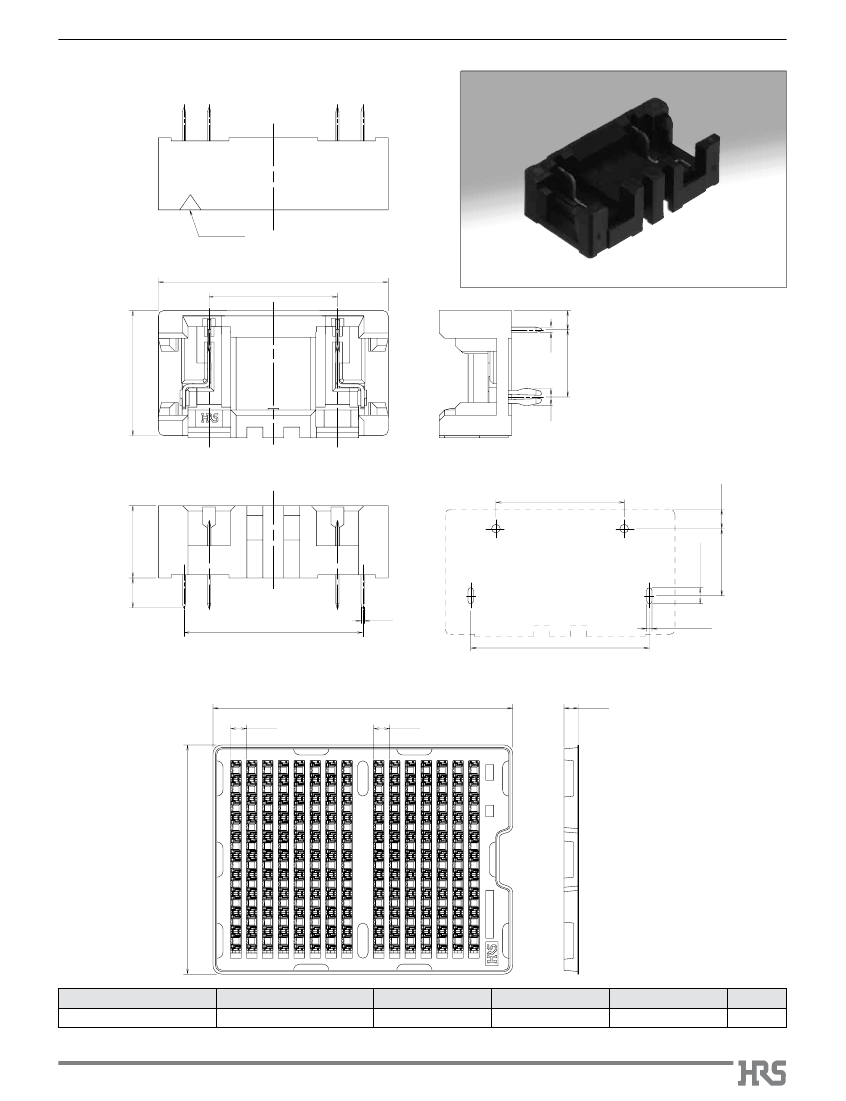

■Header,
MDF51K (Contact pitch 12mm)
●Straight,
through hole
Contact No.1
indicator
21.5
P=12
1.8
0.5
11.9
A
B
Recommended PCB mounting pattern
12±0.1
(1.8)
0.5
16.7±0.1
+0.1
0
(Thickness: 1.6mm)
6.75
1.6
6.28
2.8
t=0.3
16.7
All dimensions: mm
●
Packaging Specification
340
P=18
P=18
16.65
Part Number
MDF51K-2P-12DSA(20)
Order by number of 150.
260
CL No.
547-2017-9-20
Number of contacts
2
Insulator Color
Black
Packaging
150 pieces/ tray
6.28±0.1
1.5
+0.1
0
RoHS
YES
B325
