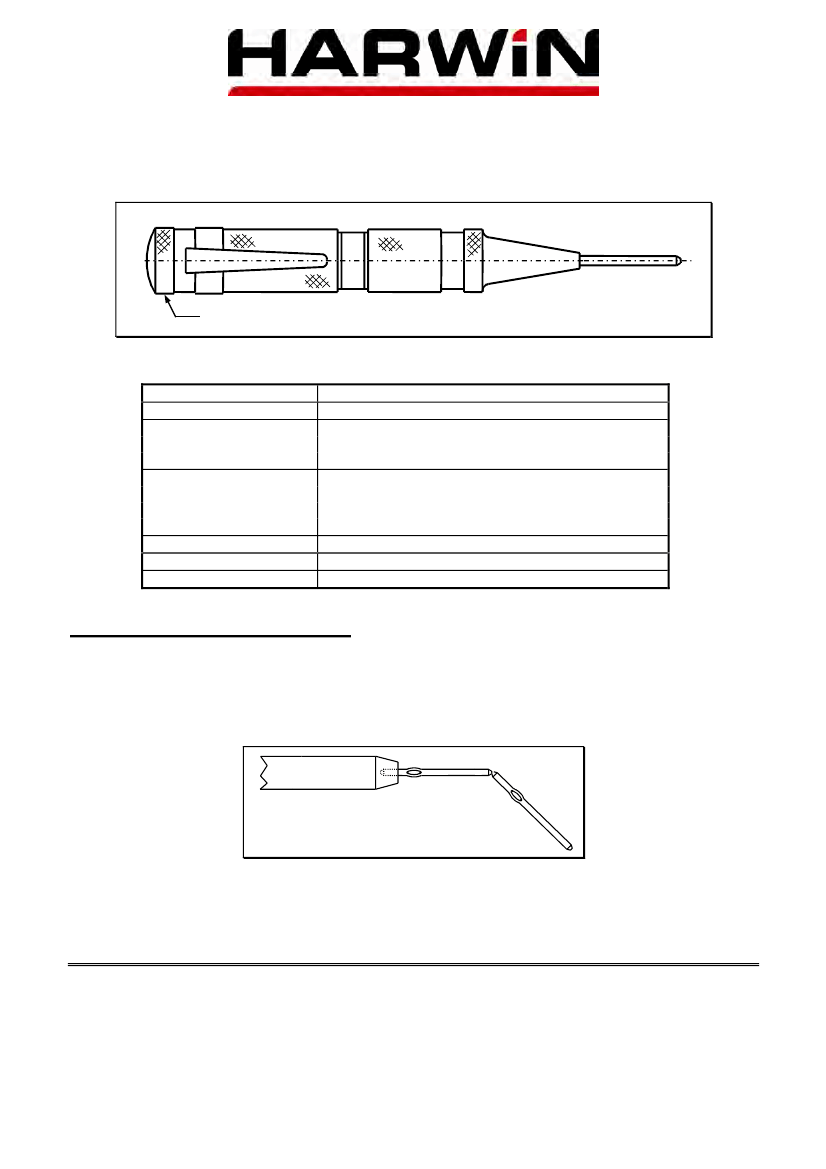

PIN INSERTION PUNCH Z1016-XX

ADJUSTER

This Insertion Tool has been designed for use with the following pins:

PUNCH No.

Z1016-30

Z1016-38

PINS

8S252F4130

8L251F4900

8S252F4938

8S252F6438

8L251F6400

8S252F6452

8S252F7752

8S252F9652

E25-4063050XX

L25-4075048XX

E20-411208040

8S252G4130

8L251G4900

8S252G4938

8S252G6438

8L251G6400

8S252G6452

8S252G7752

8S252G9652

Z1016-52

Z1016-20

Z1016-19

Z1016-31

OPERATING PROCEDURE

1.

2.

It is recommended that the adjuster is set at the lowest pressure consistent with

easy pin insertion, usually about two turns from minimum.

Insert the pins into the tool short end first, break-off any excess, leaving one pin

protruding from the tool.

3.

4.

Support the board in a suitable manner, such that the pins are inserted from the

underside of the board.

Place the pin in the appropriate hole then press the tool down.

HARWIN Inc

U.S.A.

603 893 5376

603 893 5396

mis@harwin.com

HARWIN plc

U.K.

023 9231 4545

023 9231 4590

mis@harwin.co.uk

HARWIN pte

Singapore

65 6 779 4909

65 6 779 3868

mis@harwin.com.sg

Tel:

Fax:

E-Mail:

IS-23

Issue: 3

Date: 09.03.05

C/Note: 8442

Page 1
