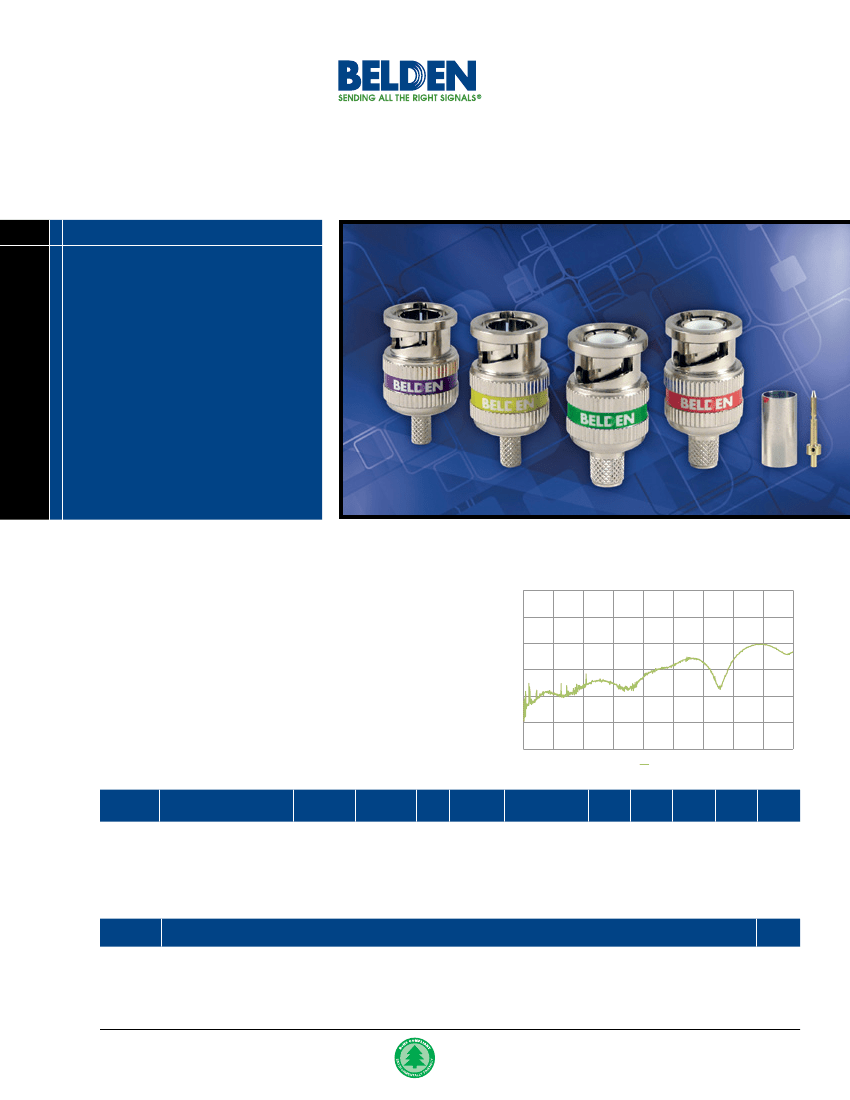

Product Specifications
3-Piece BNC Broadcast
Crimp Connector
Belden introduces the new
3-Piece HD Brilliance
®
BNC Crimp
Connector. The 3-piece connector
delivers excellent return loss
performance and quality
that exceeds expectations
of the typical 3-piece connector;
featuring a precision machined
BNC nut and extended head knurl
nut for easy grip.
•
Enhanced to fit perfectly with Belden
Brilliance® Cable for strong
and dependable signal delivery
and performance
•
Center pin is crimped in place
with easy installation tool
•
Comes with Belden’s patented extended
head knurl nut design for easy gripping
for installation
•
Excellent Return Loss through 4.5 GHz
•
Exceeds SMPTE Specifications
•
Limited Lifetime Connector
Warranty when partnered
with Belden Brilliance® Cable
•
Color coded to cable
Part
Number
1505ABHD3*
1694ABHD3*
1855ABHD3
179DTBHD3
Physical Properties
•
Brass Material
Environmental Properties
•
Temperature Rating:
-40 ºF (-40 ºC) to 140 ºF (60 ºC)
•
Corrosion: ASTM B117
Mechanical Properties
•
Durability: 500 Cycles Minimum
•
Center Contact Retention: >6 lbs.
Electrical Properties
•
Return Loss: < -20 dB - 32 dB
1 Ghz - 4.5 Ghz
•
Voltage Rating: 500V RMS
•
Insulation Resistance:
>5000 Megaohms at 100 Vdc
Connector
RL
Performance
Tested
on
1694A
Cable
0
‐10
‐20
Return
Loss
(dB)
‐30
‐40
‐50
‐60
0
500
1000
1500
Frequency
(MHz)
2000
2500
3‐Piece
3000
3500
4000
4500
Connector Description
RG59BNC HD Connector
RG6BNC HD Connector
22-24 AWG BNC HD Connector
179 Digital Truck BNC Connector
Type
3-Piece Crimp
3-Piece Crimp
3-Piece Crimp
3-Piece Crimp
Finish
Polished Nickel
Polished Nickel
Polished Nickel
Polished Nickel
Color
Band
Red
Green
Purple
Yellow
Impedence
(ohms)
75
75
75
75
Pullout Strength
72(+)
90(+)
75(+)
See Cable Spec
RL@3
GHz
-27 dB
-27 dB
-27 dB
-27 dB
RL@3.5
GHz
-27 dB
-27 dB
-27 dB
-27 dB
RL@4
GHz
-21 dB
-21 dB
-21 dB
-21 dB
RL@4.5
GHz
-23 dB
-23 dB
-23 dB
-23 dB
QTY
50
50
50
50
* These connectors can be used with a Plenum Cable
Part
Number
BB3PHCT
BB3PHCT-D
BB3PST
BB3PST-C
Tool Description
Belden Brilliance Three-Piece Hex Connector Tool
®
QTY
1
1
1
1
Replacement Die for BB3PHCT
Belden Brilliance
®
Three-Piece Strip Tool
Replacement Cassette for BB3PST
Belden Technical Support
1.800.BELDEN.1 (800.235.3361)
©
Copyright 2011, Belden Inc.
www.belden.com
