3.0 Tools Required
Scotchlok
4462
4462-FN
4462-SN
4462-SNA
™
3/8" Terminal Wrench
Tabbing shears or sheath knife
Shield Bond
Connectors
4.0 Cable Preparation
Note:
For both single and double sheath cables,
cut shield flush with sheath.

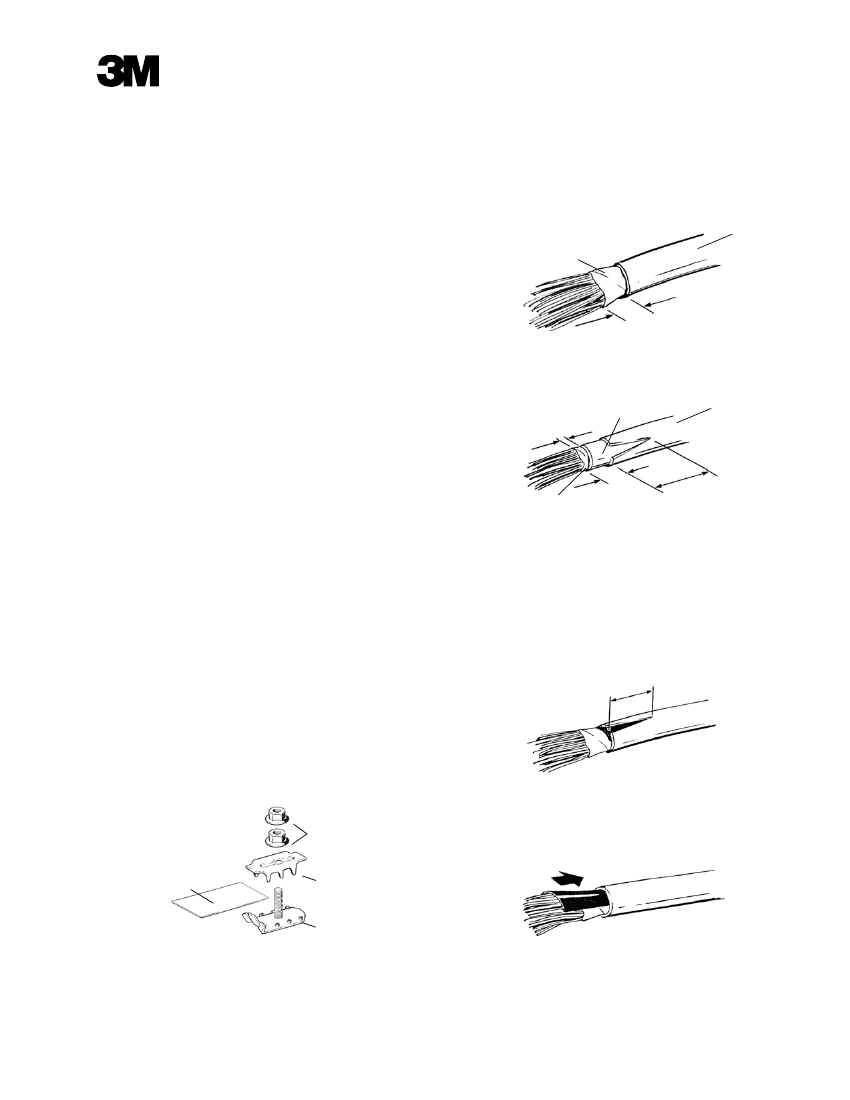

Cable Sheath
4.01 Single Sheath Cable
Core Wrap
1/2"
(13 mm)
4.02 Double Sheath Cable
Inner Sheath
1/8"
(3 mm)
Outer Sheath
May 2008
78-8135-4337-4-B
Core Wrap
1/2"
(13 mm)
1"
(25 mm) slit
1.0 General
The 3M Scotchlok Shield Bond Connectors 4462,
4462-FN, 4462-SN and 4462-SNA are designed to
make a stable and low resistance electrical connection
between the shield of a communications cable and a
conductor such as a strap, bar, wire or braid. The 4462
connector includes standard Whiz-Lock
®
nuts. The
4462-FN connector includes flanged nuts. The 4462-
SN connector has a longer stud and the nuts have been
deepened. The 4462-SNA connector has the longer
stud, deepened nuts and an insulating shoe.
™
™
Note:
On cables less than 3/4" (19 mm) in
diameter, cut a 1 1/2" (38 mm) slit in the
sheath opposite connector location. Then
complete procedure.
1 1/2"
(38 mm) slit
2.0 Components
2 Flanged Nuts
(4462 has Whiz-Lock
®
Nuts)
Insulating Shoe
(4462-SNA only)
4.03 When using the 4462-SNA connector on single
sheath cable, insert the insulating shoe between
the core wrap and shield.
Top
Base
Note:
Visually inspect all components. If any
component is missing or appears damaged,
do not install and call 3M customer service at
1-800-426-8688 for a replacement product.

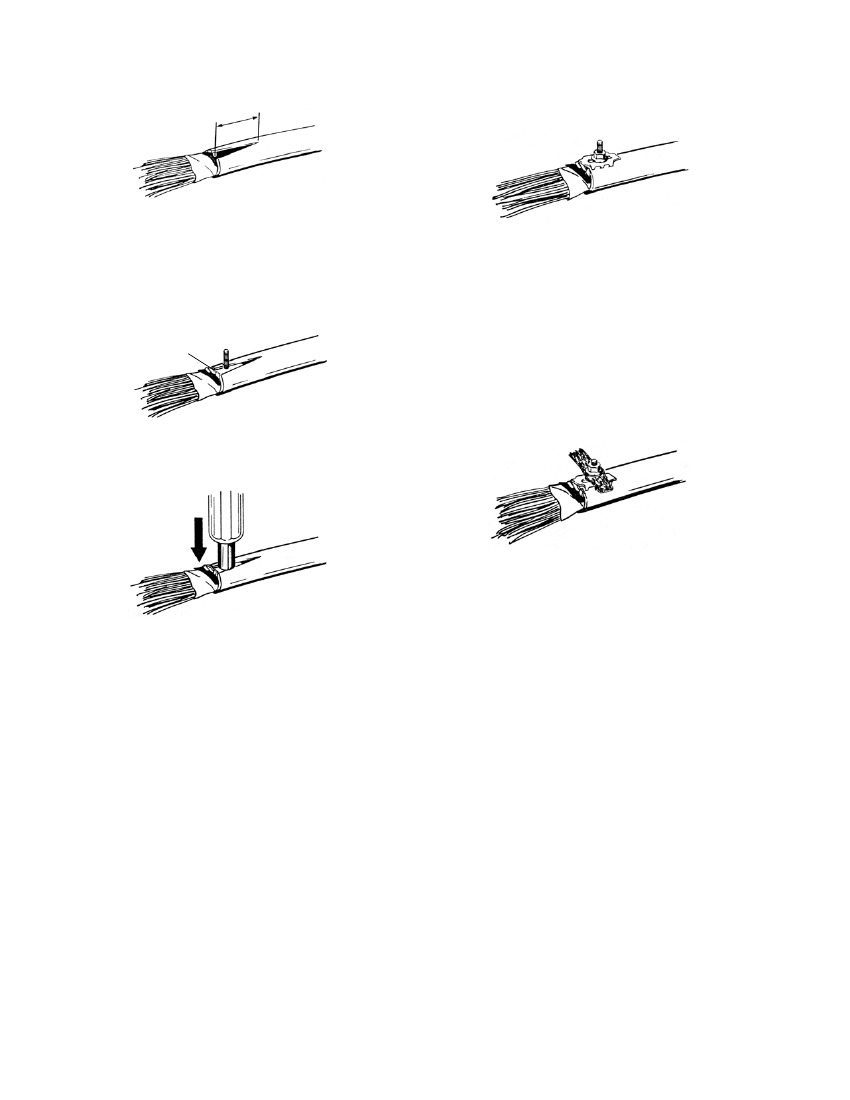

4.04 Make a 1" (25 mm) slit in the outer sheath and
shield. Lift corners for base insertion.
1 1/2"
(38 mm) slit
5.03 Place connector top over stud and tighten
firmly with securing nut. Torque nut to 40-50
in-lbs (5.2±0.6 kgm) with company approved
tool.
5.0 Installation
5.01 Insert connector base between shield and
insulating shoe or core wrap; inner sheath for
double sheath cable, until stops meet outer
sheath.
Stops
Note:
Note:
Tail of base must contact connector top.
Use a company approved tool to achieve the
torque requirements specified.
5.04 Place bond conductor (strap, bar, wire, or braid)
over stud and secure in place with nut supplied.
Torque nut to 40-50 in-lbs (5.2±0.6 kgm) with
company approved tool.
5.02 Place terminal wrench over stud and push down
to bend corners and pull slit together.
3M and Scotchlok are trademarks of 3M Company.
Whiz-Lock is a registered trademark of Mac-Lean Fogg Company.
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable,
but the accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for
your intended application. You assume all risks and liability associated with such use. Any statements related to the product which are not
contained in 3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless
expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO
OTHER WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option,
to replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not be
liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the
legal theory asserted.
3
Communication Markets Division
3M Telecommunications
6801 River Place Blvd.
Austin, TX 78726-9000
1-800-426-8688
www.3MTelecommunications.com
Please Recycle. Printed in USA.
© 3M 2008. All Rights Reserved.
78-8135-4337-4-B
