N O W T H E R E ’ S A B E T T E R W AY
TO MAKE A BETTER SPLICE.

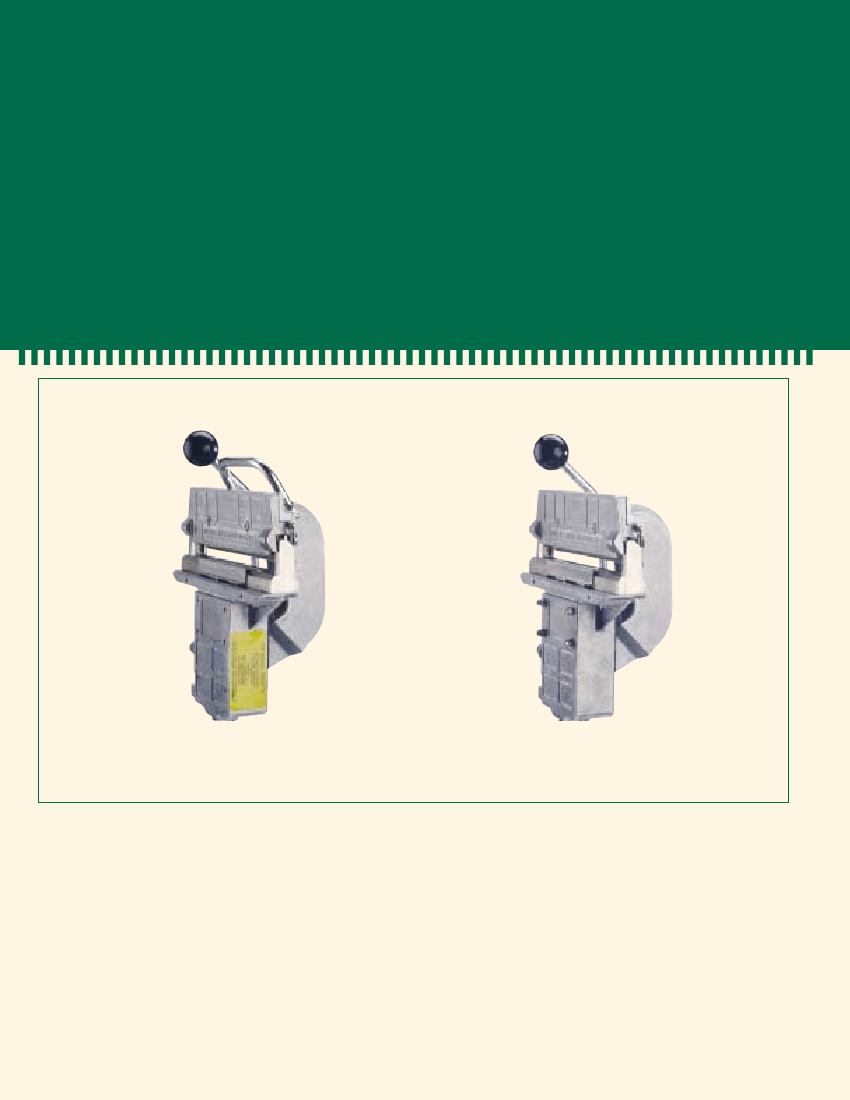

The 3M
™
710 Splicing Rig (left) improves on the 3M
™
710 Unipresser Tool (right) with new features for splice performance,
product ruggedness and user productivity.

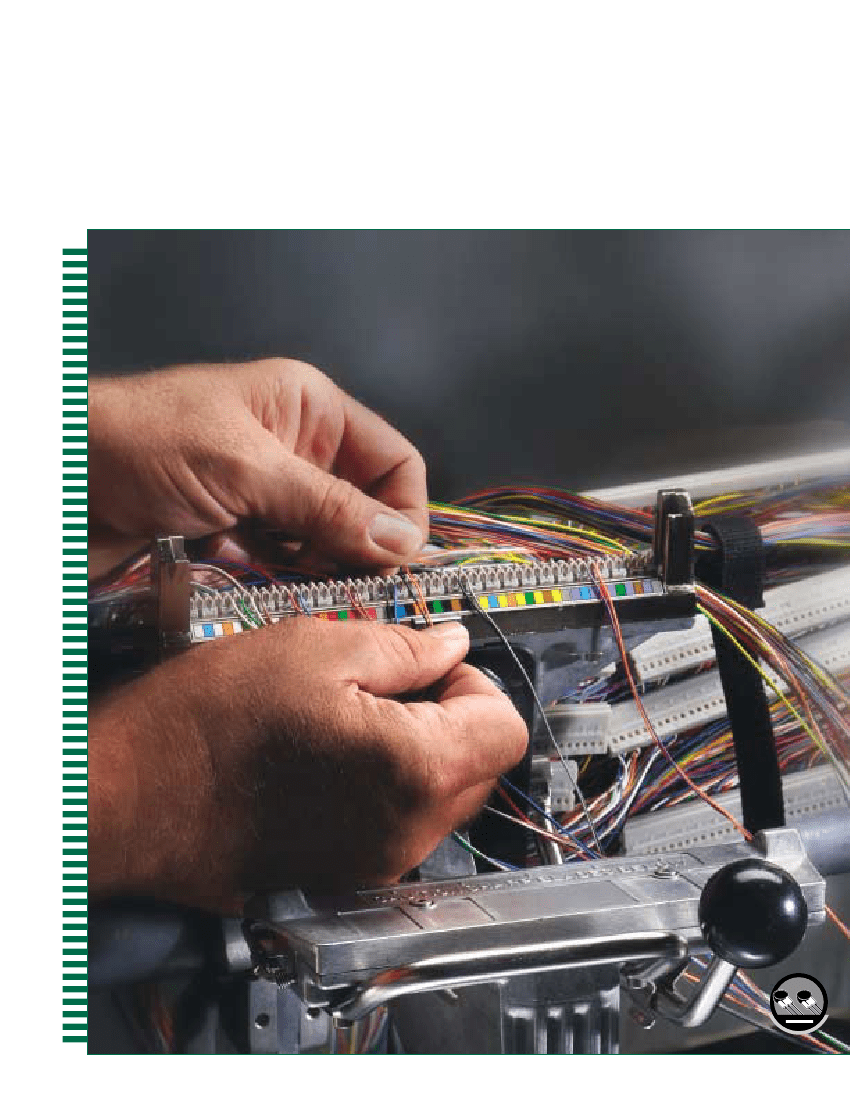

When it comes to copper cable, good splices are
absolutely critical to reliable connections—especially
with the unprecedented demand that DSL and other
advanced technologies exert on networks today. And
there’s no better tool for a secure, high-integrity splice
than the 3M 710 Splicing Rig. Based on a ruggedized
redesign of the 3M 710 Unipresser Tool, the 3M 710
Splicing Rig is a factory-calibrated, low-maintenance
tool that makes it fast and easy to create a good splice
every time.
IT’S BETTER
T H I S W AY.

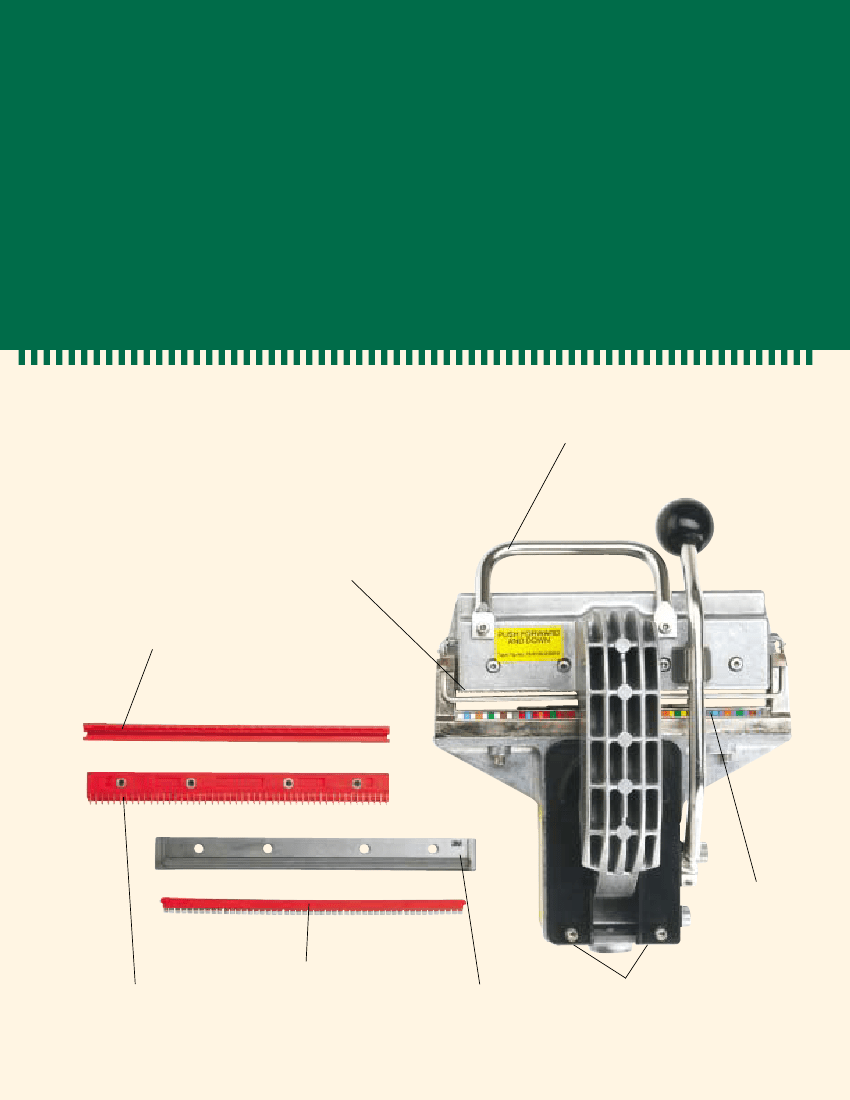

Ergonomic handle for consistent
crimping and easy handling/storage
Cutting blades in the tool instead of
in the connector module
Bridge module support helps
ensure proper wire insertion
and cut-off location
Color-coded for easy
pair identification
Stuffer teeth designed for
better wire insertion
Two-piece cut-off blade
designed to facilitate
straight, consistent cuts
Blade encased in a
protective metal holder
Factory-calibrated eliminating
the need for field adjustments
Outstanding splice performance,
time after time.
trim
Every part of the 3M
™
710 Splicing Rig is designed for
consistent, reliable splices. The bridge module support
optimally locates the module to help ensure proper wire
insertion and cut-off location. The stuffer assembly features a
new stuffer tooth design that also aids in wire insertion. The
ergonomic handle helps the operator push forward and down
to create a consistent, high-quality crimp. And the new two-
piece blade features a metal blade holder that keeps the blade
from bowing and flexing when a cut is made, thus enabling a
more consistent cut-off.
A rugged, long-lasting splicing tool.
A new tool housing protects the 710 splicing rig in the field,
reducing many of the effects of rough handling—including
calibration problems. In addition, the double-duty handle can
be used to hang the rig for easy storage or transport, providing
additional protection.

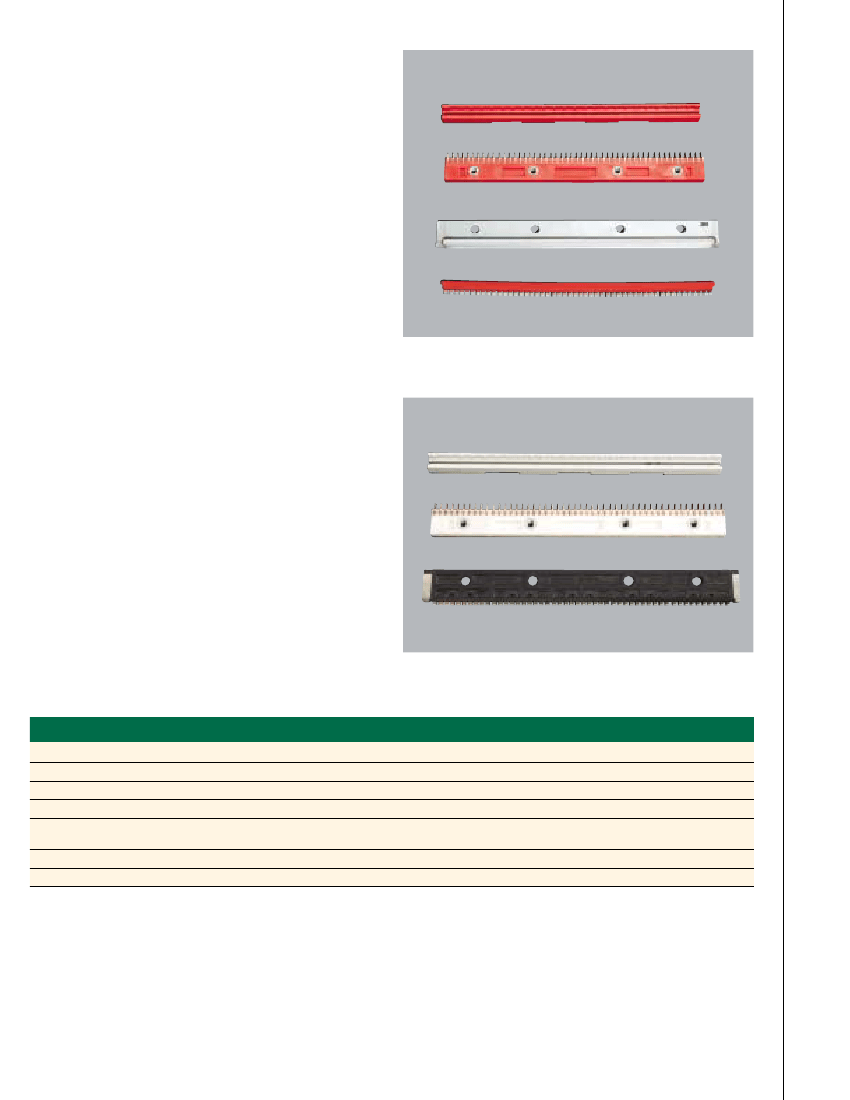

The 3M
™
710 Splicing Rig features an improved red stuffer tooth
design, a redesigned bridge module support and a two-piece blade
with a metal blade holder. The older versions are featured below.
Easy to use and low-maintenance.
The 710 splicing rig allows operators to work more
productively. It’s color-coded for quick and accurate pair
identification, needs no wire retention guides to hold wires in
place during splicing, and includes a conductor group holder
that makes it easy to keep cables organized. In addition, it’s
quickly interchangeable for different splicing types—straight,
half-tap and bridge. The 710 splicing rig is also completely
hand-operated, with no hydraulic equipment required.
The tool is factory-calibrated to ensure precision and is
designed to eliminate the need for field calibration.
3M
™
710 Splicing Rig Features
Feature
Bridge module support
Red stuffer assembly
Ergonomic handle
Two-piece blade design with
separate blade holder
Conductor group holder
Color coding
Advantage
Optimally locates the bridge module
Improved stuffer tooth design
Easier to push forward and down when crimping
Prevents blade flex to enable more consistent
cut-off location
Keeps cables organized during splicing
Pair identification at a glance
Benefit
Helps ensure proper wire insertion and cut-off location
More consistent wire insertion
High-quality crimp
High-quality splice
Less time spent on keeping cables in order
Increased productivity
trim
Part of the 3M
™
710 Splicing System.
The 710 splicing modules have been used worldwide for
more than 25 years to create high quality splices in copper
conductor cable. The 3M 710 Splicing System includes
splicing modules (including half-tap, straight and bridge
connectors), tools, supplies and replacement parts.
Used for splicing 22 to 26 AWG conductors, the 3M
™
710
Modules contain an IDC (Insulation Displacement Connection)
technology designed to provide a gas-tight connection. The
modules are available either dry or filled, use only a minimum
amount of metal component parts and can easily be reopened
for maintenance without loss of customer service.

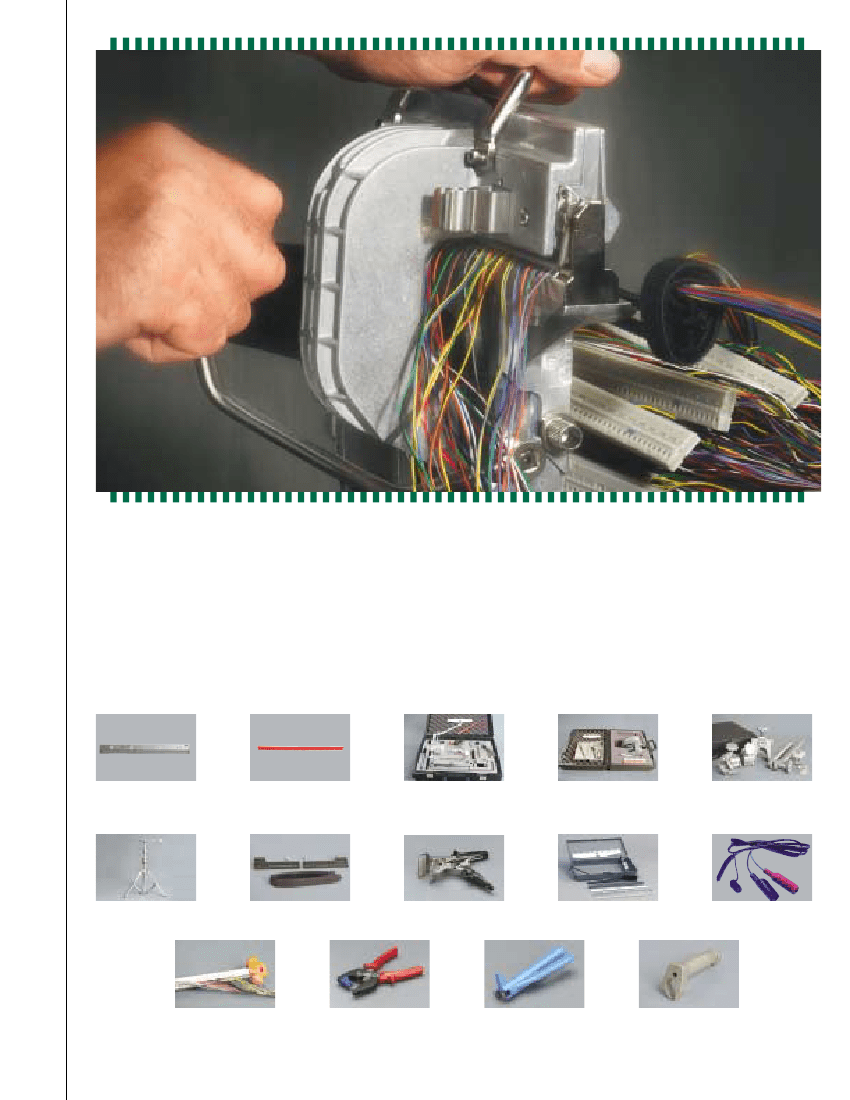

3M
™
710 Splicing Rig Tools
3M710-AP105-25-SH
Metal Blade Holder Tool
(Blade not included)
3M710-AP105-25S
Cutter Blade
(5 blades per pkg)
3M710-HTK05A
Hand Presser Tool
Kit, 5-pair
3M710-UTK25A
Splicing Rig Kit,
25-pair
3M710-TMK-10A
Tool Mounting Kit
3M710-TPK10
Tripod Kit
3M710 Group
Holder Kit
3M710-BSP10-L
Bridge to Splice Presser
3M710-UMK-25A
Maintenance Kit
3M710-AP121
Test Leads
3M710-CCT10
Conductor Wire
Cut-off Tool
3M710-ICT10
Insertion Cutting
Tool
3M710-CRT10
Cap Removal Tool
3M710-BRT10A
Bridge Removal
Tool
