BB170 –
Plug-in Solderless BreadBoards

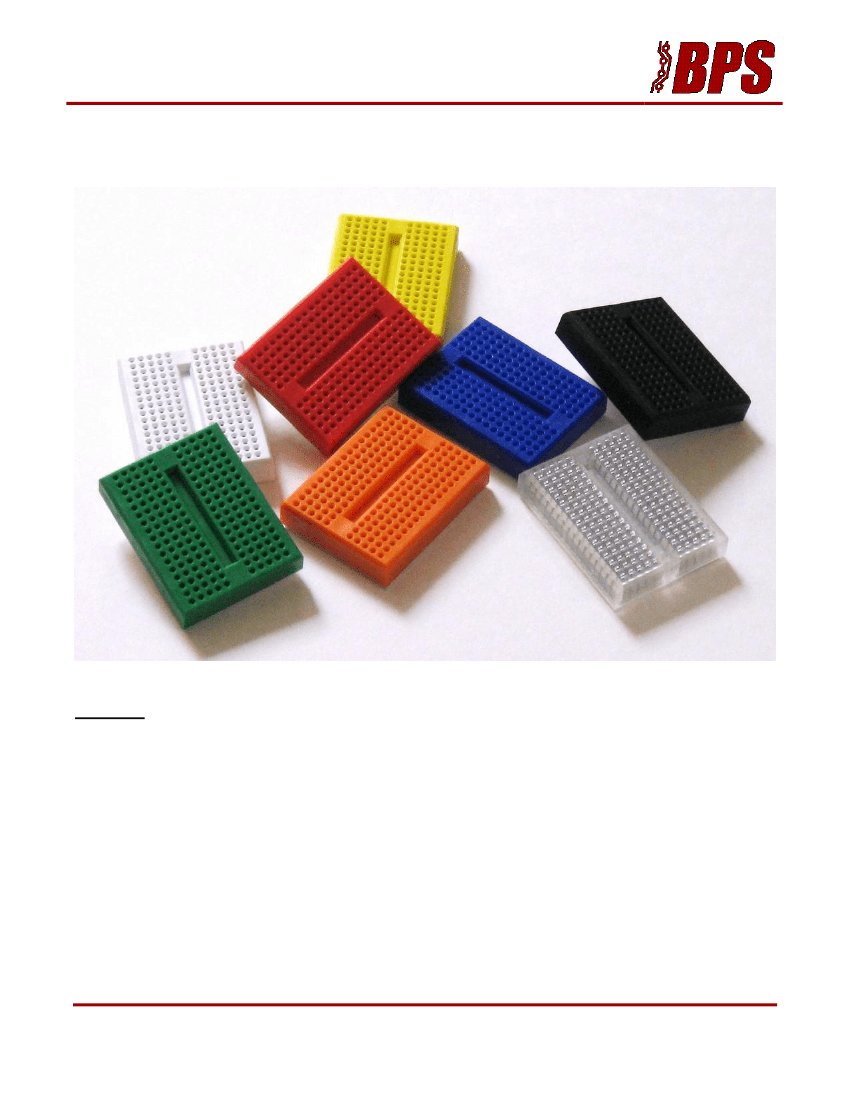

170 tie point solderless “plug-in” breadboards provide a quick way to build
and test circuits for experimentation or when learning electronics.
Features
170 tie-point breadboard, available in 8 colors
Double sided tape and 2 mounting screws provided
Small size allows it to be mounted in small spaces, such as on Arduino
protoshields
Good for quick projects or add-on circuits.
POM plastic housing for color breadboards, ABS plastic for transparent model.
Size: 1.8 x 1.4 x 0.4in (45.7 x 35.6 x 9.4mm)
BusBoard Prototype Systems
www.BusBoard.com
sales@busboard.com
BPS-MAR-(BB170)-001 Rev 4.00
BB-170 Solderless Plug-in BreadBoards
Solderless BreadBoard Specifications
BB170 Body Material:
POM Plastic or ABS Plastic (transparent model)
Hole Pitch/Style:
0.1" (2.54 mm), Round Wire Holes
Spring Clip Contact:
Phosphor Bronze with Plated Nickel Finish
Contact Life:
50,000 insertions
Rating:
36 Volts, 2 Amps Max
(Multiple contacts should not be used at maximum current due to heating).
Insertion Wire Size:
21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
Backing:
Peelable adhesive tape for attaching to a surface.
Two mounting screws provided.
Size:
1.8 x 1.4 x 0.4in (45.7 x 35.6 x 9.4mm)
All BPS BreadBoards are Lead-Free and
RoHS Compliant.
Order BPS Part#:
BB170-BK
BB170-BL
BB170-GR
BB170-OR
BB170-RD
BB170-TP
BB170-WH
BB170-YW
BB170-C
Black
Blue
Green
Orange
Red
Transparent
White
Yellow
Random Color
Solderless BreadBoard FAQ
Q: What circuit frequencies can I use with a plug-in solderless breadboard?
A: Due to large stray capacitance (from 2-25pF per contact point), the inductance of connections, and a
relatively high and not very reproducible contact resistance, solderless breadboards are limited to operate at
relatively low frequencies, usually less than 10 MHz, depending on the nature of the circuit. The relatively
high contact resistance can also be a problem for some DC and very low frequency circuits.
Source http://en.wikipedia.org/wiki/Breadboard
Higher frequency operation may be possible in some cases, depending upon the circuit requirements.
Note: Solderable PC BreadBoards, such as the BPS BR1, SB300, and SB400 will provide lower stray capacitance
and lower connection resistance which may allow higher frequency operation for some circuits.
For circuits sensitive to small changes in values, component adjustments may be needed when the circuit is
moved from a plug-in breadboard to a Solderable PC BreadBoard, due to these small differences.
Q: Can I plug DIL or SIL connector headers into the breadboard?
A: Yes. The square pin of a standard 0.1” spacing header is typically 0.025 inches wide. This is within the
0.016 to 0.028 inch wire insertion size range recommended for the breadboard.
BusBoard Prototype Systems
www.BusBoard.com
sales@busboard.com
BPS-MAR-(BB170)-001 Rev 4.00
Solderless BreadBoard NSFAQ
Q: Who invented the solderless breadboard?
A: US Patent #203938 was awarded to Ronald J. Portugal of EI Instruments Inc. in 1971.
Q: Why is phosphorus added to the bronze used in the contacts?
A: Phosphor bronze is an alloy of copper with 3.5 to 10% of tin and a significant phosphorus content of up to
1%. The phosphorus is added as deoxidizing agent during melting.
These alloys are notable for their toughness, strength, low coefficient of friction, and fine grain. The
phosphorus also improves the fluidity of the molten metal and thereby improves the castability, and improves
mechanical properties by cleaning up the grain boundaries.
Source http://en.wikipedia.org/wiki/Phosphor_bronze
BULK BREADBOARDS AVAILABLE IN CASES OF 500
BB170 White Part #: BB170-WHx500
BB170 Transparent Part #: BB170-TPx500
BB170 Black Part #: BB170-BKx500
BB170 Blue Part #: BB170-BLx500
BB170 Green Part #: BB170-GRx500
BB170 Orange Part #: BB170-ORx500
BB170 Red Part #: BB170-RDx500
BB170 Yellow Part #: BB170-YWx500
