8819-1-06-3-07-W-R-42-S: DescriptionCircular Connector, 7 Contact(s), Plastic, Female, Plug; CategoryThe connector The connector; File Size5MB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

8819-1-06-3-07-W-R-42-S Overview

Circular Connector, 7 Contact(s), Plastic, Female, Plug

8819-1-06-3-07-W-R-42-S Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Other features	SEAL MATERIAL: ELASTOMER, CONTACT MATERIAL: COPPER, PRESSURE RATE: 40 BARS
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact completed and terminated	COPPER
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	8819
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	WATERPROOF
Shell material	PLASTIC
Housing size	3
Total number of contacts	7

Preview

Download Datasheet

View All

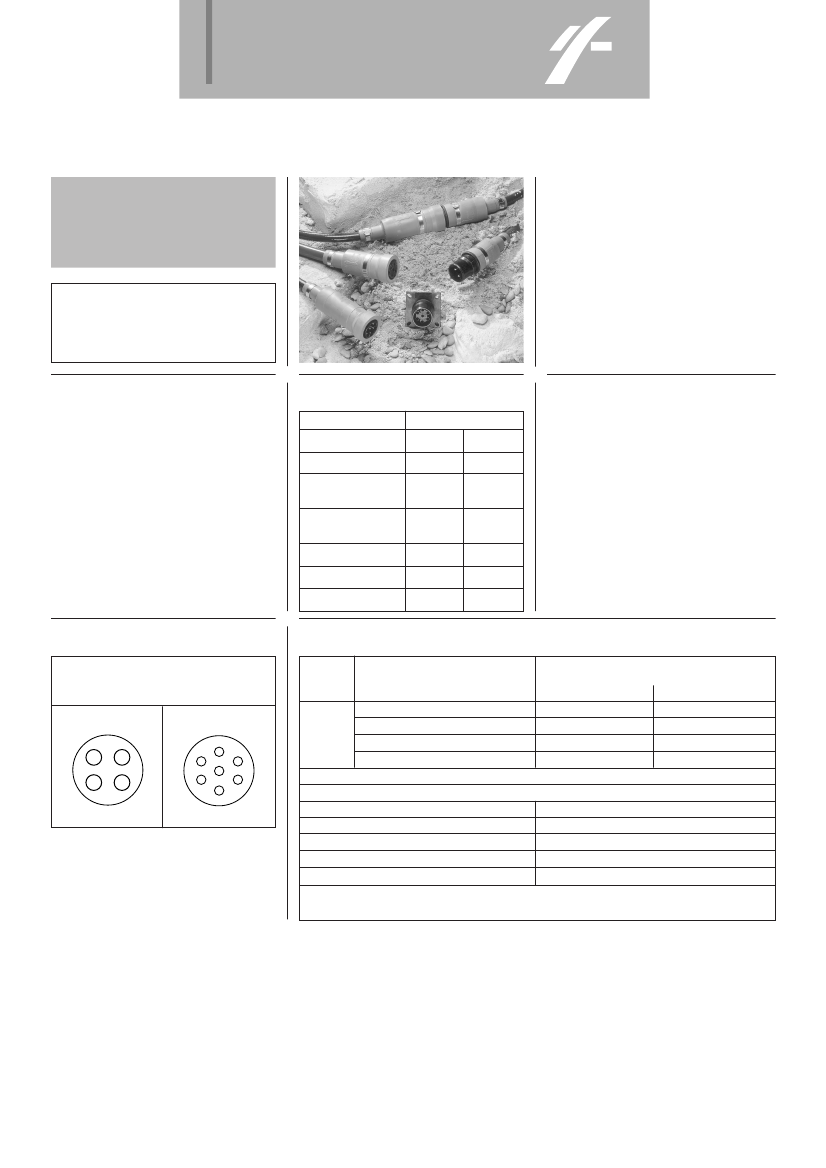

JUPITER

8819 Series

Description

Push-pull waterproof and plastic

connectors

Removable contacts

A high sealing level down to 400 m under

water

Applications

Industrial applications under water

immersion or continuous spray

Standards

Characteristics

Mechanical

Shell and cable clamp

- plastic material

Sealing boot : elastomer (epdm)

Contact : copper alloy

Endurance

20000 cycles

Service pressure (open face or mated

connectors) : 40 bars

Electrical

Characteristics

Number of contacts

Gauge

Max current

(connector)

Max current

(per contact)

Conductor size

Operating voltage

Test voltage

Shell size 3

4

8

4 x 32 A

43A

6

2

750 V

7

12

7 x 13 A

23A

4

2

750 V

Climatic

Temperature range :

- Air : - 40°C + 85°C

- Seawater : - 4°C to + 85°C

Protection class : IP68

2500 Vrms 2500 Vrms

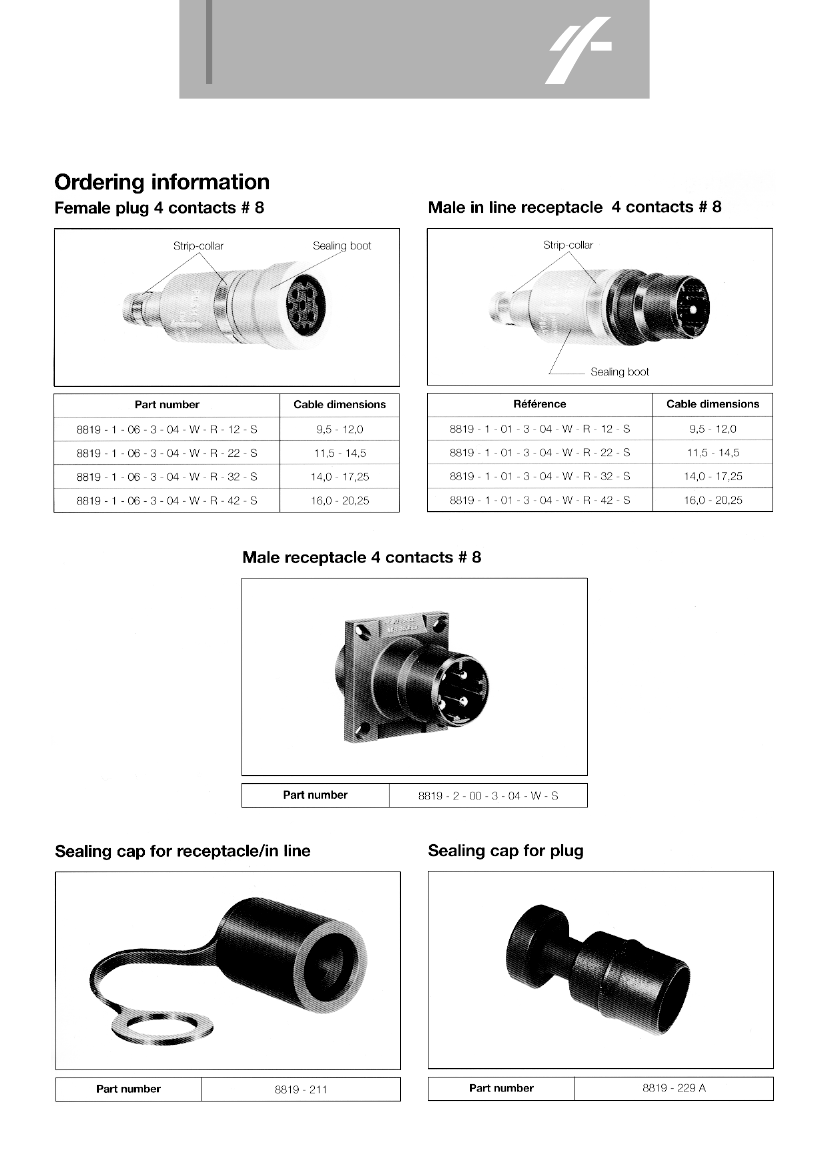

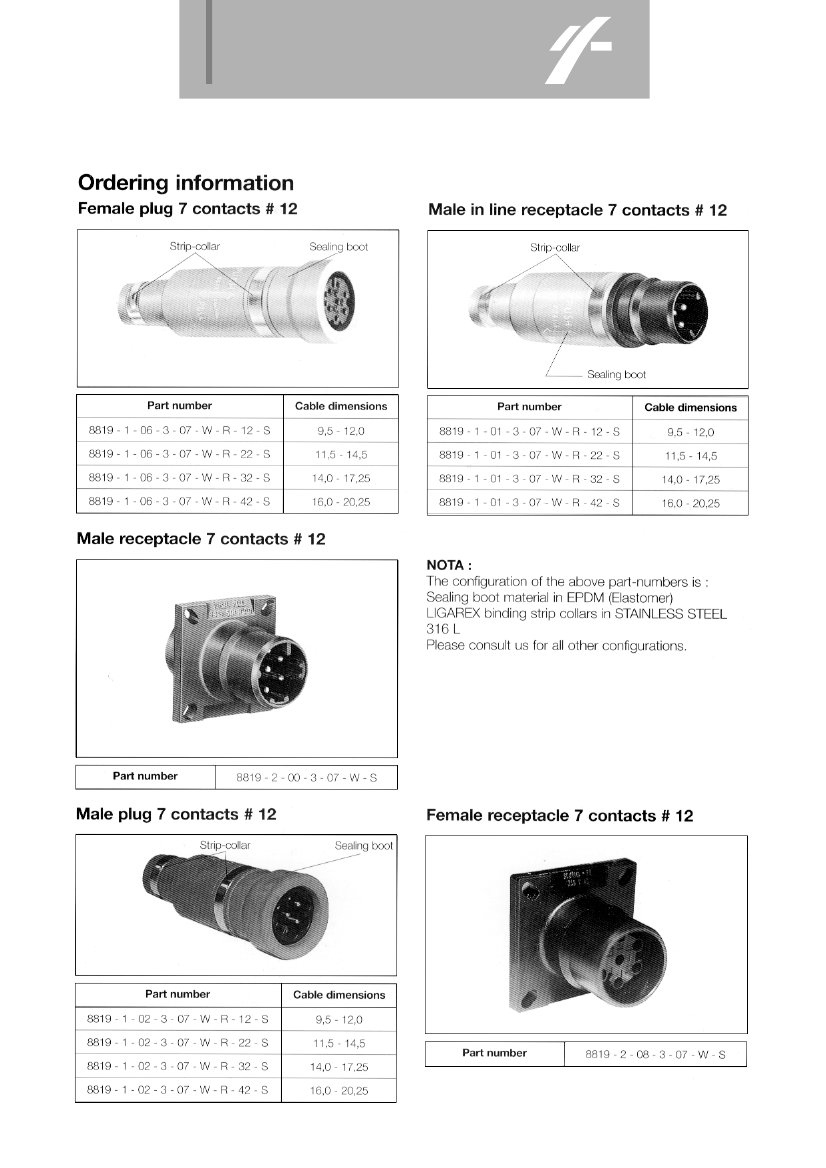

Contact layouts

Shell size 3

(or equivalent shell size 24 according

to MIL.C 5015)

04 Contact layout

07 Contact layout

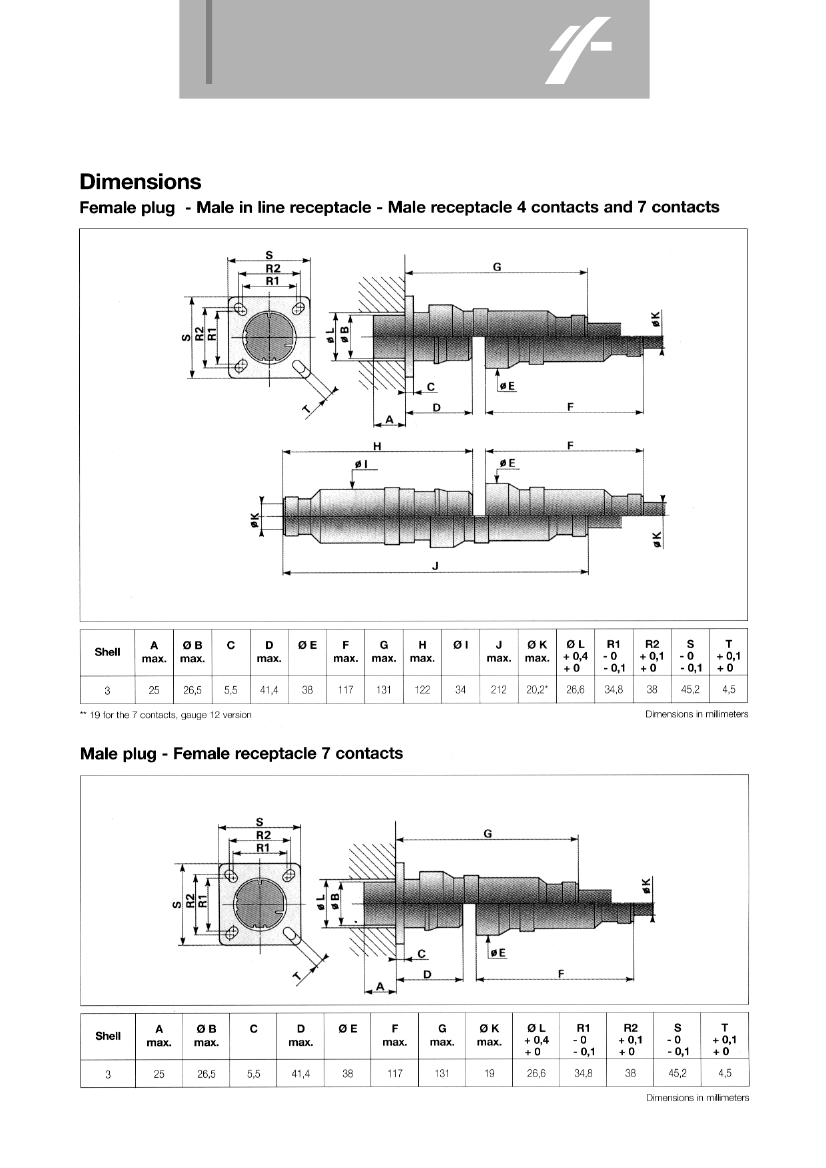

Dimensions of round cables

Shell

Dimension

Code for

round cable

1

2

3

4

* 19 for 7 contacts

Contact dimensions

8

3 x 1,5 - 4 x 1,5

2

3 x 2,5

2

- 3 x 4

2

- 4 x 2,5

2

3x6

2

-4x4

2

4x6

2

Cable dimensions

(in millimeters)

min.

9,50

11,50

14,00

16,00

max.

12,00

14,50

17,50

20,25*

3

4

8

7

12

—

5 x 1,5

2

5 x 2,5

2

- 7 x 1,5

2

5 x 4

2

- 7 x 2,5

2

The above mm 2 sections are applicable for cable H07RNF - A07RNF

For all other types of cable, please contact us
