33TS3004S-88B

Description
Modular Connectors / Ethernet Connectors RJ45 8P8C LO PROFILE SHEILDED JACK
CategoryThe connector    The connector
File Size236KB,1 Pages
ManufacturerCONEC
Websitehttp://www.conec.com
Environmental Compliance
Download Datasheet Parametric View All

33TS3004S-88B Online Shopping

Suppliers Part Number Price MOQ In stock
33TS3004S-88B - - View Buy Now

33TS3004S-88B Overview

Modular Connectors / Ethernet Connectors RJ45 8P8C LO PROFILE SHEILDED JACK

33TS3004S-88B Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Board mount optionsSPLIT BOARD LOCK
body width0.463 inch
subject depth0.734 inch
body length0.619 inch
Body/casing typeJACK
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Contact styleTELCOM, MODULAR
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of ports1
PCB contact patternSTAGGERED
Plating thickness6u inch
GuidelineUL
reliabilityCOMMERCIAL
Termination typeSOLDER
Total number of contacts8
Base Number Matches1

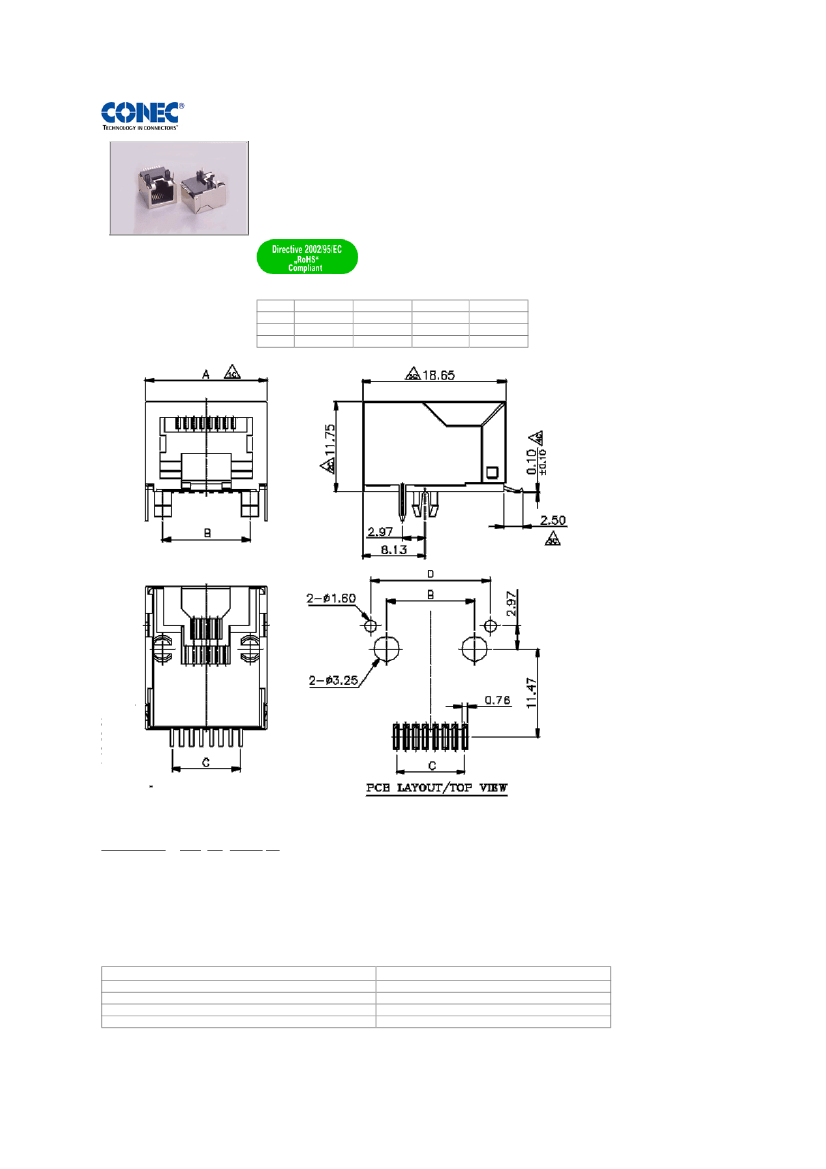

Very Low Profile PCB Jack (Side Entry,Shielded W/Tab
SMT)
Materials
Housing: Nyloy 66 with glass filled UL94V-0 Black
Contacts: 0.35mm thickness alloy, gold plating over nickel in contact area
Tin Plating over nickel in solder area
Pin
6
8
10
A
13.56
15.74
15.74
B
10.16
11.43
11.43
C
6.35
8.89
11.43
D
13.57
15.54
15.54
Order Information--------------------------------------------------------------------
33TS3004S - 88
1
2
3
B SMT 1
4
5
1. Series No.
33TS3004S
2. No. Of Contacts
88:8P8C
1010:10P10C
3. Gold Plating
B: 6µ''
For other plating options
contact factory
4. Terminal Version
SMT type
5. Packaging
1: Packed in tray
2: Tape & reel request
Order Information
33TS3004S-88BSMT1
33TS3004S-88BSMT2
33TS3004S-10BSMT1
33TS3004S-10BSMT2
Order Number
33TS3004S-880001
33TS3004S-880002
33TS3004S-101001
33TS3004S-101002
