39543-1207 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 39543-1207

39543-1207: DescriptionFixed Terminal Blocks 5.0MM EUROBLOCK PC 4 K PC 45 BLK 10A 7CKT; CategoryThe connector; File Size37KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39543-1207 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39543-1207	-	-	View	Buy Now

39543-1207 Overview

Fixed Terminal Blocks 5.0MM EUROBLOCK PC 4 K PC 45 BLK 10A 7CKT

39543-1207 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	Fixed Terminal Blocks
RoHS	Details
Number of Positions	7 Position
Pitch	5 mm
Current Rating	10 A
Voltage Rating	300 V
Wire Gauge Range	24 AWG to 14 AWG
Mounting Angle	45 deg
Product	Fixed Terminal Blocks
Factory Pack Quantity	400
Wire Gauge Max	14 AWG
Wire Gauge Min	24 AWG

Preview

Download Datasheet

View All

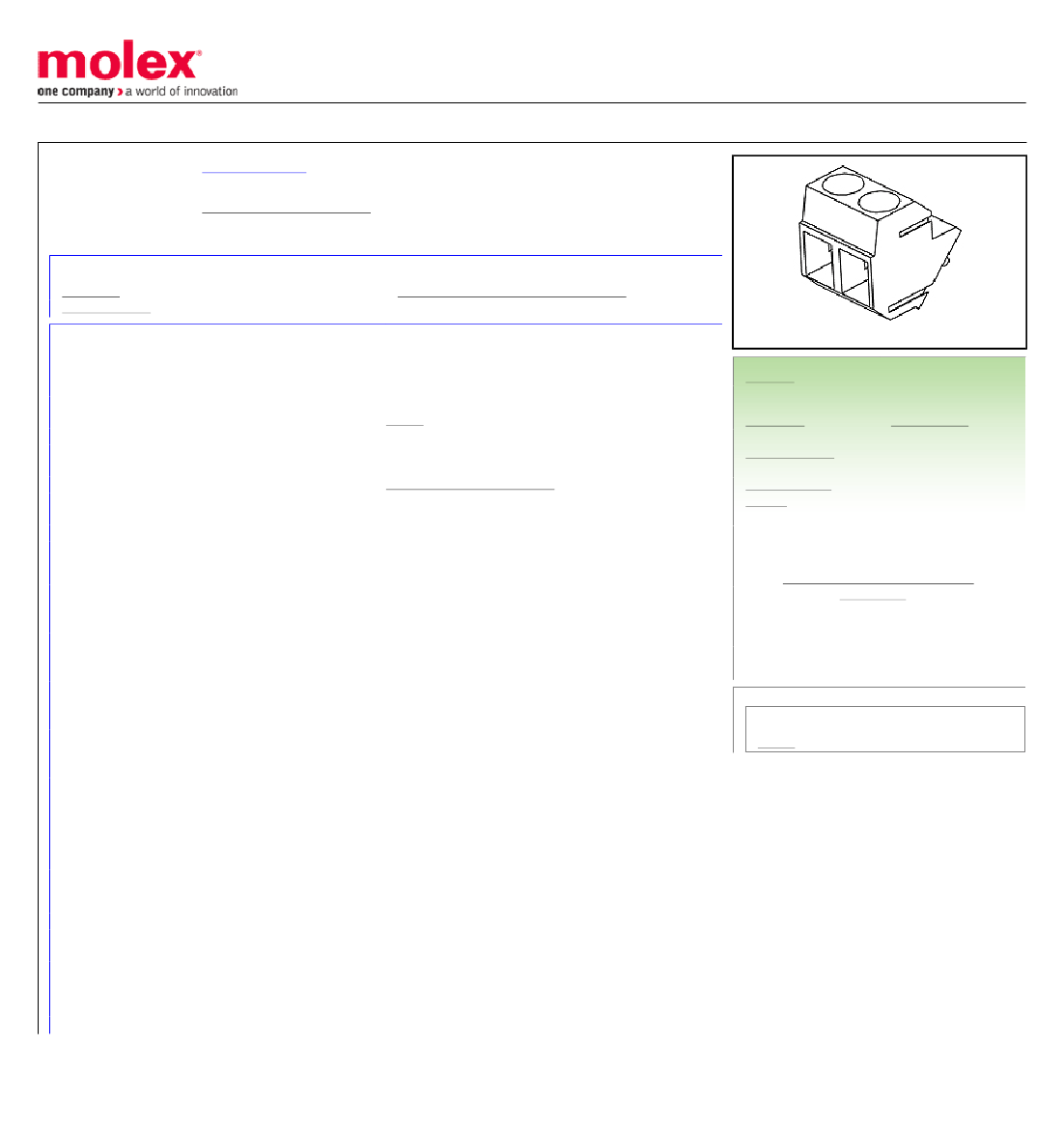

This document was generated on 10/11/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0395431207

Active

Eurostyle™ Terminal Blocks

5.00mm Pitch Eurostyle 45° Wire Entry Fixed Mount PCB Terminal Block, with Screw

Pressure Clamp, with Standard Imprinting, 7 Circuits

Documents:

3D Model

Drawing (PDF)

Agency Certification

General

Product Family

Series

Application

Comments

Component Type

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

PC Tail Length

PCB Thickness - Recommended

Panel Mount

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Duration at Max. Process Temperature (seconds)

Lead-freeProcess Capability

Max. Cycles at Max. Process Temperature

Process Temperature max. C

Material Info

Reference - Drawing Numbers

Sales Drawing

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E48521

Terminal Blocks

39543

N/A

with Standard Imprinting

One Piece

Eurostyle™ Terminal Blocks

ESE, Eurostyle Fixed Mount

Euro Block

822350539234

45° Angle

None

45° Angle

3.00mm

2.00mm

5.00mm

N/A

-40°C to +105°C

14, 16, 18, 20, 22, 24

0.20-2.08

10.0A

300V

005

WAVE

135

260

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Not Relevant

Not Reviewed

Search Parts in this Series

39543 Series

SD-39543-001

This document was generated on 10/11/2017
