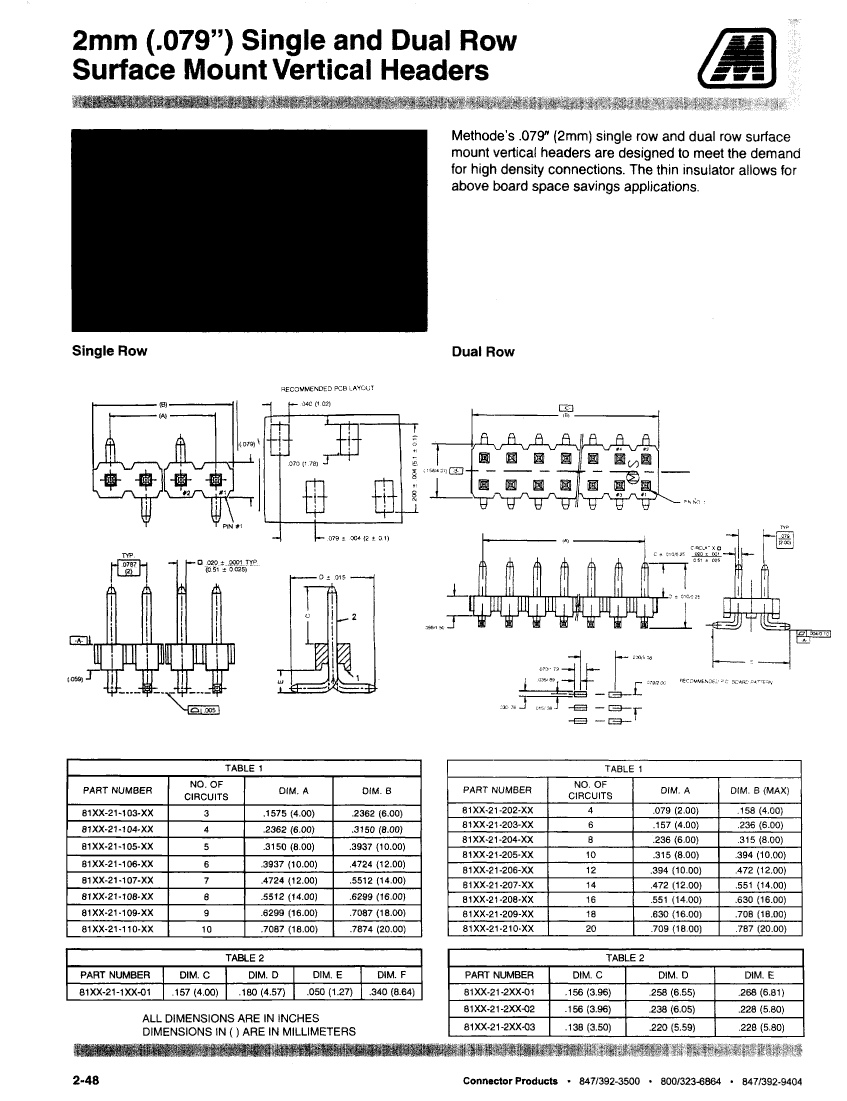

Download Datasheet Parametric View All

814L-21-209-02 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

Parameter Name	Attribute value
Reach Compliance Code	unknow
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	81
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
UL Flammability Code	94V-0
Base Number Matches	1
