380-013
EMI/RFI Non-Environmental Backshell
with Strain Relief

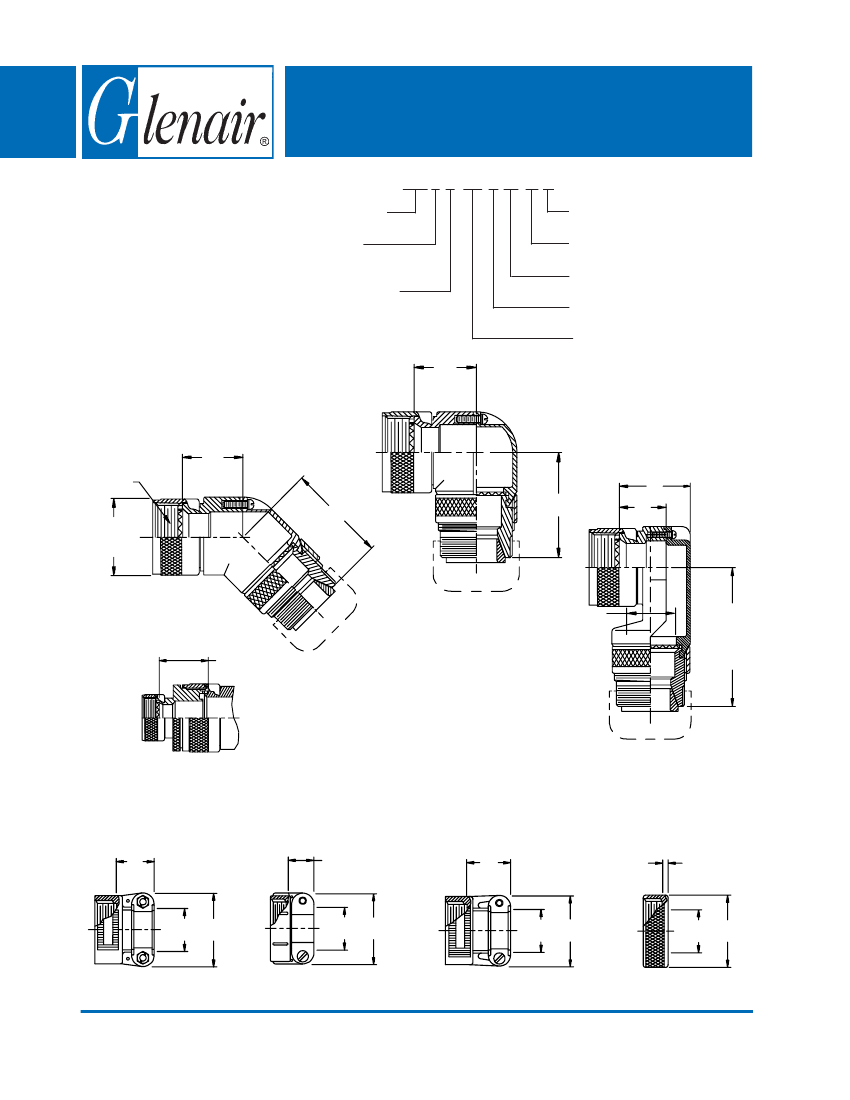

Type D - Rotatable Coupling - Split Shell
38
CONNECTOR
DESIGNATORS
380 F D 013 M 24 12 A
Product Series
Connector
Designator
Angle and Profile
C = Ultra-Low Split 90°
D = Split 90°
F = Split 45°
G
(Table III)
Strain Relief Style (H, A, M, D)
Cable Entry (Table X, XI)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
TYPE D INDIVIDUAL
OR OVERALL
SHIELD TERMINATION
A Thread
(Table I)
E
(Table III)
F (Table III)
H (Table III)
C Typ.
(Table I)
L
(Table III)
J
(Table III)
Split 45°
.88 (22.4) Max
Split 90°
Max
Wire
Bundle
(Table
III,
Note 1)
K
(Table
III)
STYLE 2
(See Note 1)
STYLE H
Heavy Duty
(Table X)
T
Ultra Low-Profile
Split 90°
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 74
with Strain Relief
Type D - Rotatable Coupling - Split Shell
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: DIMENSIONS
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
E
Max
.440 (11.2)
.500 (12.7)
.560 (14.2)
.620 (15.7)
.680 (17.3)
.750 (19.1)
.820 (20.8)
.880 (22.4)
.940 (23.9)
F
Max
1.730 (43.9)
1.785 (45.3)
1.855 (47.1)
1.887 (47.9)
1.987 (50.5)
2.045 (51.9)
2.106 (53.5)
2.167 (55.0)
2.225 (56.5)
G
Max
.680 (17.3)
.750 (19.1)
.810 (20.6)
.870 (22.1)
.930 (23.6)
1.000 (25.4)
1.060 (26.9)
1.120 (28.4)
1.180 (30.0)
H
Max
1.670 (42.4)
1.725 (43.8)
1.795 (45.6)
1.827 (46.4)
1.927 (48.9)
1.985 (50.4)
2.046 (52.0)
2.107 (53.5)
2.165 (55.0)
J
Max
.340 (8.6)
.270 (6.9)
.270 (6.9)
.280 (7.1)
.420 (10.7)
.640 (16.3)
.640 (16.3)
.540 (13.7)
.540 (13.7)
K
Max
1.920 (48.8)
2.080 (52.8)
2.080 (52.8)
2.150 (54.6)
2.200 (55.9)
2.230 (56.6)
2.230 (56.6)
2.380 (60.5)
2.380 (60.5)
L
Function C Max
Max
Wire Bundle
.681 (17.3)
.250 (6.4)
.731 (18.6)
.375 (9.5)
.731 (18.6)
.375 (9.5)
.831 (21.1)
.500 (12.7)
.981 (24.9)
.625 (15.9)
1.181 (30.0)
.625 (15.9)
1.181 (30.0)
.625 (15.9)
1.181 (30.0)
.750 (19.1)
1.181 (30.0)
.750 (19.1)
TABLE X: CABLE ENTRY
Cable Range
V
Dash
T
Max
No.
Max
Min
Max
.957 (24.3)
04
.780 (19.8)
.125 (3.2) .312 (7.9)
06
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
08
.350 (8.9) .625 (15.9)
10
.780 (19.8) 1.332 (33.8)
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
12
.625 (15.9) .937 (23.8)
16
.905 (23.0) 1.770 (45.0)
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
24
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
TABLE XI: CABLE ENTRY
Dash
W
Z
Y
X
No.
Max
Max
Max
Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7)
* Not available in Style M clamp.
1. When maximum cable entry (page 21)
is exceeded, Style 2 will be supplied
(not available in Function C). Dimen-
sions E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are indicated
in parentheses.
3. Cable range is
defined as the
Cable Range
accommodations
Max
Min **
range for the wire
.250 (6.4)
.156 (4.0)
bundle or cable.
.312 (7.9)
.188 (4.8)
Dimensions
.438 (11.1)
.281 (7.1)
shown are not
.562 (14.3)
.344 (8.7)
intended for
.625 (15.9)
.375 (9.5)
inspection
.750 (19.1)
.438 (11.1)
criteria.
.938 (23.8)
.562 (14.3)
4. Angular function
.750 (19.1) 1.250 (31.8)
"C", low-profile
.781 (19.8) 1.375 (34.9)
split elbow, not
.969 (24.6) 1.625 (41.3)
available with "S"
1.125 (28.6) 1.875 (47.6)
connector
1.469 (37.3) 2.375 (60.3)
designator.
** Not Applicable Style D
