15-45-3326: DescriptionHeaders & Wire Housings CGrid VT SMT Rcpt 30 SAu 26Ckt; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

15-45-3326 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15-45-3326	-	-	View	Buy Now

15-45-3326 Overview

Headers & Wire Housings CGrid VT SMT Rcpt 30 SAu 26Ckt

15-45-3326 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	TOP ENTRY
body width	0.199 inch
subject depth	0.34 inch
body length	1.299 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	71395
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	26
UL Flammability Code	94V-0
Base Number Matches	1

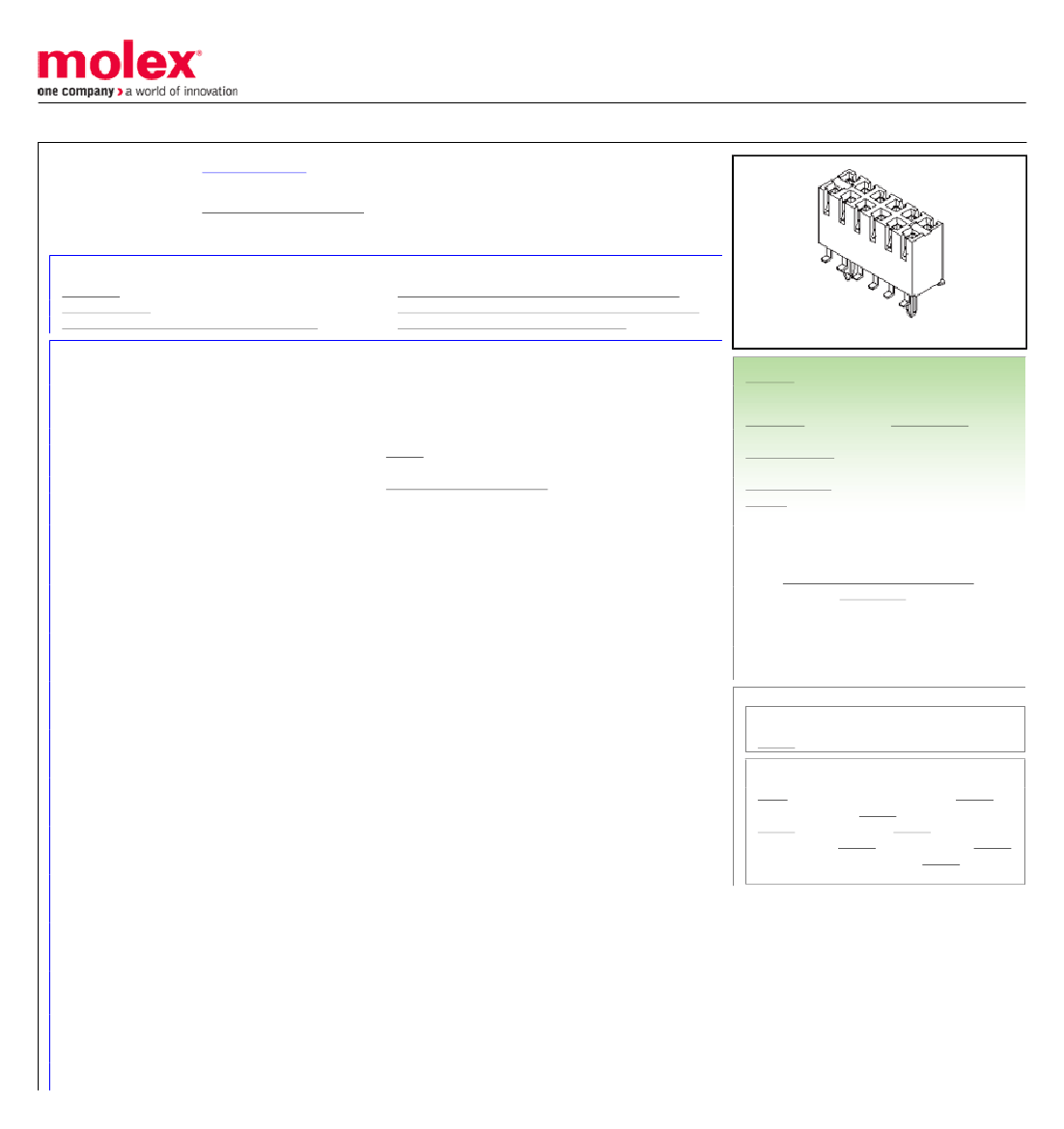

Preview

Download Datasheet

View All

This document was generated on 01/22/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0015453326

Active

C-Grid Connector Products

2.54mm Pitch C-Grid PCB Connector, Surface Mount, High Profile, Dual Row, Vertical,

26 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-71395-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Grounding to PCB

Voltage - Maximum

Solder Process Data

Product Specification TS-70541-001-001 (PDF)

Application Specification AS-71395-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Receptacles

71395

Board-to-Board, Signal

C-Grid Connector Products

C-Grid

800755002898

Black

94V-0

None

Phosphor Bronze

Gold

Tin

High Temperature Thermoplastic

Vertical

1.47mm

Yes

None

1.57mm

Tray

2.54mm

0.762µm

1.905µm

N/A

-40°C to +105°C

Surface Mount

2.5A

250V

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Not Reviewed

Not Relevant

Not Reviewed

Search Parts in this Series

71395 Series

Mates With

8624 C-Grid Breakaway Header, 70246

Straight Header, 70247 Right Angle Header,

70287 C-Grid Header, 70227 Dual Row C-

Grid Header, 70567 C-Grid Header, 70280

C-Grid Breakaway Header, 70524 C-Grid

Breakaway Header
