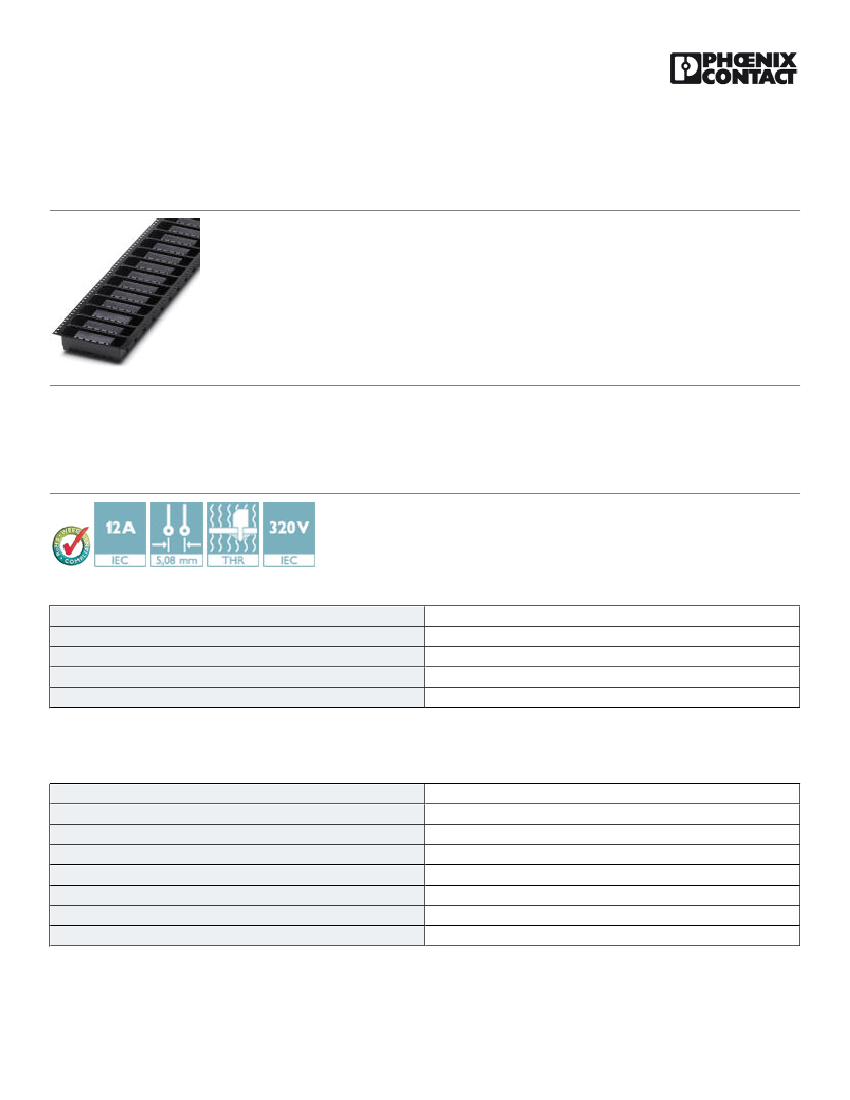

Printed-circuit board connector - CCA 2,5/ 7-G-5,08 P26THRR56 - 1955086
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 7, Pitch: 5.08 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, User information and design recommendations for through hole
reflow technology can be found under “Downloads”
Product Features
■
■
■
Standard pin length of 2.6 mm, other pin lengths available on request
Plug-in direction parallel to the PCB
Use in SMT reflow processes
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
330 pc
4.27 g
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Constructional height
Height
Length of the solder pin
Pin dimensions
Hole diameter
12 mm
5.08 mm
30.48 mm
9 mm
8.6 mm
2.6 mm
1 x 1 mm
1.6 mm
General
04/24/2016 Page 1 / 11
https://www.phoenixcontact.com/us/products/1955086
Printed-circuit board connector - CCA 2,5/ 7-G-5,08 P26THRR56 - 1955086
Technical data
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Insulating material
Flammability rating according to UL 94
Color
Number of positions
CCA 2,5/..-G
IIIa
4 kV
4 kV
4 kV
250 V
320 V
400 V
EN-VDE
12 A
12 A (per position)
LCP
V0
black
7
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440402
27440402
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002637
EC002637
04/24/2016 Page 2 / 11
https://www.phoenixcontact.com/us/products/1955086
Printed-circuit board connector - CCA 2,5/ 7-G-5,08 P26THRR56 - 1955086
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
EAC / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / cULus Recognized / EAC
Ex Approvals
Approvals submitted
Approval details
EAC
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
Nominal voltage UN
12 A
400 V
IECEE CB Scheme
cULus Recognized
Nominal current IN
B
10 A
D
10 A
04/24/2016 Page 3 / 11
https://www.phoenixcontact.com/us/products/1955086
Printed-circuit board connector - CCA 2,5/ 7-G-5,08 P26THRR56 - 1955086
Approvals
Nominal voltage UN
B
300 V
D
300 V
EAC

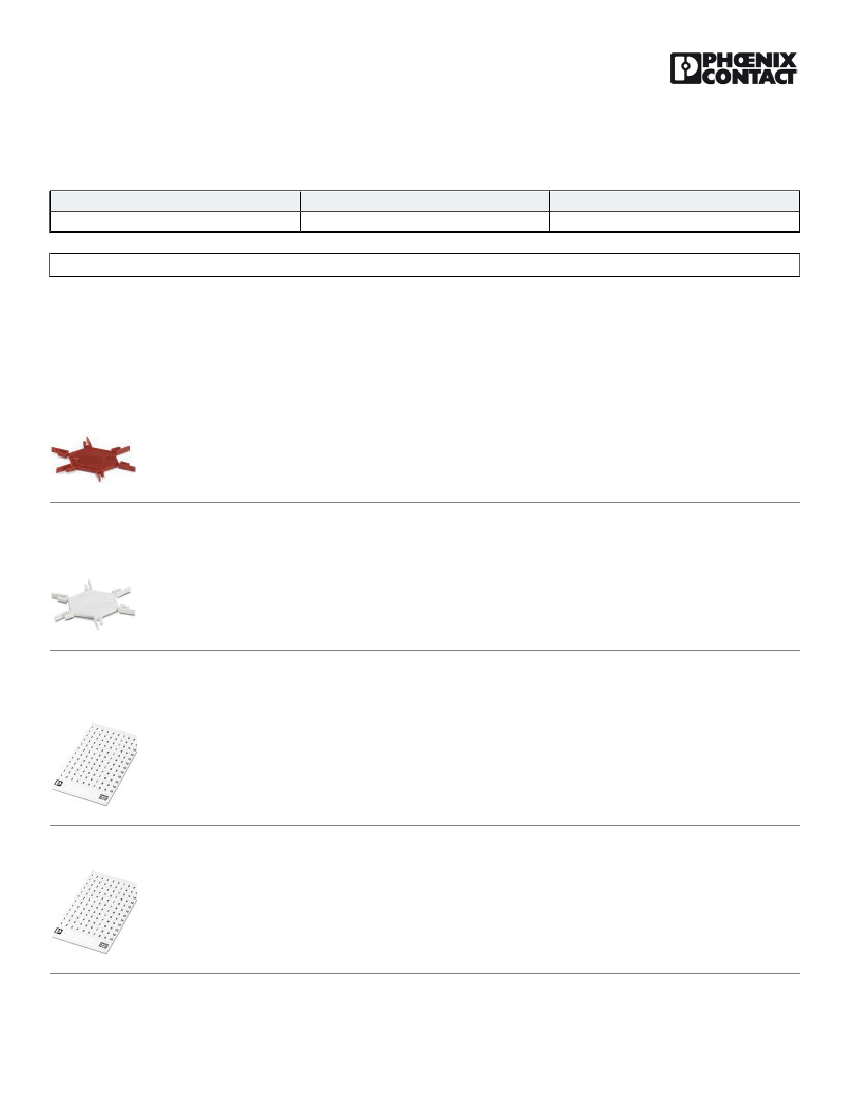

Accessories
Accessories
Coding element
Coding star - CR-MSTB - 1734401
Coding section, inserted into the recess in the header or the inverted plug, red insulating material
Coding section - CR-MSTB NAT HT - 1954362
HT coding section, prior to the reflow soldering process it is inserted into the recess on the header, made from high-
temperature-resistant beige insulation material
Labeled terminal marker
Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 5.08 mm, Lettering field: 5.08 x 3.8 mm
Marker for terminal blocks - SK 5,08/3,8: 0-9 - 0804303
Marker for terminal blocks, Card, white, labeled, Horizontal: Consecutive numbers 0 - 9, Mounting type: Adhesive, for
terminal block width: 5.08 mm, Lettering field: 5.08 x 3.8 mm
04/24/2016 Page 4 / 11
https://www.phoenixcontact.com/us/products/1955086
Printed-circuit board connector - CCA 2,5/ 7-G-5,08 P26THRR56 - 1955086

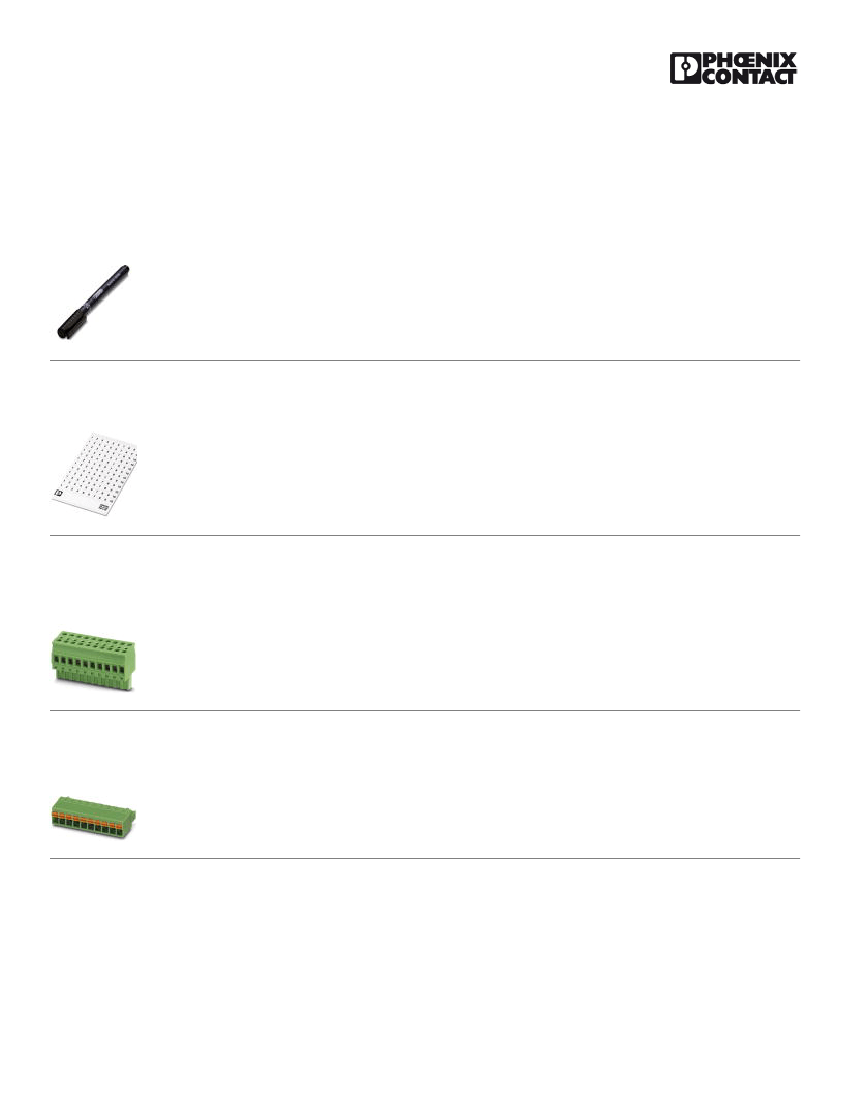

Accessories
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Terminal marking
Marker card - SK 5,08/3,8:UNBEDRUCKT - 0805412
Marker card, Card, white, unlabeled, can be labeled with: Marker pen, Mounting type: Adhesive, for terminal block width:
5.08 mm, Lettering field: 5.08 x 3.8 mm
Additional products
Printed-circuit board connector - TVMSTB 2,5/ 7-ST-5,08 - 1719053
Plug component, Nominal current: 12 A, Rated voltage (III/2): 400 V, Number of positions: 7, Pitch: 5.08 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - FKCN 2,5/ 7-ST-5,08 - 1754610
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 7, Pitch: 5.08 mm, Connection
method: Push-in spring connection, Color: green, Contact surface: Tin
04/24/2016 Page 5 / 11
