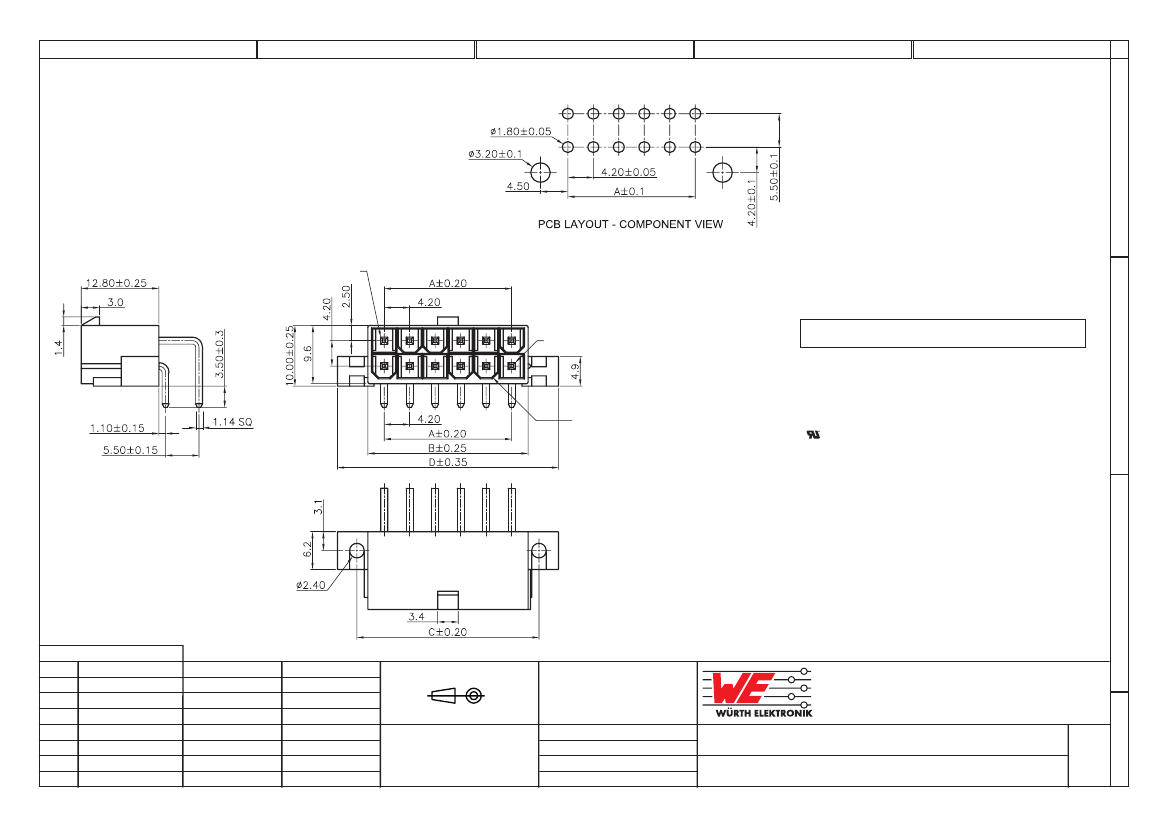

Headers & Wire Housings WR-MPC4 4.20mm Male 6Pin Dual Angld Hdr

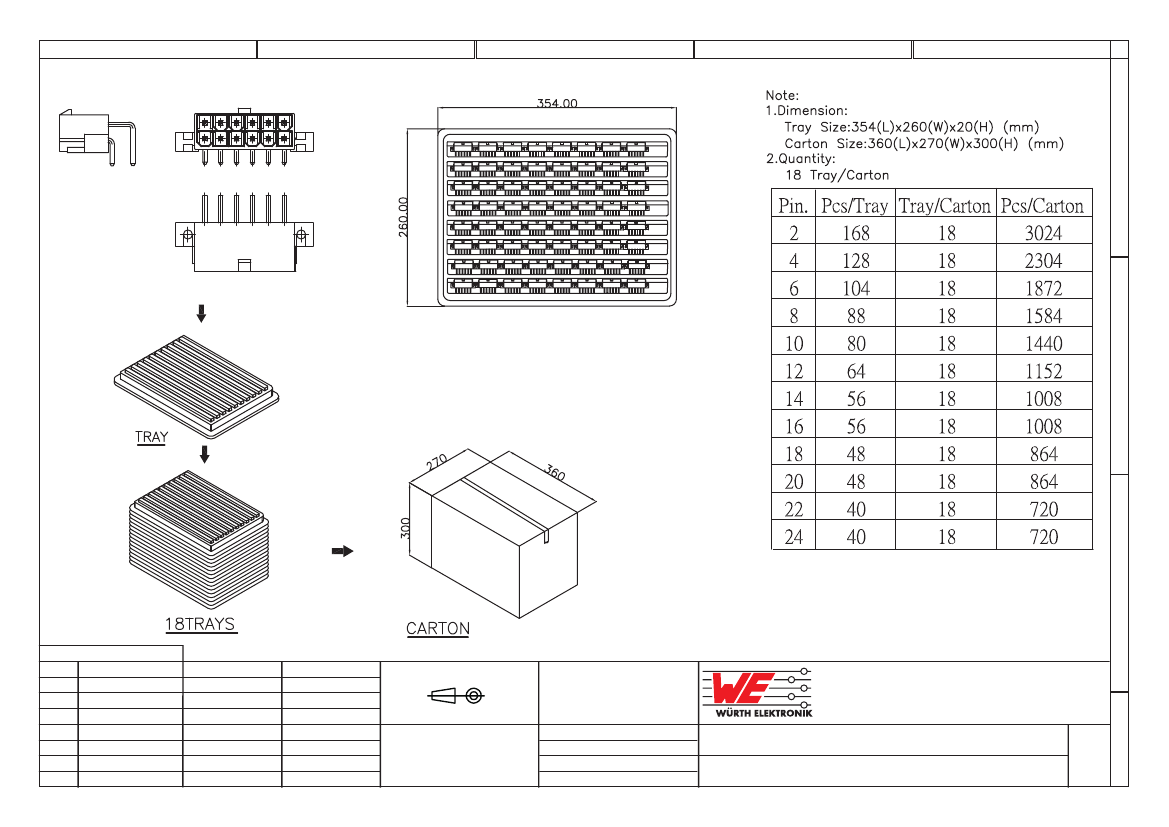

| Parameter Name | Attribute value |
| Brand Name | Wurth Electronik |
| Is it Rohs certified? | conform to |
| Maker | Wurth Elektronik |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.429 inch |
| subject depth | 0.786 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | SN |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 25 Cycles |
| Insulation resistance | 1000000000 Ω |
| Insulator color | WHITE |
| insulator material | NYLON |
| JESD-609 code | e3 |
| Manufacturer's serial number | 6490 |
| Plug contact pitch | 0.165 inch |
| Match contact row spacing | 0.165 inch |
| Installation option 1 | LOCKING |
| Installation option 2 | MOUNTING FLANGE |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.5118 mm |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 9 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.142 inch |
| Terminal pitch | 4.191 mm |
| Termination type | SOLDER |
| Total number of contacts | 6 |
| Base Number Matches | 1 |
| 64900621022 | 64900221022 | 64902221022 | 64900821022 | |
|---|---|---|---|---|
| Description | Headers & Wire Housings WR-MPC4 4.20mm Male 6Pin Dual Angld Hdr | Headers & Wire Housings WR-MPC4 4.20mm Male 2Pin Dual Angld Hdr | Headers & Wire Housings WR-MPC4 4.20mm Male 22Pin Dual Angld Hdr | Headers & Wire Housings WR-MPC4 4.20mm Male 8Pin Dual Angld Hdr |
| Brand Name | Wurth Electronik | Wurth Electronik | Wurth Electronik | Wurth Electronik |
| Is it Rohs certified? | conform to | conform to | conform to | conform to |
| Maker | Wurth Elektronik | Wurth Elektronik | Wurth Elektronik | Wurth Elektronik |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.429 inch | 0.429 inch | 0.429 inch | 0.429 inch |
| subject depth | 0.786 inch | 0.786 inch | 0.786 inch | 0.786 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | SN | SN | SN | SN |
| Contact completed and terminated | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier | Tin (Sn) - with Nickel (Ni) barrier |
| Contact point gender | MALE | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 1500VAC V | 1500VAC V | 1500VAC V | 1500VAC V |
| Durability | 25 Cycles | 25 Cycles | 25 Cycles | 25 Cycles |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Insulator color | WHITE | WHITE | WHITE | WHITE |
| insulator material | NYLON | NYLON | NYLON | NYLON |
| JESD-609 code | e3 | e3 | e3 | e3 |
| Manufacturer's serial number | 6490 | 6490 | 6490 | 6490 |
| Plug contact pitch | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch |
| Match contact row spacing | 0.165 inch | 0.165 inch | 0.165 inch | 0.165 inch |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation option 2 | MOUNTING FLANGE | MOUNTING FLANGE | MOUNTING FLANGE | MOUNTING FLANGE |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.5118 mm | 5.5118 mm | 5.5118 mm | 5.5118 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 9 A | 9 A | 9 A | 9 A |
| Guideline | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.142 inch | 0.142 inch | 0.142 inch | 0.142 inch |
| Terminal pitch | 4.191 mm | 4.191 mm | 4.191 mm | 4.191 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 6 | 2 | 22 | 8 |
| Base Number Matches | 1 | - | 1 | 1 |
