ET2716Q datasheet, PDF - EEWORLD Datasheet

ET2716Q: Description16,384-BIT (2048 x 8) UV ERASABLE PROM MEMORY COMPONENTS; Categorystorage storage; File Size300KB，6 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

ET2716Q Overview

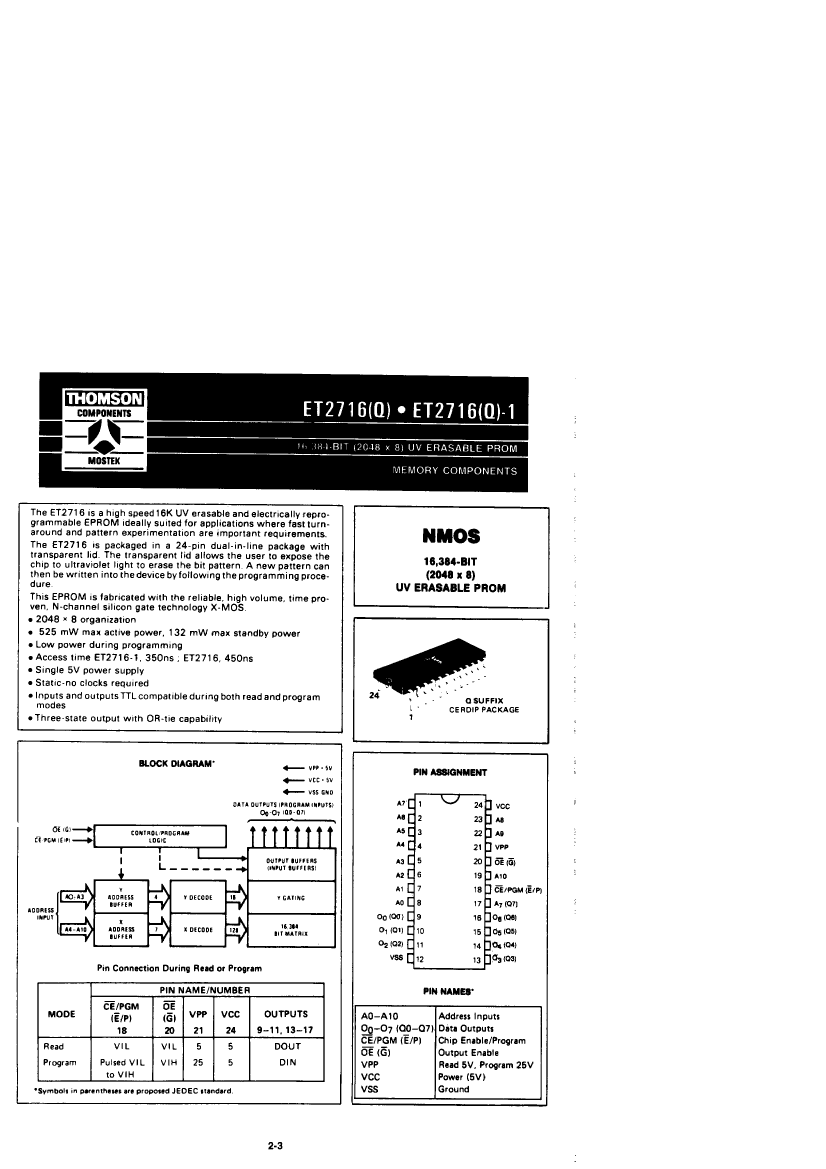

16,384-BIT (2048 x 8) UV ERASABLE PROM MEMORY COMPONENTS

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	CERAMIC, FDIP-24
Contacts	24
Reach Compliance Code	_compli
ECCN code	EAR99

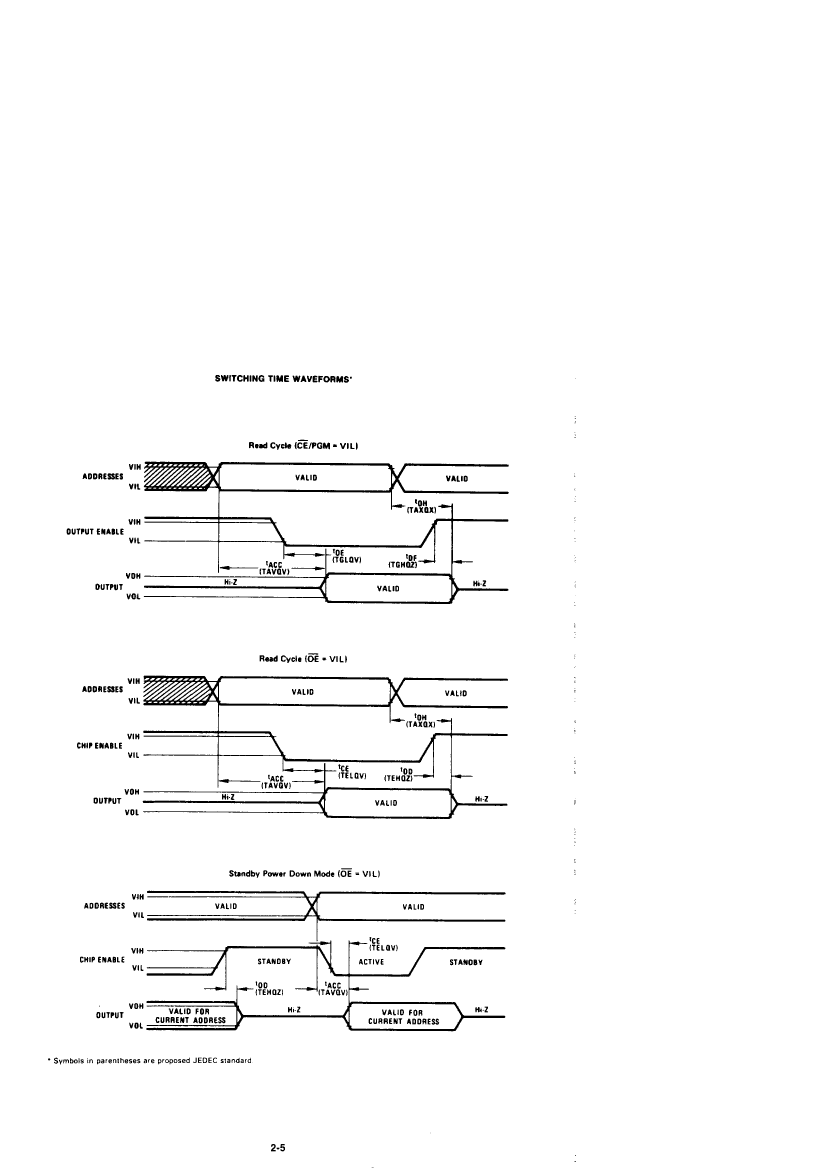

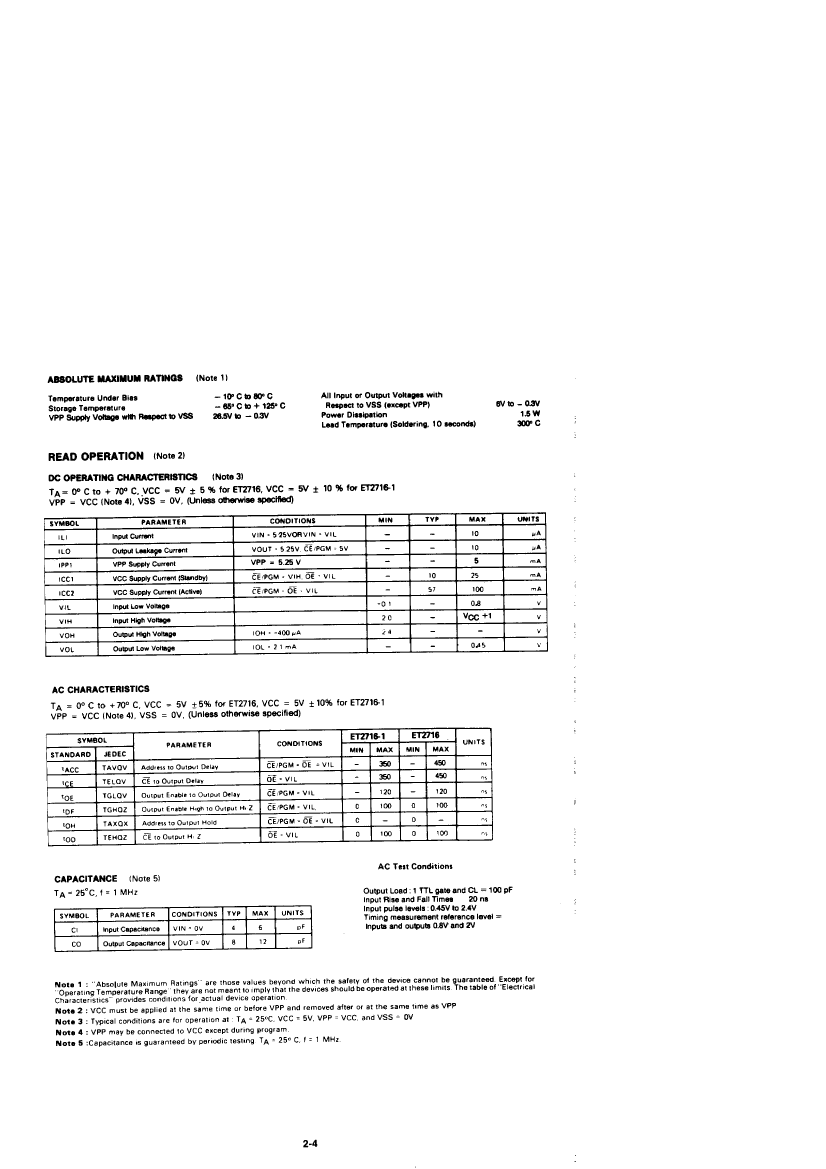

Maximum access time	450 ns
I/O type	COMMON
JESD-30 code	R-GDIP-T24
JESD-609 code	e0
memory density	16384 bi
Memory IC Type	UVPROM
memory width	8
Number of functions	1
Number of terminals	24
word count	2048 words
character code	2000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2KX8
Output characteristics	3-STATE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V

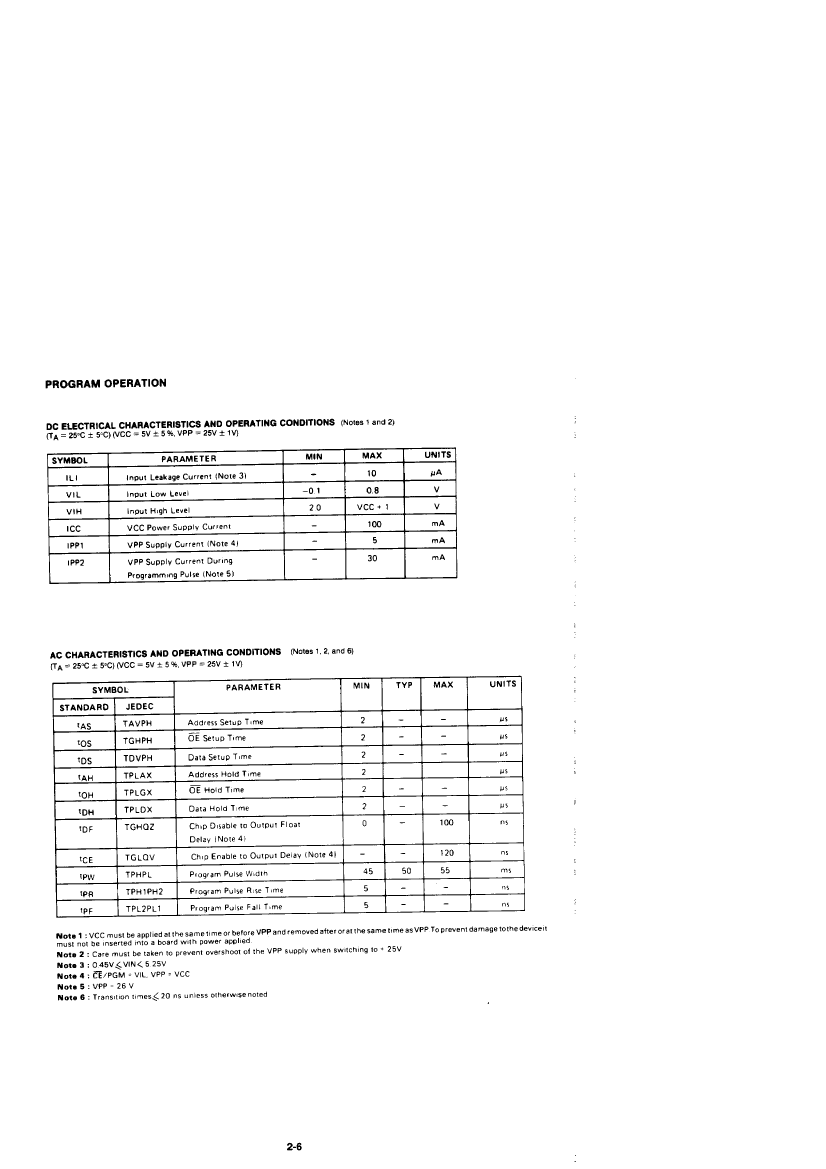

Programming voltage	25 V
Certification status	Not Qualified

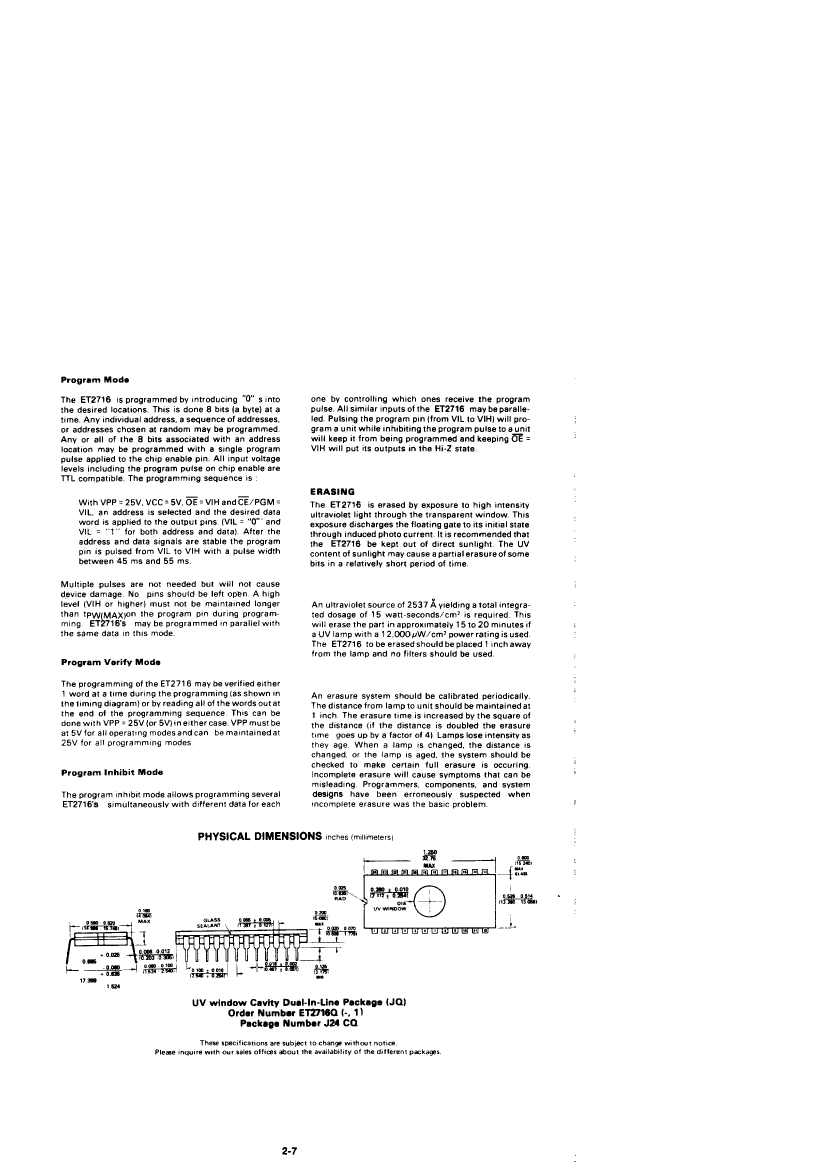

Maximum seat height	5.71 mm
Maximum slew rate	0.1 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

	ET2716Q	ET2716	ET2716-1	ET2716Q-1
Description	16,384-BIT (2048 x 8) UV ERASABLE PROM MEMORY COMPONENTS	16,384-BIT (2048 x 8) UV ERASABLE PROM MEMORY COMPONENTS	16,384-BIT (2048 x 8) UV ERASABLE PROM MEMORY COMPONENTS	16,384-BIT (2048 x 8) UV ERASABLE PROM MEMORY COMPONENTS
