54698-7000 datasheet, PDF - EEWORLD Datasheet

54698-7000: DescriptionDIMM Connectors R/A SMT 144P 3.3V 5.2mm height; CategoryThe connector The connector; File Size276KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

54698-7000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	54698-7000	-	-	View	Buy Now

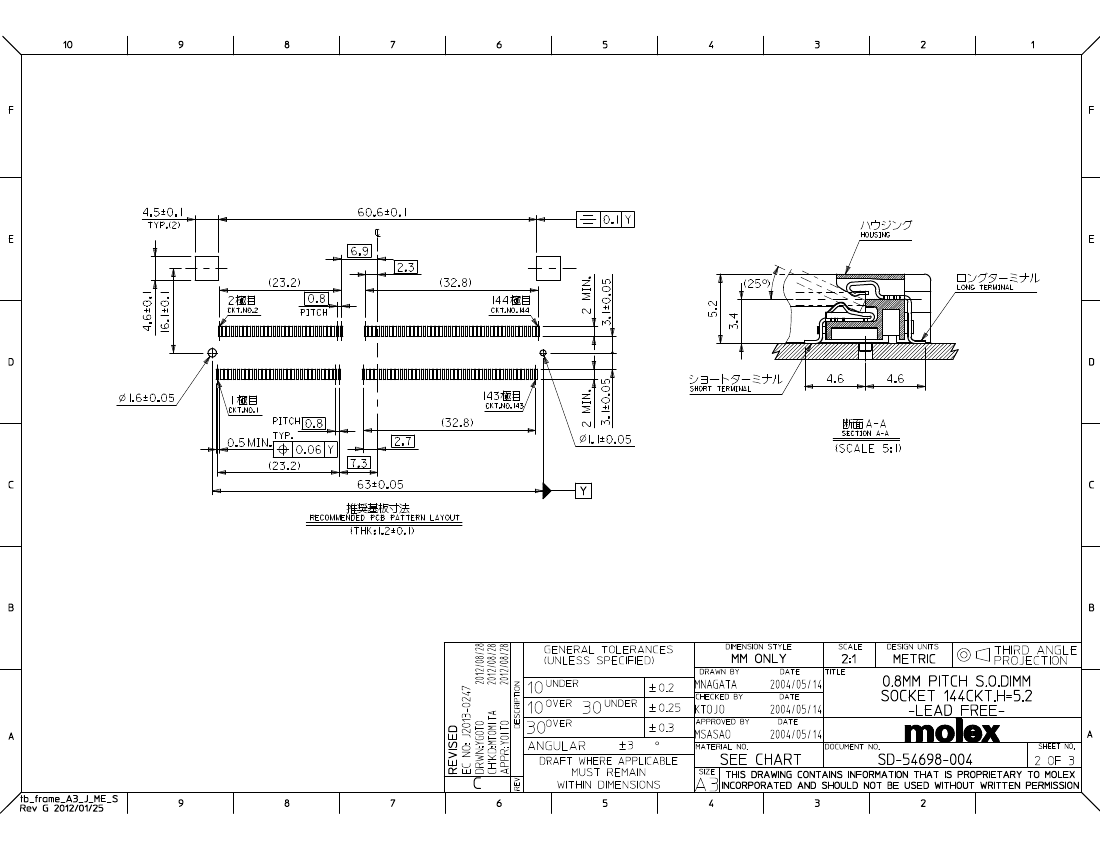

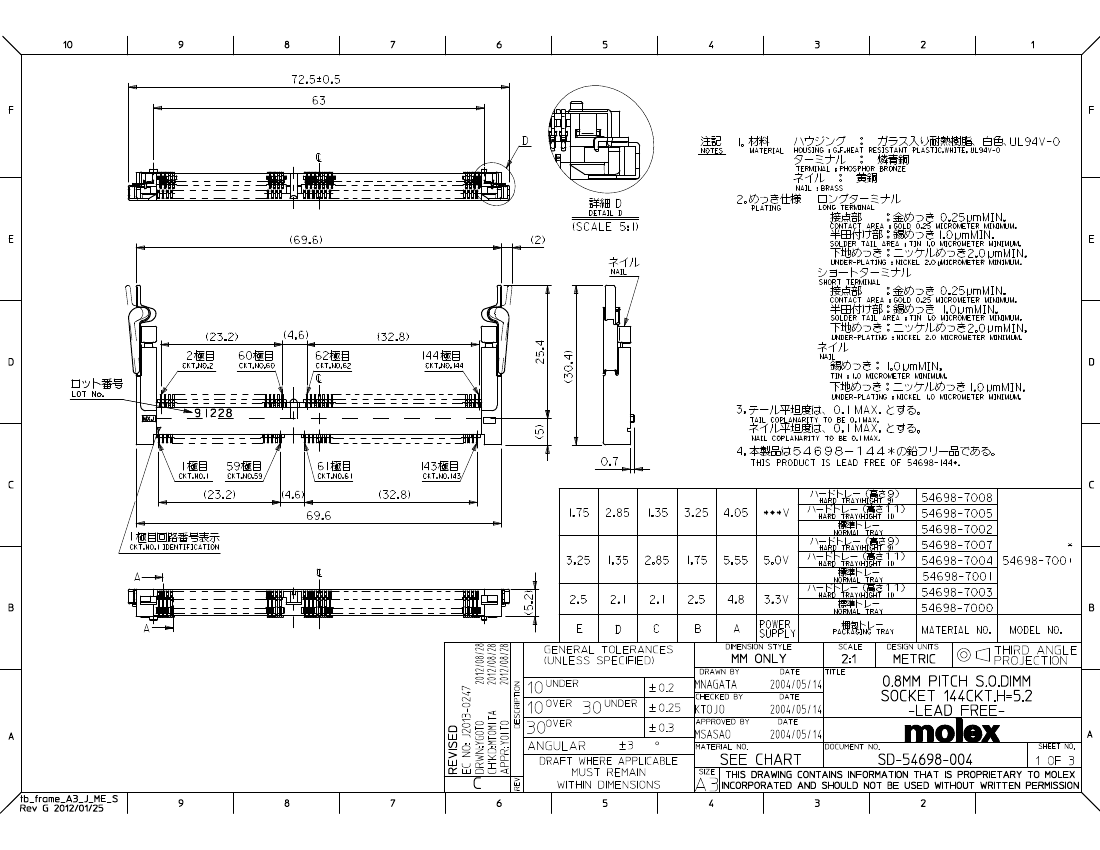

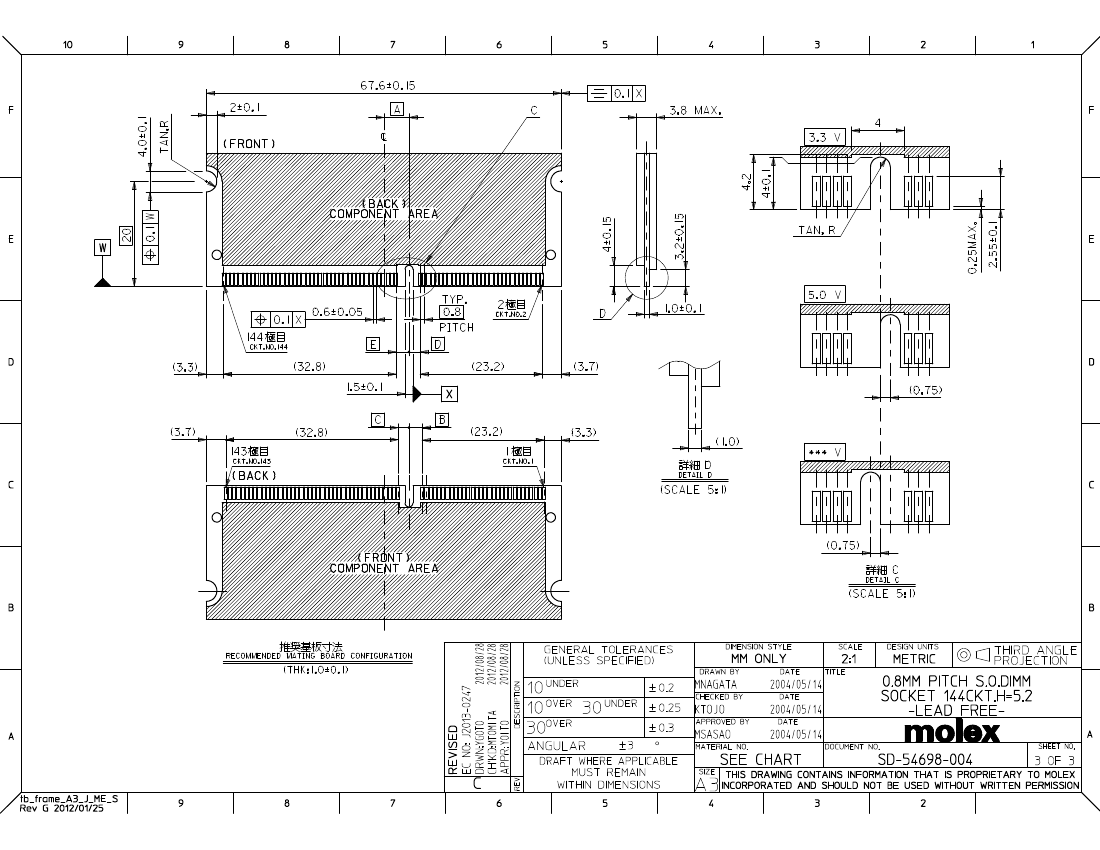

DIMM Connectors R/A SMT 144P 3.3V 5.2mm height

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Description	Molex 0.8mm Pitch 144 Way, Right Angle SMT Mount DIMM Socket ,100 V ac ,300mA
Other features	ROHS COMPLIANT
Board mount options	PEG
body width	0.205 inch
body length	2.854 inch
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	200VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	WHITE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.031 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.323 mm
Plating thickness	FLASH inch
polarization key	POLARIZED KEY
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	144
UL Flammability Code	94V-0
Base Number Matches	1
