76145-9607 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 76145-9607

76145-9607: DescriptionHigh Speed / Modular Connectors Impact BP 6x16 GR/W pact BP 6x16 GR/W Sn; CategoryThe connector; File Size40KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

76145-9607 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	76145-9607	-	-	View	Buy Now

76145-9607 Overview

High Speed / Modular Connectors Impact BP 6x16 GR/W pact BP 6x16 GR/W Sn

76145-9607 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Molex
Product Category	High Speed / Modular Connectors
RoHS	Details
Number of Rows	18 Row
Termination Style	Through Hole
Contact Plating	Gold
Packaging	Tray
Current Rating	750 mA
Voltage Rating	30 VAC/DC
Factory Pack Quantity	140
Unit Weight	0.350729 oz

Preview

Download Datasheet

View All

This document was generated on 02/12/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

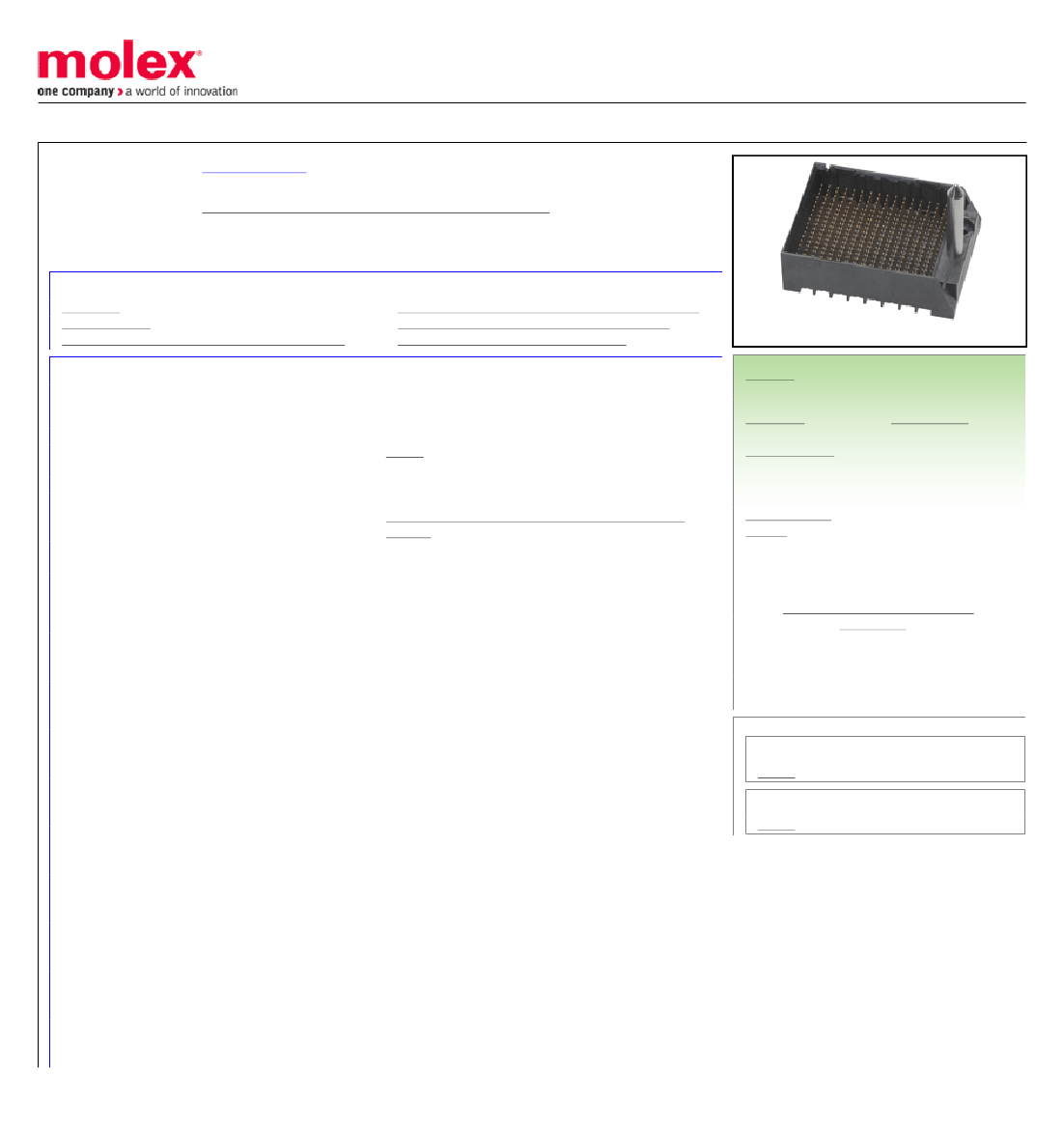

Part Number:

Status:

Overview:

Description:

0761459607

Active

Impact Backplane Connector and Cable Assembly System

Impact 100 Ohm 6 Pair Vertical Backplane Header, Right Guided, Left Endwall, 16

Columns, 288 Circuits, Pin Length 4.90mm, Plated Through Hole Dimension 0.39mm,

Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-76060-999-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Application Tooling Documents

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Application Specification AS-76060-990-001 (PDF)

Packaging Specification PK-70873-760 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

Backplane Connectors

76145

Conventional

TM-622018799

PCB Header

Impact Backplane Connector and Cable Assembly

System

Impact

883906411039

288

Black

200

94V-0

Yes

None

High Performance Alloy (HPA)

Gold

Tin

High Temperature Thermoplastic

9.943/g

Vertical

1.40mm

Yes

1.00mm

Tray

1.90mm

0.762µm

Yes

-55°C to +85°C

Through Hole - Compliant Pin

Search Parts in this Series

76145 Series

Mates With

76150 Impact 100 Ohm Daughtercard

Recommended Resources
