35922-9002

Description
Headers & Wire Housings 3.96 PITCH W-T-B CON W-T-B CONN TERMINAL
CategoryThe connector    terminals
File Size29KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

35922-9002 Online Shopping

Suppliers Part Number Price MOQ In stock
35922-9002 - - View Buy Now

35922-9002 Overview

Headers & Wire Housings 3.96 PITCH W-T-B CON W-T-B CONN TERMINAL

35922-9002 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Factory Lead Time14 weeks
Manufacturer's serial number35922
terminal genderFEMALE
Terminal and terminal strip typesWIRE TERMINAL
Base Number Matches1

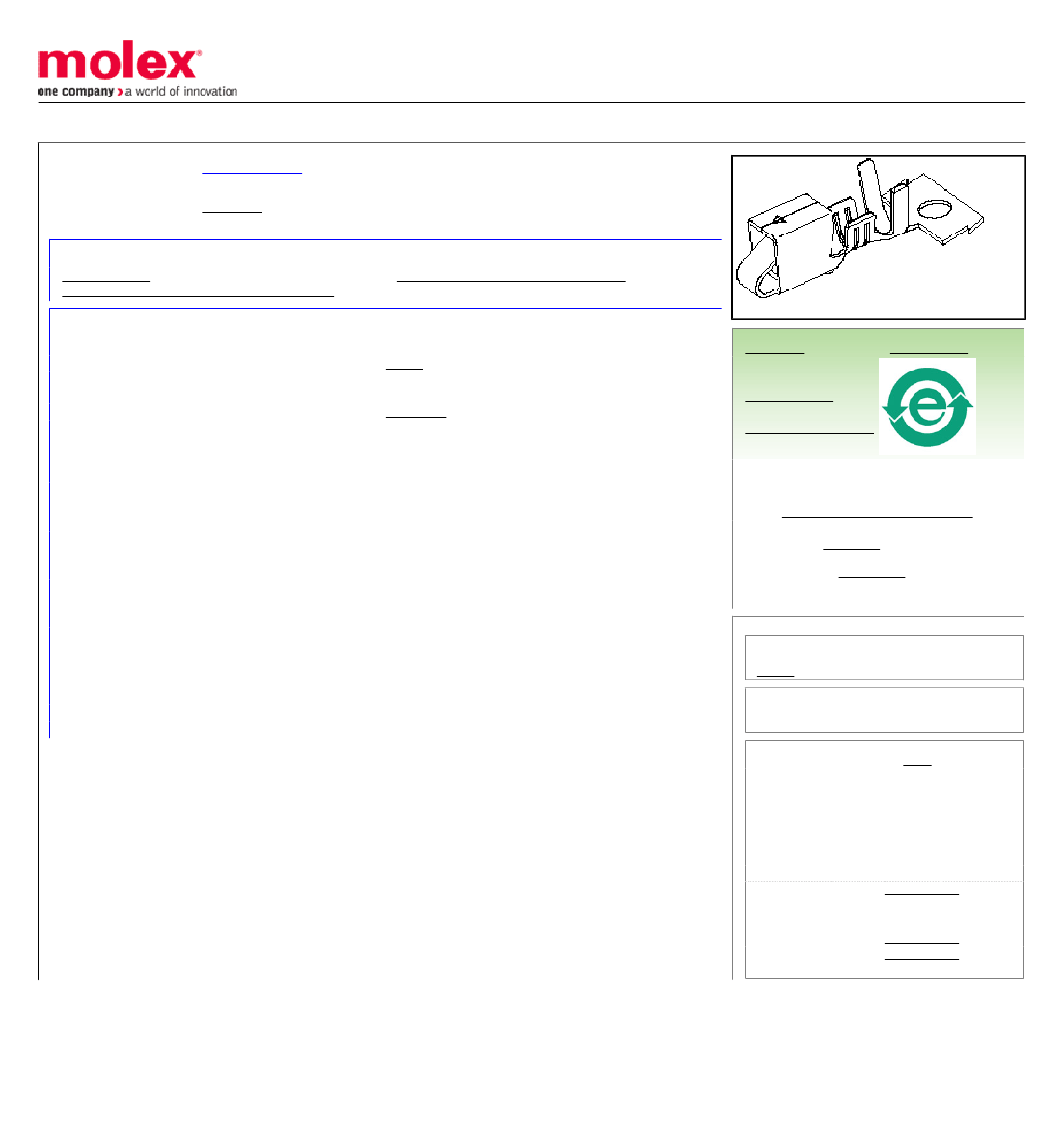

This document was generated on 04/03/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
35922-9002
Active
MV-396™
3.96mm Pitch Wire-to-Board Terminal
Documents:
Drawing (PDF)
Packaging Specification PK-35922-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Product Name
Crimp Terminals
35922
Power
Yes
MV-396™
MV-396™
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Tin
Tin
Reel
1.524µm
1.524µm
Crimp or Compression
3.00mm max.
18, 20
N/A
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Material Info
Reference - Drawing Numbers
Packaging Specification
Sales Drawing
PK-35922-001
SD-35922-500
Search Parts in this Series
35922Series
Use With
35977
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimp Tool for 0638235900
Wire-to-Board Crimp
Terminals
T2 Terminator Die 0638557000
FineAdjust™
0638657000
Applicator
This document was generated on 04/03/2012
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
