AXE192224: DescriptionBoard to Board & Mezzanine Connectors Conn Socket 0.4mm 92 POS 1.0/1.5mm; CategoryThe connector; File Size758KB，8 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

AXE192224 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AXE192224	-	-	View	Buy Now

AXE192224 Overview

Board to Board & Mezzanine Connectors Conn Socket 0.4mm 92 POS 1.0/1.5mm

AXE192224 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Panasonic
Product Category	Board to Board & Mezzanine Connectors
RoHS	Details
Factory Pack Quantity	5000

Preview

Download Datasheet

View All

For board-to-FPC

Narrow pitch connectors

ADVANCED Series

0.4mm pitch

2.2 mm Ultra-slim body with the inherited high reliability

2011.07

panasonic-electric-works.net/ac

AXE1/AXE2

For board-to-FPC

Narrow pitch connectors

(0.4mm pitch)

A4US

Series

3. “

”

structure adopted to ensure high

resistance to various environments in

spite of the ultra-slim space-saving

body.

Ni barrier

construction

(Tough against solder rise!)

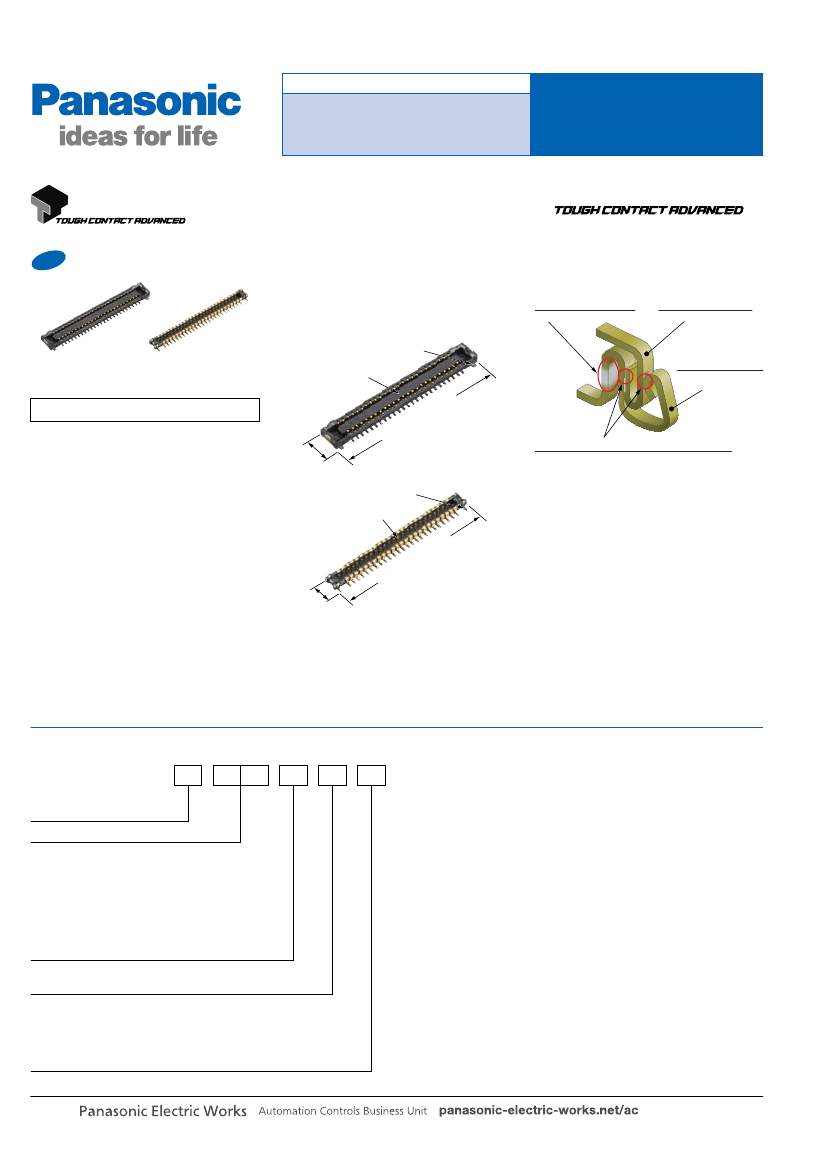

FEATURES

1. Ultra-slim (Mated width: 2.2 mm and

Mated height: 0.8 mm, 1.0 mm and 1.5

mm)

The footprint when mated is down

approx. 12% from our existing A4S model

(50 contacts), contributing to the

functionality enhancement and size

reduction of target equipment.

Soldering terminals

at the four corners

New

Bellows contact

construction

(Tough against dropping!)

Socket

Header

Suction face: 0.6mm*

ts)

Porosity treatment

(Tough against

corrosive gases!)

(50

tac

Compliance with RoHS Directive

Socket

Soldering terminals

at the four corners

Suction face: 0.7mm*

tac

)

V notch and Double contact constructions

(Tough against foreign particles and flux!)

1.8

(50

4. The simple lock structure for high

mating/unmating operation feel.

5. The contact at the four corners

enhance the mounting strength.

6. The gull-wing-shaped terminals

facilitate imaging inspections.

Header

APPLICATIONS

• Particularly suitable for board-to-FPC

connections in ultra-compact mobile

equipment that requires size and

thickness reduction and functionality

enhancement

* Suction face size for the 1.0 mm/1.5 mm mated

height type: Socket — 0.64 mm, Header — 0.76 mm

2. Improving the degree of design

freedom

(Mated height of 0.8 mm, 1.0 mm, or

1.5 mm with the same foot pattern)

ORDERING INFORMATION

AXE

1: Socket

2: Header

Number of contacts (2 digits)

Mated height

1: 0.8 mm

2: 1.0 mm/1.5 mm

1: 0.8 mm

2: 1.0 mm

3: 1.5 mm

Functions

2: Without positioning bosses

Surface treatment (Contact portion / Terminal portion)

4: Base: Ni plating, Surface: Au plating (for Ni barrier available)

4: Base: Ni plating, Surface: Au plating

ACCTB4E 201107-T

AXE1/AXE2

PRODUCT TYPES

Mated height

Number of contacts

0.8mm

1.5mm

Part number

Socket

AXE110124

AXE114124

AXE120124

AXE124124

AXE130124

AXE136124

AXE140124

AXE150124

AXE160124

AXE170124

AXE180124

AXE120224

AXE134224

AXE160224

AXE180224

AXE120224

AXE160224

AXE180224

Header

AXE210124

AXE214124

AXE220124

AXE224124

AXE230124

AXE236124

AXE240124

AXE250124

AXE260124

AXE270124

AXE280124

AXE220224

AXE234224

AXE260224

AXE280224

AXE220324

AXE260324

AXE280324

5,000 pieces

10,000 pieces

Inner carton (1-reel)

Packing

Outer carton

1.0mm

Notes: 1. Order unit:

For mass production: in 1-inner carton (1-reel) units

Samples for mounting check: in 50-connector units. Please contact our sales ofﬁce.

2. The above part numbers are for connectors without positioning bosses, which are standard. When ordering connectors with positioning bosses, please contact our

sales ofﬁce.

3. Please contact us for connectors having a number of contacts other than those listed above.

SPECIFICATIONS

1. Characteristics

Item

Rated current

Rated voltage

Electrical

characteristics

Breakdown voltage

Insulation resistance

Contact resistance

Composite insertion force

Composite removal force

Contact holding force

(Socket contact)

Ambient temperature

Soldering heat resistance

Storage temperature

Speciﬁcations

0.30A/contact (Max. 5 A at total contacts)

60V AC/DC

150V AC for 1 min.

Min. 1,000MΩ (initial)

Max. 90mΩ

Max. 0.981N/contacts

contacts (initial)

Min. 0.165N/contacts

contacts

Min. 0.20N/contacts

–55°C to +85°C

Peak temperature: 260°C or less (on the surface of

the PC board around the connector terminals)

300°C within 5 sec. 350°C within 3 sec.

–55°C to +85°C (product only)

–40°C to +50°C (emboss packing)

5 cycles,

insulation resistance min. 100MΩ,

contact resistance max. 90mΩ

120 hours, insulation resistance min. 100MΩ,

contact resistance max. 90mΩ

24 hours, insulation resistance min. 100MΩ,

contact resistance max. 90mΩ

48 hours, contact resistance max. 90mΩ

Measuring the maximum force.

As the contact is axially pull out.

No freezing at low temperatures. No dew condensation.

Infrared reﬂow soldering

Soldering iron

No freezing at low temperatures. No dew condensation.

Sequence

1. –55

−3

°C,

30 minutes

2. ~ , Max. 5 minutes

3. 85

°C,

30 minutes

4. ~ , Max. 5 minutes

Bath temperature 40±2°C,

humidity 90 to 95% R.H.

Bath temperature 35±2°C,

saltwater concentration 5±1%

Conditions

No short-circuiting or damage at a detection current of 1 mA

when the speciﬁed voltage is applied for one minute.

Using 250V DC megger (applied for 1 min.)

Based on the contact resistance measurement method

speciﬁed by JIS C 5402.

Mechanical

characteristics

Environmental

characteristics

Thermal shock resistance

(header and socket mated)

Humidity resistance

(header and socket mated)

Saltwater spray resistance

(header and socket mated)

S resistance

(header and socket mated)

Lifetime

characteristics

Unit weight

Insertion and removal life

Bath temperature 40±2°C, gas concentration 3±1 ppm,

humidity 75 to 80% R.H.

Repeated insertion and removal speed of max. 200 times/

30 times

hours

60 contacts Socket (h = 0.8mm: 0.03g, h = 1.0/1.5mm: 0.04g)

Header (h = 0.8mm: 0.01g, h = 1.0mm: 0.02g, h = 1.5mm: 0.03g)

2. Material and surface treatment

Part name

Molded

portion

Contact and

Post

Material

LCP resin

(UL94V-0)

Surface treatment

—

Contact portion: Base: Ni plating, Surface: Au plating

Terminal portion: Base: Ni plating, Surface: Au plating (except the terminal tips)

The socket terminals close to the portion to be soldered have nickel barriers (exposed nickel portions).

Soldering terminals: Sockets: Base: Ni plating, Surface: Pd+Au ﬂash plating (except the terminal tips)

Headers: Base: Ni plating, Surface: Au plating (except the terminal tips)

Copper alloy

ACCTB4E 201107-T

AXE1/AXE2

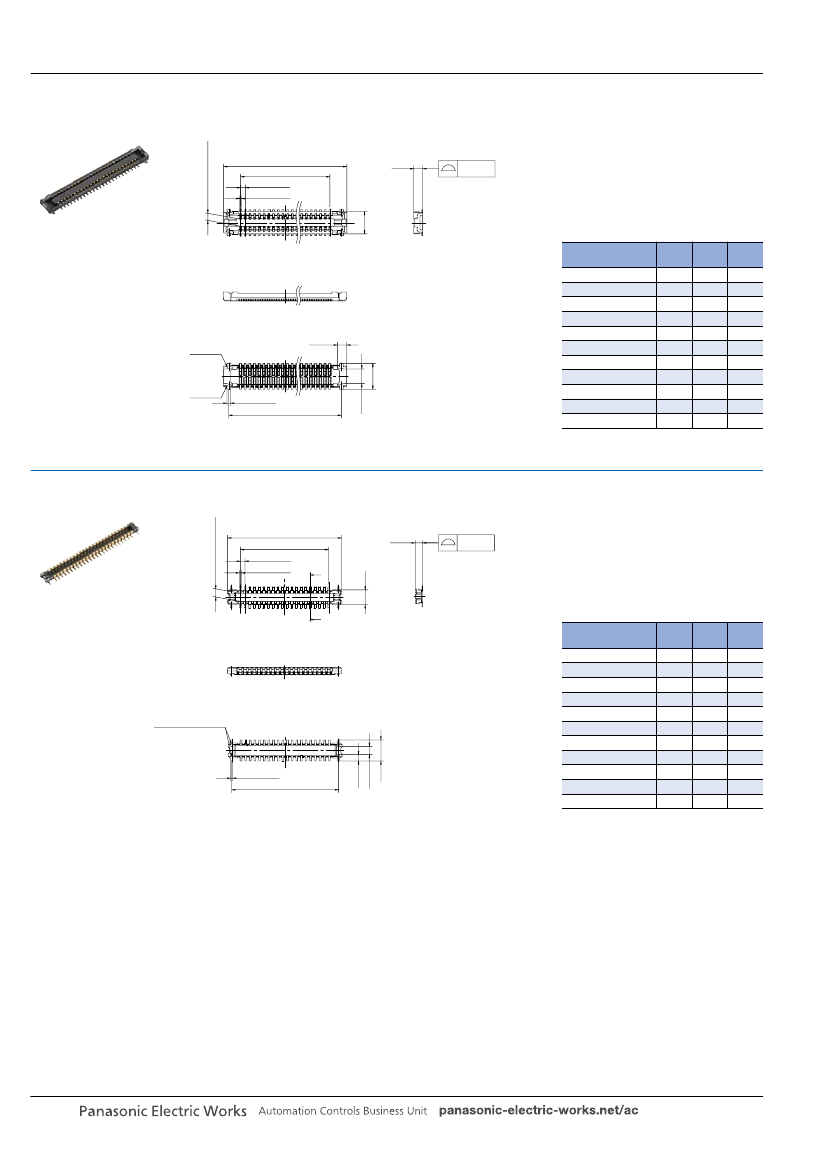

DIMENSIONS

(Unit: mm)

Socket (Mated height: 0.8 mm)

0.60 (Suction face)

B±0.1

0.40±0.05

0.15±0.03

1.90

Terminal coplanarity

0.77

0.08

(Contact and

soldering terminals)

Dimension table (mm)

Number of contacts/

dimension

2.20

4.5

5.3

6.5

7.3

8.5

9.7

10.5

12.5

14.5

16.5

18.5

1.6

2.4

3.6

4.4

5.6

6.8

7.6

9.6

11.6

13.6

15.6

3.6

4.4

5.6

6.4

7.6

8.8

9.6

11.6

13.6

15.6

17.6

(0.80)

Y (Note)

0.30±0.03

C±0.1

1.24

Z (Note)

General tolerance:

±0.2

Note: Since soldering terminals are built into the body, the Y and Z parts are connected electrically.

Header (Mated height: 0.8 mm)

0.70 (Suction face)

1.28

B±0.1

0.40±0.05

0.15±0.03

Terminal coplanarity

0.65

0.08

(Post and

soldering terminals)

Dimension table (mm)

Number of contacts/

dimension

3.8

4.6

5.8

6.6

7.8

9.0

9.8

11.8

13.8

15.8

17.8

1.6

2.4

3.6

4.4

5.6

6.8

7.6

9.6

11.6

13.6

15.6

3.2

4.0

5.2

6.0

7.2

8.4

9.2

11.2

13.2

15.2

17.2

Soldering terminals

0.15±0.03

C±0.1

(0.54)

(0.72)

1.80

(Soldering terminals portion)

General tolerance:

±0.2

ACCTB4E 201107-T

AXE1/AXE2

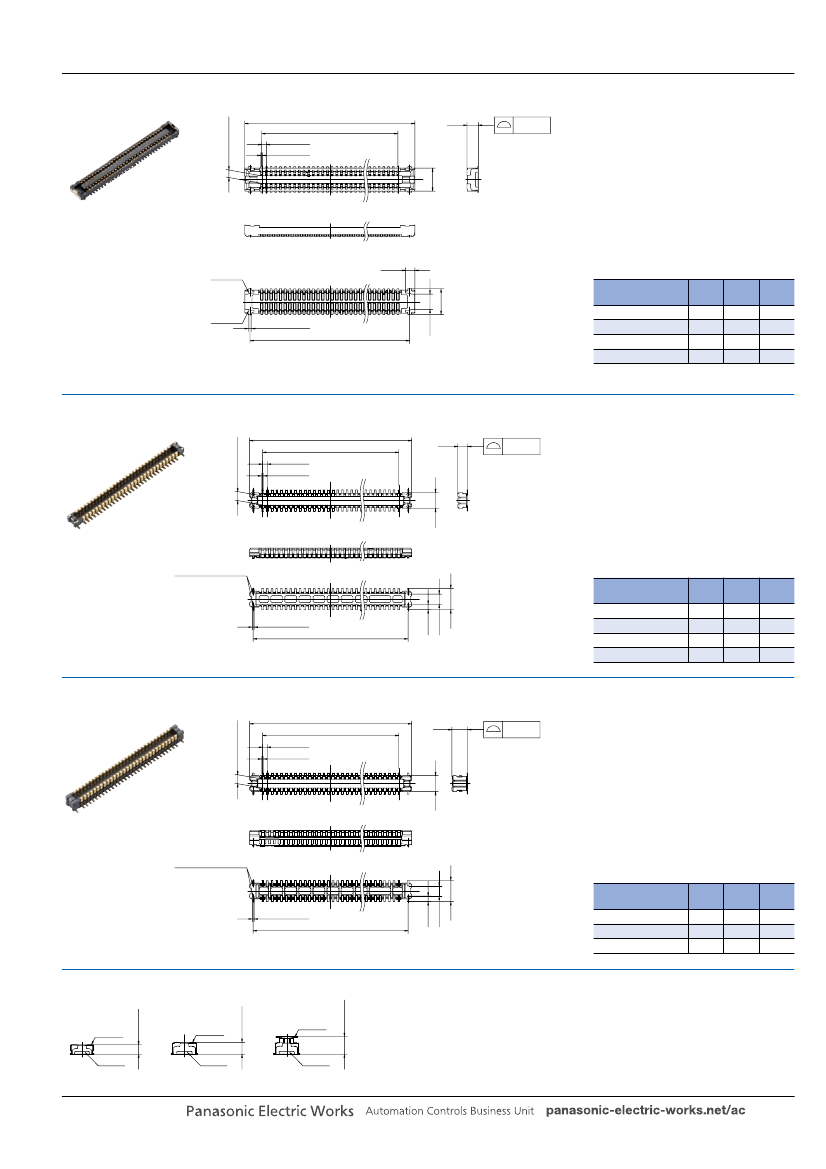

Socket (Mated height: 1.0 mm and 1.5 mm)

0.64

(Suction face)

B±0.1

0.40±0.05

0.15±0.03

1.96

Terminal coplanarity

0.97

0.08

(Contact and

soldering terminals)

(0.80)

Y (Note)

2.20

Dimension table (mm)

Number of contacts/

dimension

6.5

9.3

14.5

18.5

3.6

6.4

11.6

15.6

5.6

8.4

13.6

17.6

0.30±0.03

C±0.1

1.30

Z (Note)

General tolerance:

±0.2

Note: Since soldering terminals are built into the body, the Y and Z parts are connected electrically.

Header (Mated height: 1.0 mm)

0.76

(Suction face)

B±0.1

0.40±0.05

0.15±0.03

Terminal coplanarity

0.85

0.08

(Post and

soldering terminals)

(0.46)

1.36

(0.88)

1.80

(Soldering terminals portion)

Soldering terminals

Dimension table (mm)

Number of contacts/

dimension

5.8

8.6

13.8

17.8

3.6

6.4

11.6

15.6

5.2

8.0

13.2

17.2

0.15±0.03

C±0.1

General tolerance:

±0.2

Header (Mated height: 1.5 mm)

0.76

(Suction face)

B±0.1

0.40±0.05

0.15±0.03

Terminal coplanarity

1.35

0.08

(Post and

soldering terminals)

Soldering terminals

(0.46)

(0.88)

1.80

(Soldering terminals portion)

1.36

Dimension table (mm)

Number of contacts/

dimension

5.8

13.8

17.8

3.6

11.6

15.6

5.2

13.2

17.2

0.15±0.03

C±0.1

General tolerance:

±0.2

Socket and Header are mated

0.80±0.1

1.00±0.1

1.50±0.1

Header

Socket

Header

Socket

ACCTB4E 201107-T

Recommended Resources

Single pulse stretching circuit b

Monostable multivibrator circuit using falling edge triggering

Step-down DC-DC converter circuit diagram (c)

225MHz front-end circuit

light dimmer

Zero-drift operational amplifier circuit
