B484312 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> B484312

B484312: DescriptionBarrier Terminal Blocks DISCONNECT BLOCK; CategoryThe connector terminals; File Size912KB，2 Pages; ManufacturerEaton; Environmental Compliance

Download Datasheet Parametric View All

B484312 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B484312	-	-	View	Buy Now

B484312 Overview

Barrier Terminal Blocks DISCONNECT BLOCK

B484312 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks 5 days
Other features	94V-0, THERMOPLASTIC
Fastening method	SCREW
Manufacturer's serial number	B4
Installation type	PANEL
Number of layers	1
Rows	1
Number of channels	12
Rated current	50 A
Rated voltage	600 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Wire gauge	8 AWG

Preview

Download Datasheet

View All

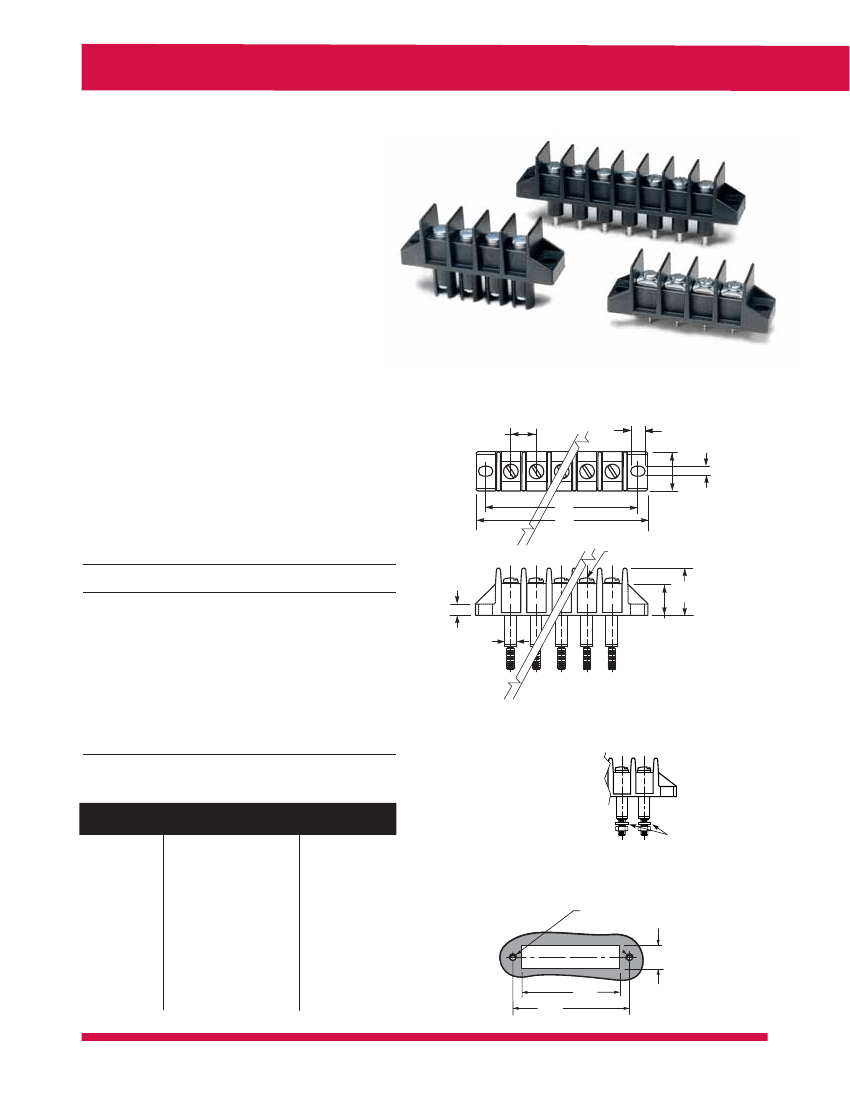

Terminal Blocks - Single Row

A481307

Series A4000 & Series B4000

Single Row Terminal Blocks

SPECIFICATIONS

Rating:

See table.

Center Spacing:

0.562” or 9/16” (14.28mm)

Wire Range:

See rating table.

Screw Size:

#8-32 or #10-32 zinc-plated slotted

screws

Torque Rating:

#8 screw size 16 lb-in.; #10 screw size

20 lb-in.

Distance Between Barriers:

0.47” (11.9mm)

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Molded Material:

Black, UL Rated 94V0 Thermoplastic

Hardware:

Bottom studs supplied with nuts assembled.

Cup washers are optional on bottom studs but are not

recommended with ring terminals.

Extended Hex Nuts:

Optional extended, slotted hex nuts

enable easier installation and removal with hex wrench or

screwdriver. Available in bulk for the #10-32 studs on

Series A4953 blocks. Specify part number F582 and

quantity.

Breakdown Voltage:

6100V

Agency Information:

UL File E62622, CSA File 47235;

CE Certified

RATING TABLE

Part

Number

A4003XX

A4011XX

A4013XX

A4021XX

A4035XX

A4041XX

A4043XX

A4051XX

A4803XX

A4813XX

A4843XX

A4953XX

B4843XX

Terminal

Top

# 8 Screw

#10 Screw

#10 Stud

#10 Screw

Terminal

Bottom

#8 Stud

Solder

0.250 QC

Closed

Solder

0.250 QC

#8 Stud

SolderTurret

#8 Screw

#10 Stud

#8 Screw

Wire*

Range CU

8-16 AWG

10-16 AWG

8-16 AWG

10-16 AWG

8-16 AWG

10-16 AWG

8-16 AWG

Ratings*

Volts/Amps

150V/50A

600V/35A

600V/50A

600V/35A

150V/50A

600V/35A

150V/50A

600V/50A

0.31

(7.9)

B484304

A40110407

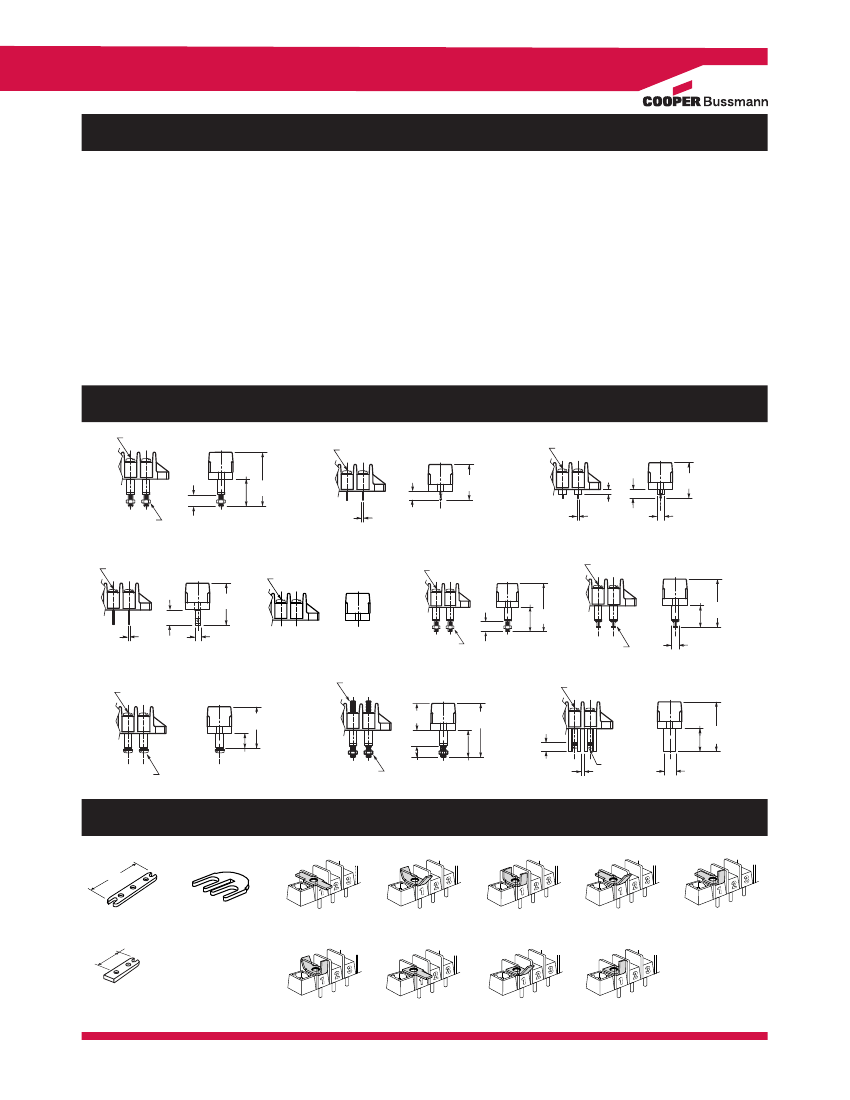

A4000 Series Dimensions - in (mm)

0.562

(14.27)

0.31

(7.9)

0.87

(22.1)

0.21

(5.3)

#8-32 or #10-32 THD’S

1.05

(26.7)

0.36 dia.

(9.1)

0.57

(14.5)

Note: Above unit

supplied

with nuts

assembled. Cup washers are optional.

* All models 30A Max. with 10 AWG;

35-50A ratings with 8 AWG using ring or fork type terminals.

Note: 50A rating achieved with #8 copper wire crimped to ring terminal.

Optional Cup Washers

Assembled

Available on A4003, A4803,

A4843, A4953 & B4843.

CUP

WASHERS

Poles

A (in.)

Mount Centers

1.69

2.25

2.81

3.37

3.93

4.50

5.06

5.62

6.18

6.74

7.31

7.87

8.43

8.99

9.55

10.12

10.68

B (in.)

Length

2.12

2.68

3.24

3.80

4.36

4.93

5.34

6.05

6.61

7.17

7.74

8.30

8.86

9.44

9.98

10.55

11.11

Reference Panel Cutout for 6 Position Block

0.20 DIA.

(5.1)

0.75

(19.1)

3.31

(84.1)

3.93

(99.8)

* Dimensions in inches. To convert to millimeters, multiply by 25.4.
