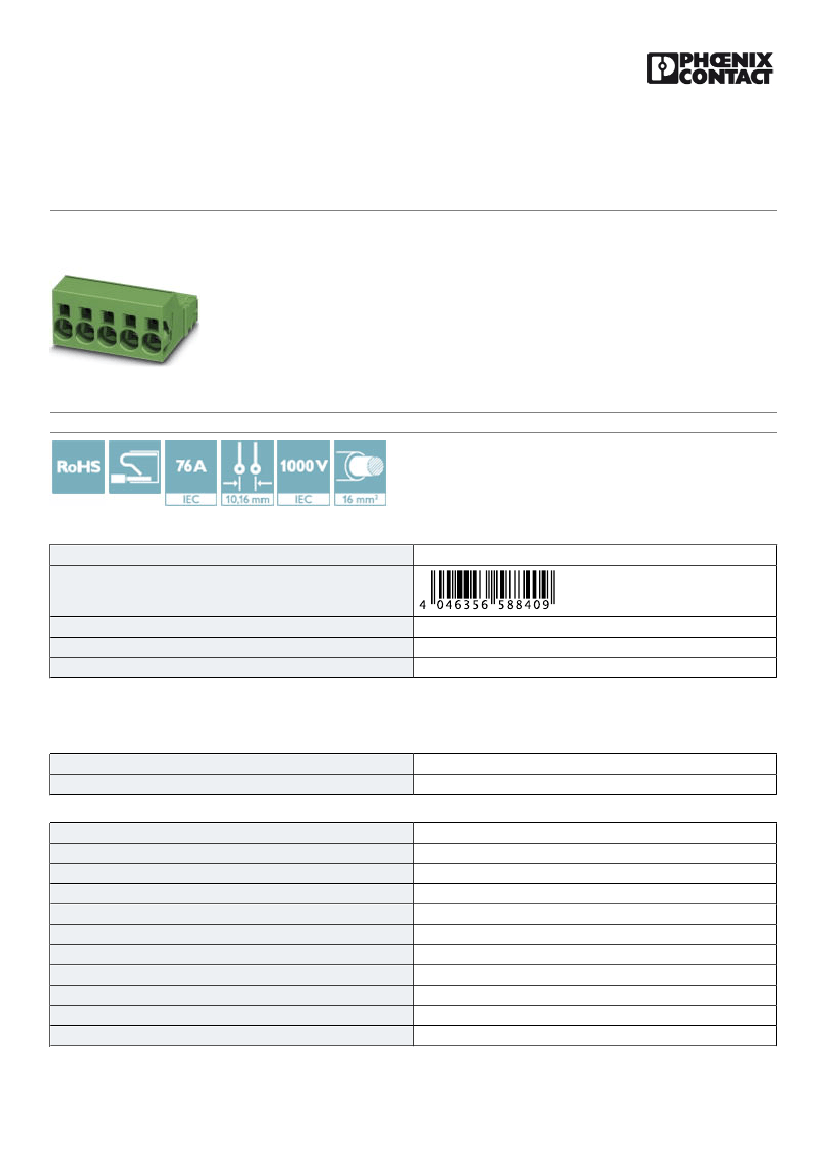

Printed-circuit board connector - ISPC 16/ 2-ST-10,16 BK - 1702478
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 76 A, Rated voltage (III/2): 1000 V, Number of positions: 2, Pitch: 10.16
mm, Connection method: Push-in spring connection, Color: black, Contact surface: Silver
The illustration shows the 5-pos.
version
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356588409
85366990
Made to Order (non-returnable)
50 STK
Technical data
Dimensions
Pitch
Dimension a
10.16 mm
10.16 mm
General
Range of articles
Type of contact
Number of positions
Connection method
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
ISPC 16/..-ST
Male connector
2
Push-in spring connection
I
8 kV
8 kV
6 kV
1000 V
1000 V
1000 V
11/14/2016 Page 1 / 4
https://www.phoenixcontact.com/hq/products/1702478
Printed-circuit board connector - ISPC 16/ 2-ST-10,16 BK - 1702478
Technical data
General
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Stripping length
Screw thread
Tightening torque, min
EN-VDE
76 A
16 mm²
76 A (with 16 mm² conductor cross section)
PA
V0
18 mm
M4
1.8 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.75 mm²
16 mm²
0.75 mm²
16 mm²
0.75 mm²
0.75 mm²
10 mm²
18
4
0.75 mm²
6 mm²
0.75 mm²
6 mm²
0.75 mm²
0.75 mm²
4 mm²
20
4
Conductor cross section flexible, with ferrule without plastic sleeve max. 16 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
11/14/2016 Page 2 / 4
https://www.phoenixcontact.com/hq/products/1702478
Printed-circuit board connector - ISPC 16/ 2-ST-10,16 BK - 1702478

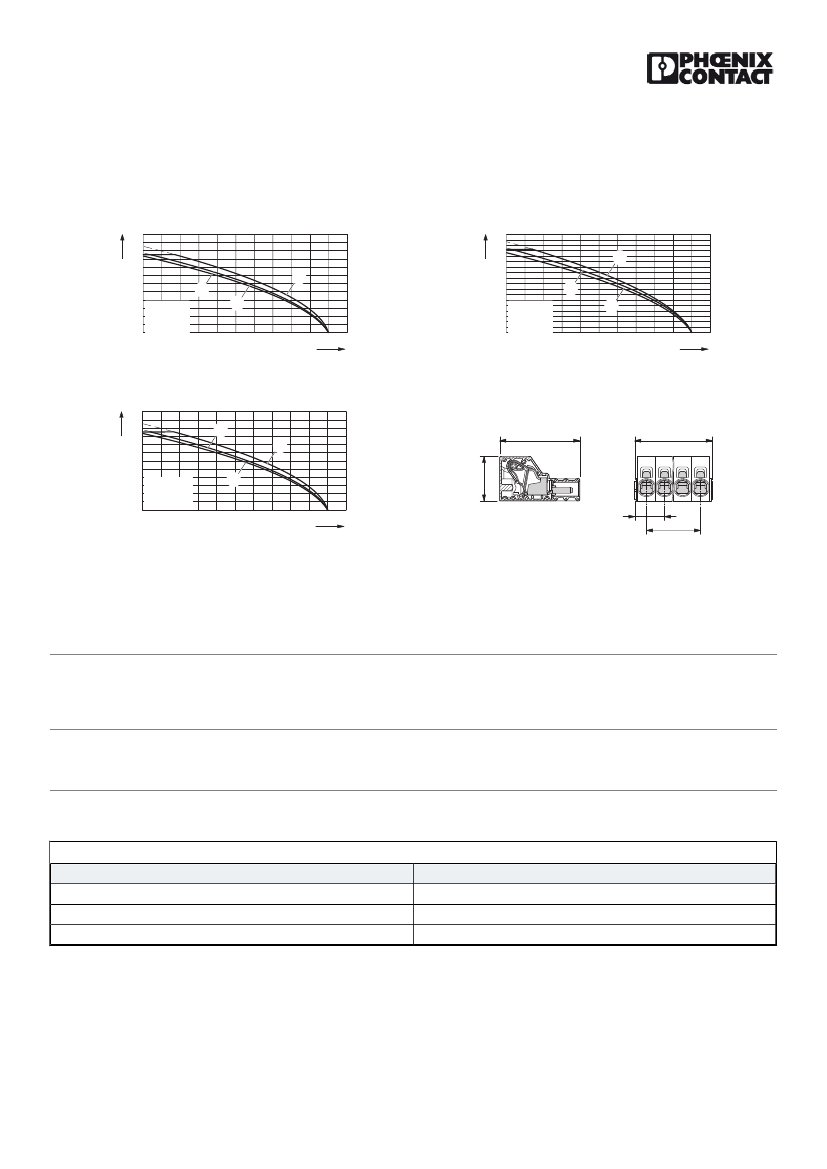

Drawings
Diagram
Current carrying capacity [A]
80
64
48
32
16
0
0
1
= 2-pos.
2
= 5-pos.
3
= 9-pos.
20
40
Diagram
Current carrying capacity [A]
90
80
70
60
50
40
30
20
10
0
0
96
1
2
1
= 2-pos.
2
= 5-pos.
3
= 9-pos.
20
40
1
2
3
60
80
100
3
60
80
100
Ambient temperature [°C]
Ambient temperature [°C]
Diagram
Current carrying capacity [A]
Dimensional drawing
96
80
64
48
32
16
0
0
1
= 2-pos.
2
= 5-pos.
3
= 9-pos.
20
40
2
1
3
60
80
100
45,1
a+13,2
25,1
6,6
10,16
a
Ambient temperature [°C]
Derating curve for: ISPC 16/..-ST-10,16 with IPCV 16/..-G-10,16
Approvals
Approvals
Approvals
SEV / UL Recognized / cUL Recognized / IECEE CB Scheme / EAC / cULus Recognized
Ex Approvals
Approval details
SEV https://www.electrosuisse.ch/en/meta/shop/product-certificates.html IK-3431
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
16
76 A
1000 V
11/14/2016 Page 3 / 4
https://www.phoenixcontact.com/hq/products/1702478
Printed-circuit board connector - ISPC 16/ 2-ST-10,16 BK - 1702478
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
20-4
66 A
600 V
C
20-4
66 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
20-4
66 A
600 V
C
20-4
66 A
600 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ CH-8077
76 A
1000 V
EAC B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
