54722-0507

Description
Board to Board & Mezzanine Connectors 40CKT RECPT VERT DR
CategoryThe connector    The connector
File Size32KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

54722-0507 Online Shopping

Suppliers Part Number Price MOQ In stock
54722-0507 - - View Buy Now

54722-0507 Overview

Board to Board & Mezzanine Connectors 40CKT RECPT VERT DR

54722-0507 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionMolex SLIMSTACK Series 0.5mm 50 Way 2 Row Straight PCB Socket Surface Mount Board to Board
Other featuresSLIMSTACK
body width0.197 inch
subject depth0.045 inch
body length0.594 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance40 mΩ
Contact styleBELLOWED TYPE
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability30 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.973 N
Insulation resistance100000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number54722
Plug contact pitch0.02 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.5118 mm
Plating thickness10u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts50
UL Flammability Code94V-0
Evacuation force-minimum value.0973 N
Base Number Matches1
This document was generated on 07/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0547220507
Active
0.50mm (.020") Pitch SlimStack™ Receptacle, Surface Mount, Dual Row, Vertical,
1.50mm (.059") Stacking Height, Lower Circuit Size Version, 50 Circuits
Documents:
3D Model
Drawing (PDF)
Product Specification PS-54722-009 (PDF)
RoHS Certificate of Compliance (PDF)
Series
PCB Receptacles
54722
Board-to-Board, Signal
Embossed Tape Reel Height: 380mm (14.961")
SlimStack™

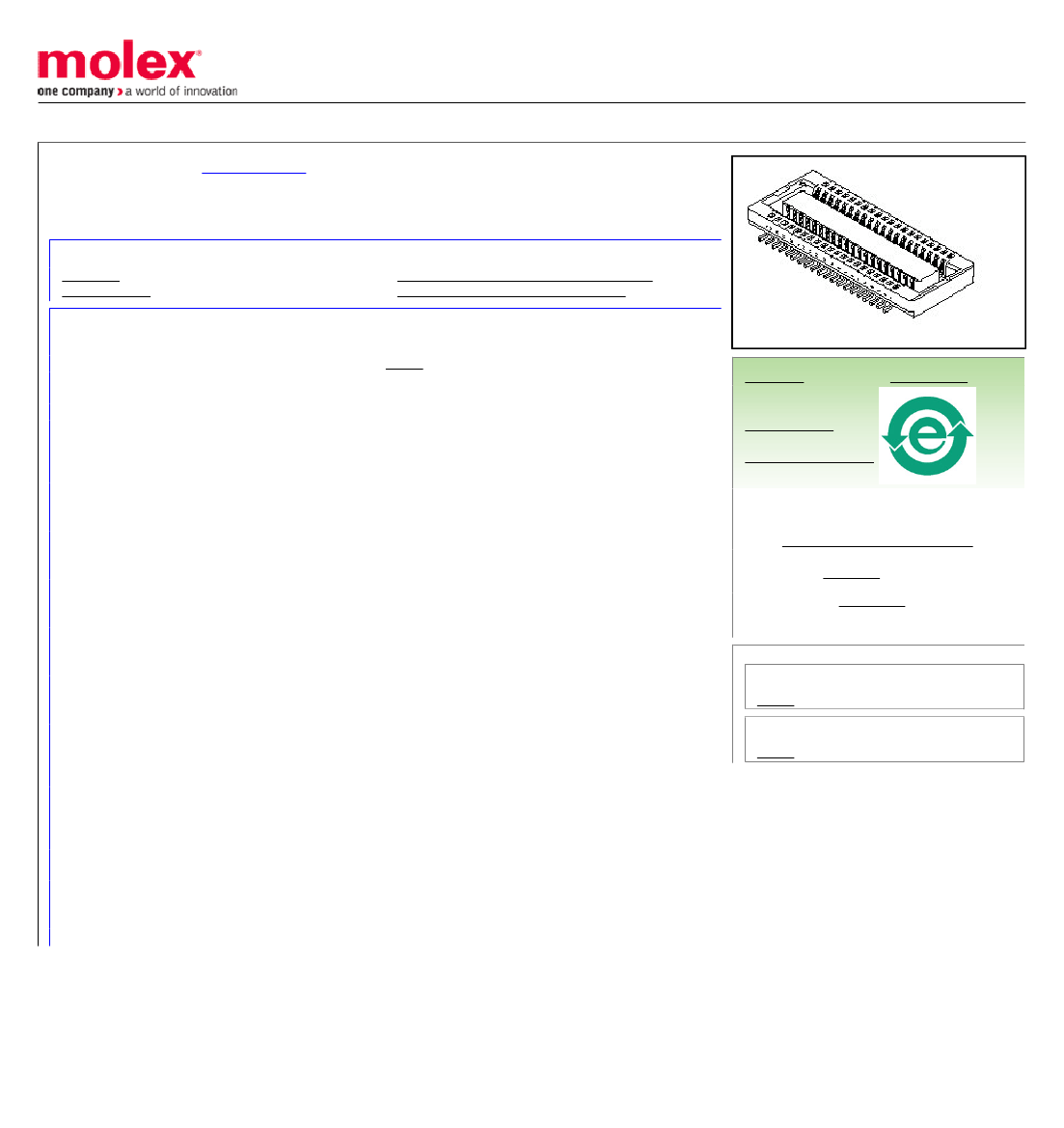

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Comments
Product Name
Physical
Circuits (Loaded)
Color - Resin
Glow-Wire Compliant
Mated Height
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
50
Black
No
1.50mm (.059")
Phosphor Bronze
Gold
Gold
High Temperature Thermoplastic
2
Vertical
No
None
1.60mm (.063")
Embossed Tape on Reel
0.50mm (.020")
No
N/A
-25°C to +85°C
Surface Mount
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
54722Series
Mates With
55560 PCB Header
Electrical
Current - Maximum per Contact
Voltage - Maximum
0.5A
50V
Material Info
Reference - Drawing Numbers
Product Specification
PS-54722-009, RPS-54037-011, RPS-54722-018,
RPS-54722-019, RPS-54722-025, RPS-54722-026,
RPS-54722-029, RPS-54722-030, RPS-54722-034
SD-54722-007, SD-54722-008
Sales Drawing
This document was generated on 07/18/2011
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
