M80-6140642 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-6140642

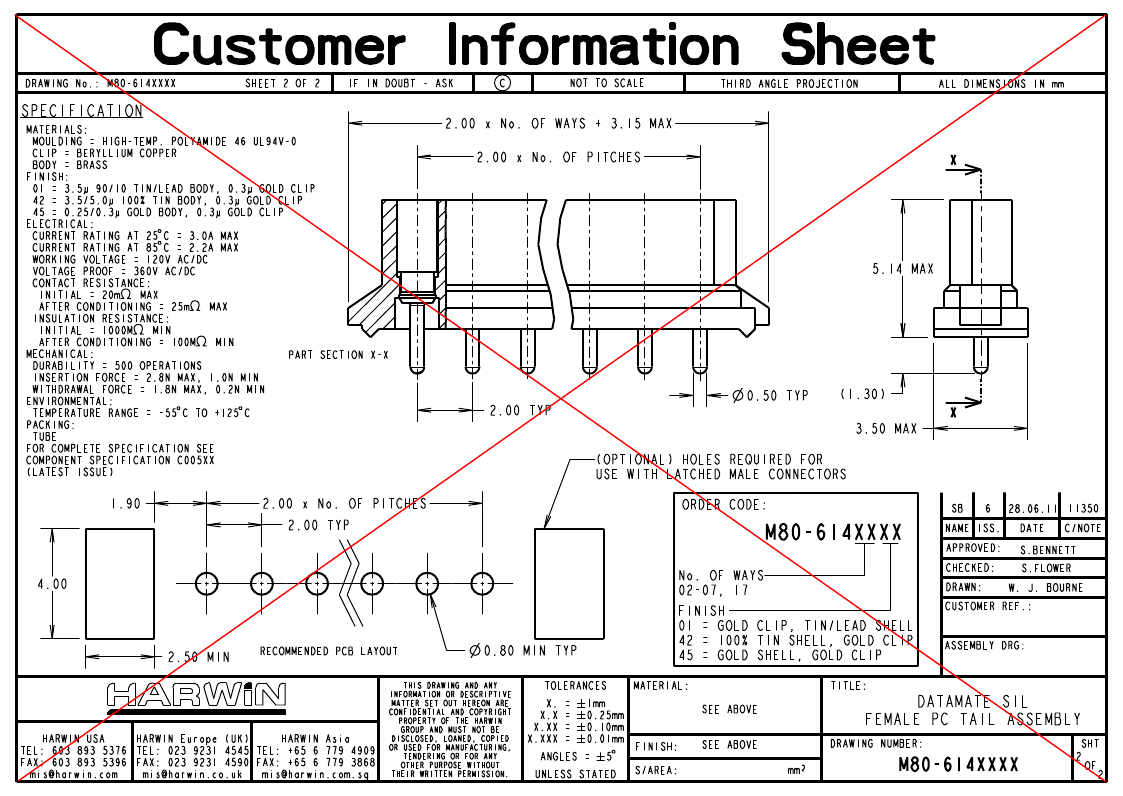

M80-6140642: DescriptionHeaders & Wire Housings 6 POS SIL FEMALE VERT 1.3mm TL TIN; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-6140642 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	M80-6140642	-	-	View	Buy Now

M80-6140642 Overview

Headers & Wire Housings 6 POS SIL FEMALE VERT 1.3mm TL TIN

M80-6140642 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.137 inch
subject depth	0.202 inch
body length	0.596 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	12u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.051 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0
Evacuation force-minimum value	.199882 N

Preview

Download Datasheet

View All

OBSOLETE
