PCB Accessories
Spring Insertion Tool
Anvils and Dies

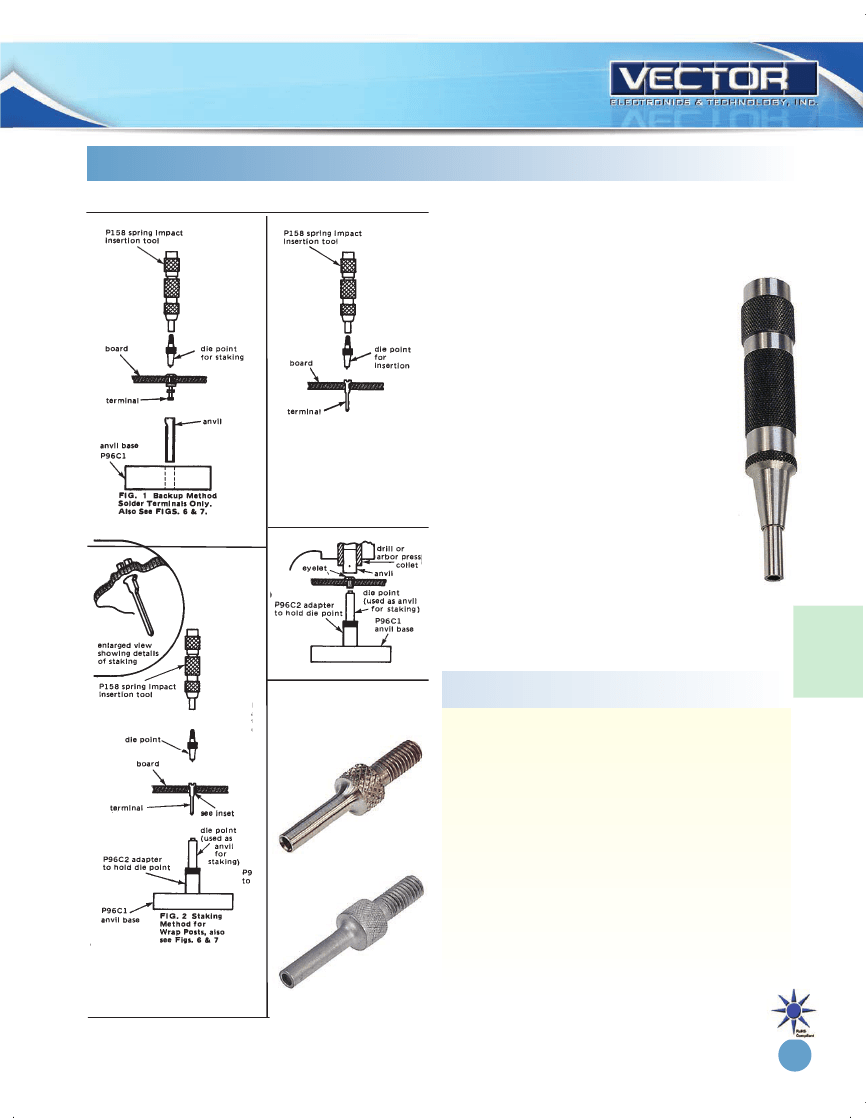

Insertion/Staking Methods for Terminals
P158 Spring Impact
Insertion Tools
Provide An Easy Method of Manually
Installing:
Terminals
Pins
Wrap Posts Eyelets
This spring actuated terminal insertion
tool with interchangeable die points
provides a happy compromise
between slow manual tools and
expensive machines for installing ter-
minals in Vectorbord . The P158
impact tool with associated die points
has an adjustable spring which sup-
plies installation impact force. Since
the impact is not governed by human
strength, each terminal is easily and
consistently installed with the optimum pres-
sure. Also available are anvils.
Terminal
Reference
K24
K30, K36
K31
T44Series
T44Series
T46-2
T46-3
T46-5
T49Series
T49Series
T68Series
T68Series
R30Series
R31Series
R32Series
R52Series
T125
T126
Req’d
Hole
Dia.
.042”
.042”
.042”
.042”
.042”
.042”
.042”
.042”
.042”
.042”
.042”
.042”
.055”
.055”
.042”
.055”
.042”
.042”
Bd
Thk.
1/16”
1/16”
3/32”
1/16”
3/32”
1/16”
1/16”
1/16”
1/16”
1/16”
1/16”
1/16”
1/16”
1/16”
1/16”
3/32”
1/16”
3/32”
1/16”
1/8”
1/16”
1/16”
Die
Part
No.
D7-2
D7-2
D7-2
D11
D11
D7-2
D7-4
D7-2
D8
D7
D17
D17
D10
D10
D9
D19
D19
D20
Anvil
Part
No.
N/A
N/A
N/A
D7-4
D7
N/A
N/A
N/A
D7-4
D8
D7-4
D7
N/A
N/A
N/A
N/A
A19
A19
Die/Anvil
Intended
For
Insertion
Insertion
Insertion
Insertion
Staking
Insertion
Insertion
Insertion
Insertion
Staking
Insertion
Staking
Insertion
Insertion
Insertion
Insertion
Insertion
Insertion
Fig. 3 Backup Method
Wrap Post Only
Tools
Description
Inbord Pin
Inbord Pin
Inbord Pin
Sq. Pin
Sq. Pin
Terminal
Terminal
Terminal
Sq. Pin
Sq. Pin
Sq. Pin
Sq. Pin
Socket Pin
Socket Pin
Socket Pin
Socket Pin
Terminal
Terminal
D9 - Die
D10 - Die
www.vectorelect.com
800-423-5659
77
