IDT7MB6040S25K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT7MB6040S25K

IDT7MB6040S25K: DescriptionCache SRAM Module, 32KX64, 24ns, CMOS; Categorystorage storage; File Size144KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT7MB6040S25K Overview

Cache SRAM Module, 32KX64, 24ns, CMOS

IDT7MB6040S25K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant
ECCN code	3A991.B.2.A
Maximum access time	24 ns
Maximum clock frequency (fCLK)	25 MHz
I/O type	COMMON
JESD-30 code	R-XQMA-P128
JESD-609 code	e0
memory density	2097152 bit
Memory IC Type	CACHE SRAM MODULE
memory width	64
Number of functions	1
Number of terminals	128
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX64
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	QIP
Encapsulate equivalent code	QI128,2.1/2.3,100
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum slew rate	4.5 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED

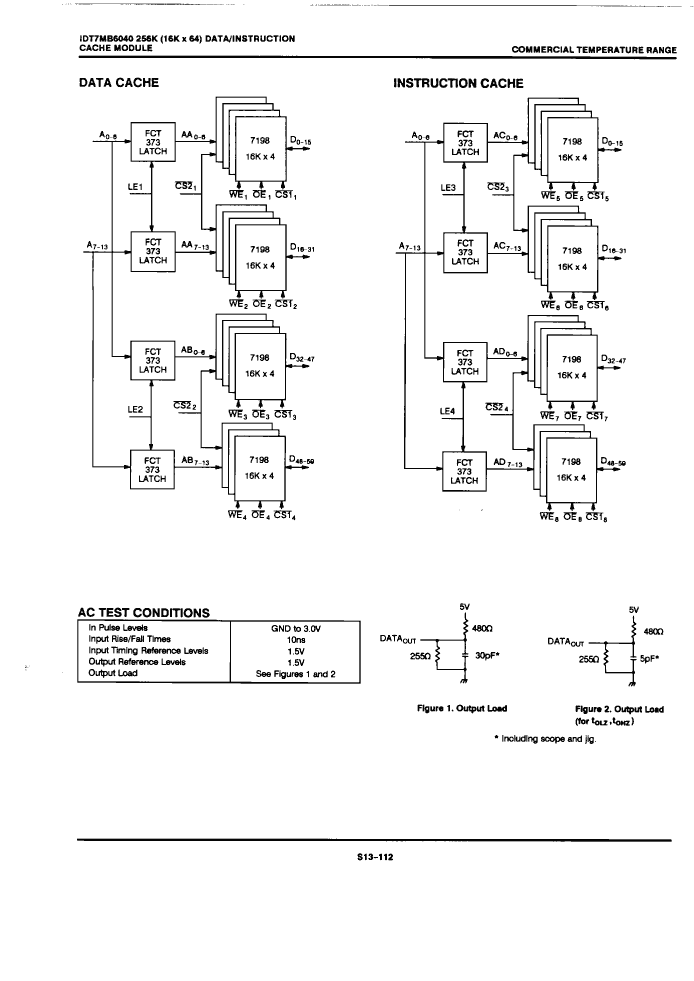

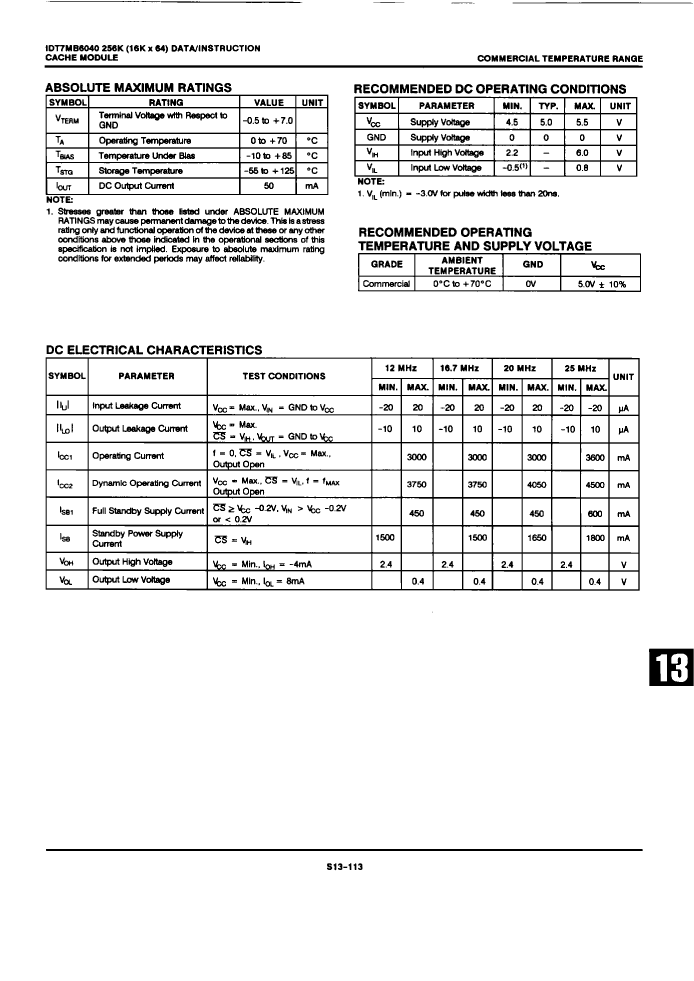

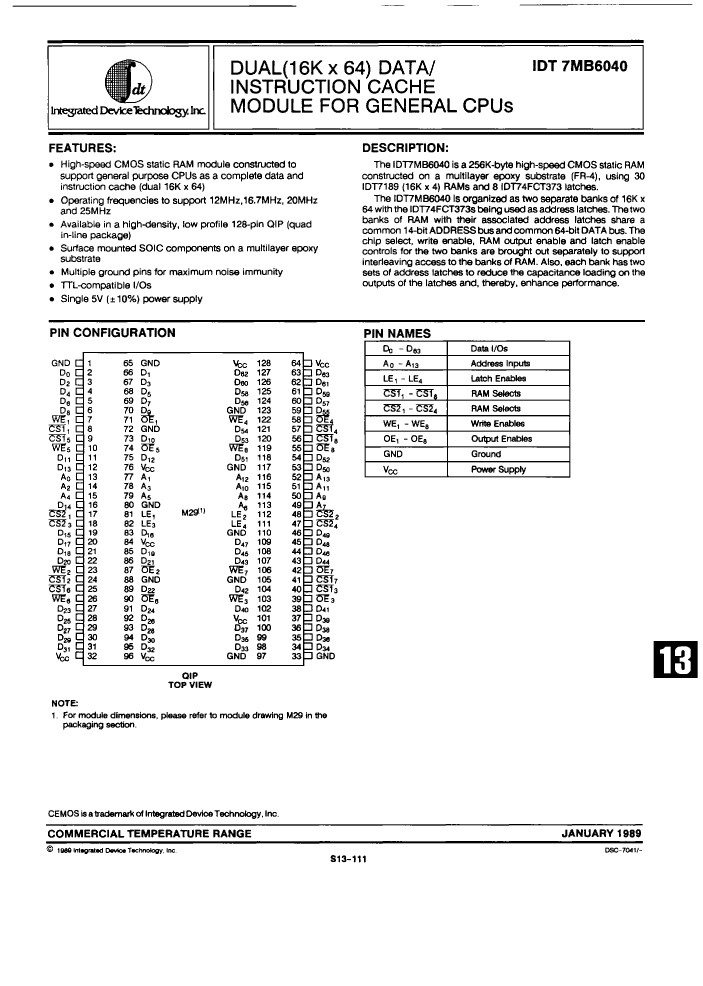

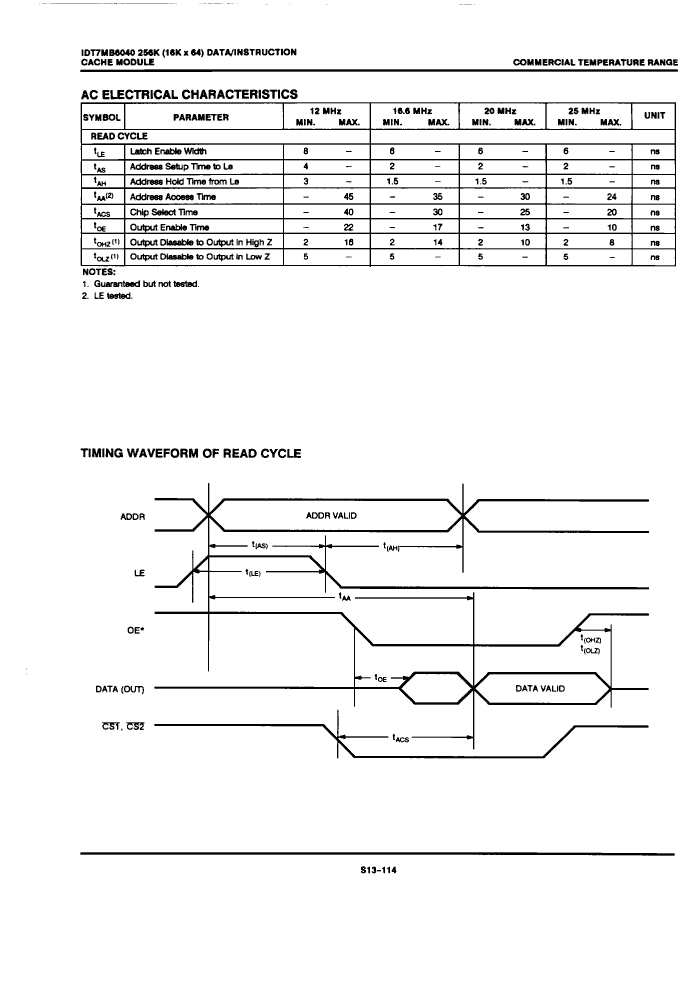

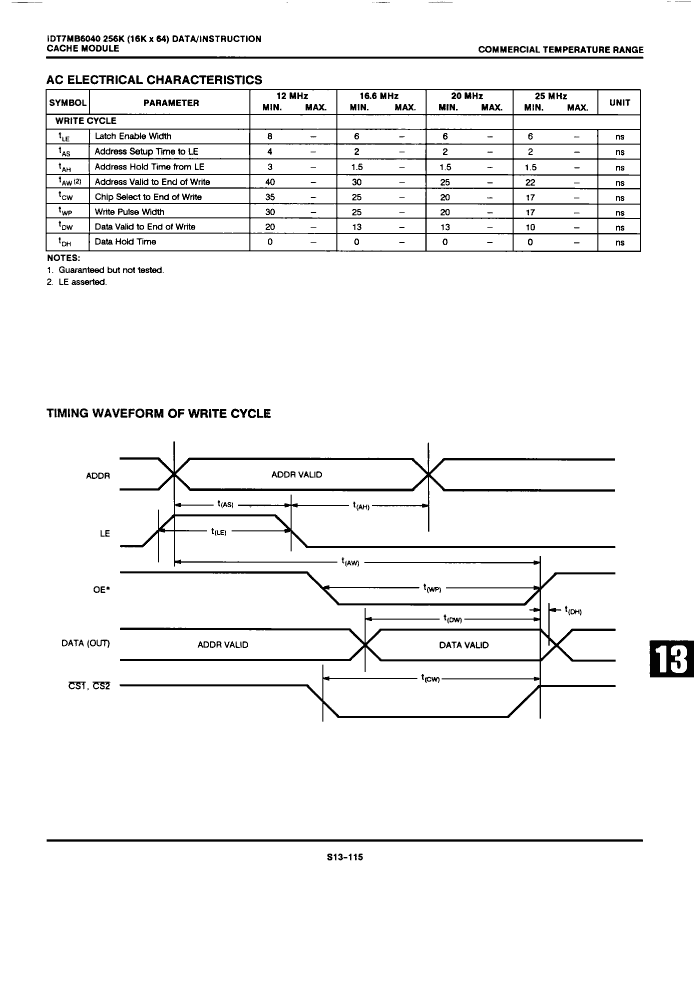

Preview

Download Datasheet

View All

IDT7MB6040S25K Related Products

	IDT7MB6040S25K	IDT7MB6040S12K	IDT7MB6040S16K	IDT7MB6040S20K
Description	Cache SRAM Module, 32KX64, 24ns, CMOS	Cache SRAM Module, 32KX64, 45ns, CMOS	Cache SRAM Module, 32KX64, 35ns, CMOS	Cache SRAM Module, 32KX64, 30ns, CMOS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	24 ns	45 ns	35 ns	30 ns
Maximum clock frequency (fCLK)	25 MHz	12 MHz	16.7 MHz	20 MHz
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-XQMA-P128	R-XQMA-P128	R-XQMA-P128	R-XQMA-P128
JESD-609 code	e0	e0	e0	e0
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE	CACHE SRAM MODULE
memory width	64	64	64	64
Number of functions	1	1	1	1
Number of terminals	128	128	128	128
word count	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	32KX64	32KX64	32KX64	32KX64
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	QIP	QIP	QIP
Encapsulate equivalent code	QI128,2.1/2.3,100	QI128,2.1/2.3,100	QI128,2.1/2.3,100	QI128,2.1/2.3,100
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	4.5 mA	3.75 mA	3.75 mA	4.05 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
