CDRH127L125NP-470MC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH127L125NP-470MC

CDRH127L125NP-470MC: DescriptionFixed Inductors SMD Power Inductor; CategoryPassive components inductor; File Size274KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDRH127L125NP-470MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CDRH127L125NP-470MC	-	-	View	Buy Now

CDRH127L125NP-470MC Overview

Fixed Inductors SMD Power Inductor

CDRH127L125NP-470MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	CHIP
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	11 weeks
uppercase and lowercase codes	4848
structure	Rectangular
core material	Ferrite
DC Resistance	0.0832 Ω
Nominal inductance(L)	47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	8 mm
Package length	12.3 mm
Package form	SMT
Package width	12.3 mm
method of packing	TR
Maximum rated current	3.1 A
Guideline	AEC-Q200
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

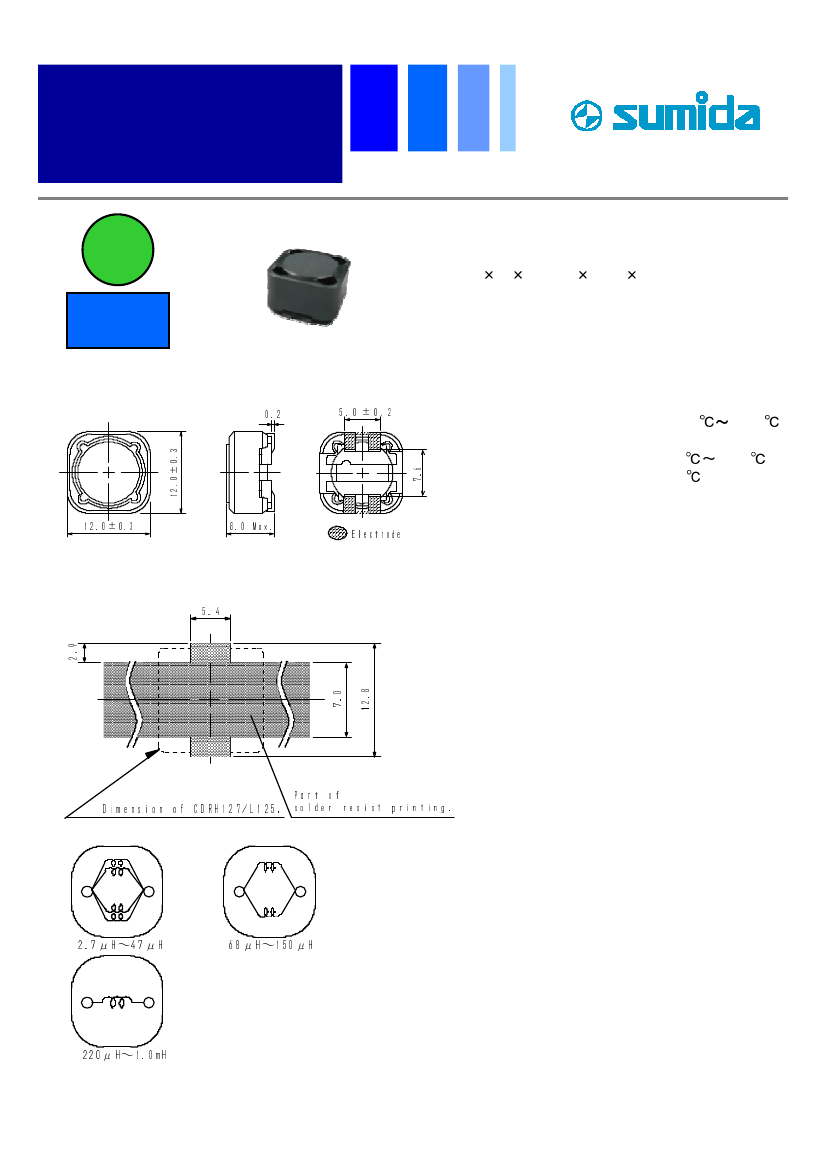

SMD Power Inductor

CDRH127/L125

Description

• Ferrite drum core construction.

• Magnetically shielded.

• L W H: 12.3 12.3 8.0 mm Max.

• Product weight: 4.1g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

• Qualified to AEC-Q200.

Environmental Data

• Operating temperature range: -40

+125

(including coil’s self temperature rise)

• Storage temperature range: -40

+125

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

• 13.0”diameter reel

• 500pcs per reel

Applications

• Automotive.

RoHS

Halogen

Free

Dimension - [mm]

2 .0± 0 .5

2.0

Land pattern and Schematics - [mm]

4 .5

Page 1 of 4

Revised: 7-Jan-14

℃

℃ ½℃

× ×

． g ni t n ir p ts i s er r ed l os . 52 1 L /7 2 1 HR D C f o n o i sn e m iD

f o t r aP

edortcelE

Hμ051½Hμ86

.xaM 0.8

Hm0.1½Hμ022

Hμ74½Hμ7.2

3.0±0.21

CDRH127L125NP-470MC Related Products

	CDRH127L125NP-470MC	CDRH127L125NP-100MC
Description	Fixed Inductors SMD Power Inductor	Fixed Inductors SMD Power Inductor
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	SUMIDA	SUMIDA
package instruction	CHIP	CHIP
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Factory Lead Time	11 weeks	11 weeks
uppercase and lowercase codes	4848	4848
structure	Rectangular	Rectangular
core material	Ferrite	Ferrite
DC Resistance	0.0832 Ω	0.0236 Ω
Nominal inductance(L)	47 µH	10 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Package height	8 mm	8 mm
Package length	12.3 mm	12.3 mm
Package form	SMT	SMT
Package width	12.3 mm	12.3 mm
method of packing	TR	TR
Maximum rated current	3.1 A	6 A
Guideline	AEC-Q200	AEC-Q200
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES
surface mount	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz
Tolerance	20%	20%
Base Number Matches	1	1
