IWTX47R0BEEB6R3J11

Description
Wireless Charging Coils Transmitter 6.3uH 7A WPC-Compliant
CategoryPassive components
File Size69KB,2 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

IWTX47R0BEEB6R3J11 Online Shopping

Suppliers Part Number Price MOQ In stock
IWTX47R0BEEB6R3J11 - - View Buy Now

IWTX47R0BEEB6R3J11 Overview

Wireless Charging Coils Transmitter 6.3uH 7A WPC-Compliant

IWTX47R0BEEB6R3J11 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategoryWireless Charging Coils
RoHSDetails
Inductance6.3 uH
FunctionTransmitter
Maximum DC Resistance38 mOhms
Tolerance5 %
TypeWireless Charging Transmitter Coil/Shield
Q Minimum190
Number of Coils1 Coil
Diameter47 mm
Height4.9 mm
PackagingBulk
Operating Temperature Range- 55 C to + 125 C
Self Resonant Frequency22 MHz
Maximum Operating Temperature+ 125 C
Minimum Operating Temperature- 55 C
Factory Pack Quantity60

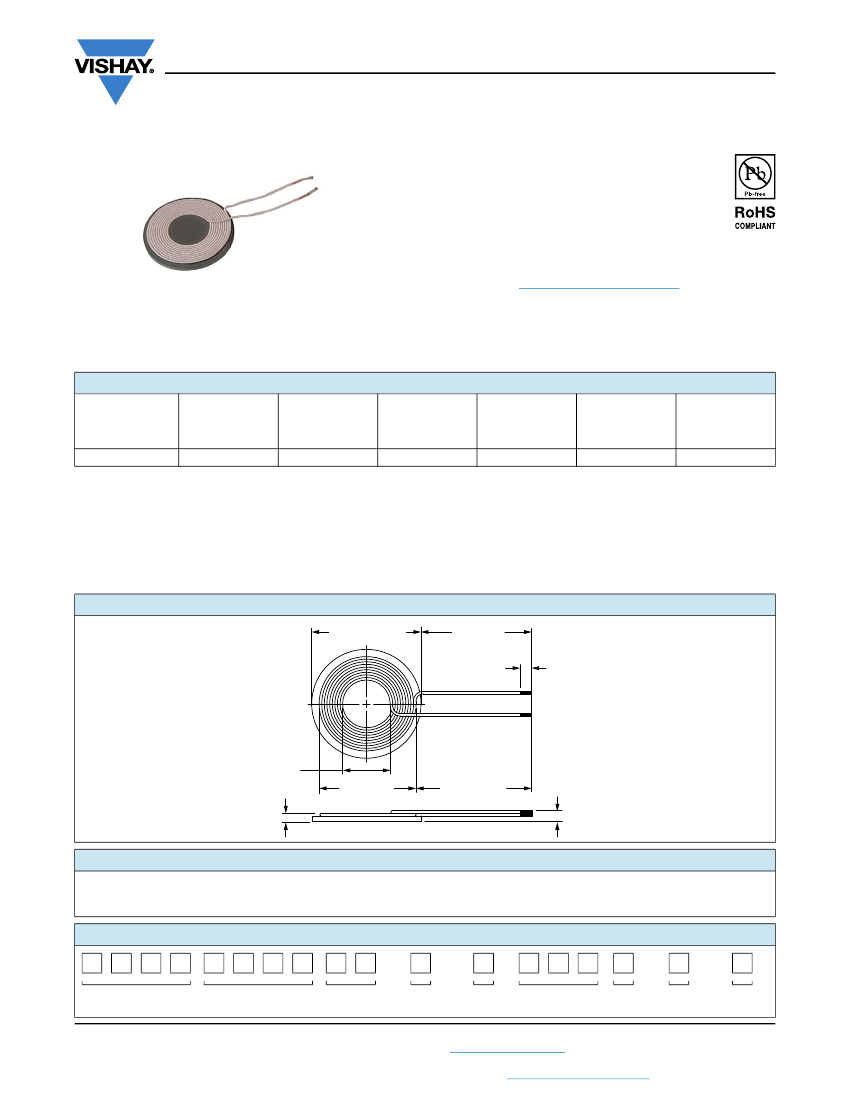

IWTX-47R0BE-11 6.3 μH
www.vishay.com
Vishay Dale
Wireless Charging Transmitter Coil/Shield
FEATURES
• Wireless charging transmitter coil
• High permeability shielding for wireless
charging
• High saturation powdered iron - not affected by
permanent locating magnets
• Durable construction
• AEC-Q200 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
SHIELD MATERIAL CHARACTERISTICS
Permeability: ~ 24
Resistivity: > 10 M at 100 V
Core loss: 4000 mW/cc at 500 gauss, 250 kHz
Magnetic saturation: 50 % at 4000 gauss (~ 350 O
e
)
HEAT RATING
CURRENT
DC TYP.
(3)
(A)
7
SATURATION
CURRENT
DC TYP.
(4)
(A)
22
STANDARD ELECTRICAL SPECIFICATIONS
with Test Coil
L
0
INDUCTANCE
+5 % AT 200 kHz,
0.25 V, 0 A
(μH)
6.3
DCR
± 10 % AT 25 °C
(m)
38
Q AT 200 kHz
(TYP.)
190
SELF
RESONANT
FREQUENCY
(MHz)
22
EFFICIENCY
(6)
(%)
> 70
Notes
(1)
All test data is referenced to 25 °C ambient.
(2)
Operating Temperature Range -55 °C to +105 °C.
(3)
DC current (A) that will cause an approximate
T
of 40 °C.
(4)
DC current (A) that will cause L to drop approximately 20 %.
0
(5)
The part temperature (ambient + temp rise) should not exceed 105 °C under worst case operating conditions. Circuit design, component
placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be
verified in the end application.
(6)
When tested using BQ Tesla 500212 Transmitter Chipset, BQ51013 Receiver Chipset and IWAS-4832FF-50 as receiver coil with 2.7 mm
spacing. Testing performed per WPC guidelines.
DIMENSIONS
in inches [millimeters]
Ø 1.851 ± 0.010
(Ø 47.00 ± 0.25)
1.85 ± 0.08
(47.0 ± 2.0)
0.197 ± 0.039
(5.00 ± 1.00)
tinned nominal
0.807 ± 0.020
(20.5 ± 0.5)
1.69 ± 0.04
(43.0 ± 0.5)
1.96 ± 0.04
(50.00 ± 1.0)
0.193 (4.90) max.
0.162 (4.1) max.
DESCRIPTION
IWTX-47R0BE-11
MODEL
5%
INDUCTANCE TOLERANCE
EB
PACKAGE CODE
e3
JEDEC
®
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
W
T
X
4
7
R
0
B
E
E
LEAD
(Pb)-FREE
B
PACKAGE
6
R
3
J
TOL.
1
MATERIAL
1
LEAD
CONFIG.
MODEL
SHIELD SIZE
SHIELD
THICKNESS
INDUCTANCE
VALUE
Revision: 02-Feb-17
Document Number: 34429
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
