Gore-Shield
gs2100 emi gaskets
®
Spaceflight and
Military Approved
Summary
GORE-SHIELD
®
GS2100 EMI Gasket is a conductive, adhesive
backed, EMI gasketing material that is moderately soft and is
approved for spaceflight and military applications.
GORE-SHIELD
®
GS2100 EMI Gaskets can be supplied in die-cut
part forms or in slit width rolls. Slit width material is ideal for
manual “peel and stick” EMI gasketing applications.
GORE-SHIELD
®
GS2100 EMI Gaskets consist of a carbon-filled
cellular PTFE matrix, a conductive pressure sensitive adhesive,
and a PET carrier film (see Figure 1).
Applications
EMI shielding for wireless infrastructure and microwave
equipment, high frequency cable connectors, and
telecommunications equipment in addition to high frequency
portable electronic devices.
Features and Benefits
•
•
•
•
•
•
Global spaceflight and military approvals
Proven shielding effectiveness
Excellent reliability through Accelerated Life Testing (ALT)
Flame retardant (UL-94 V-0)
Broad temperature range (–45°C – 120°C)
Maintains environmental seal
Design Considerations
When optimizing a gasket shielding solution, consider the
housing design as well as the EMI gasket performance.
Important considerations in the housing design include flatness,
surface roughness, material type, rigidity, contact area, tolerance
take-up, conductivity, fastener type, and fastener locations.
Key factors in an EMI gasket include softness, tolerance take-up,
conductivity (DC resistance), and shielding effectiveness both
before and after Accelerated Life Testing (ALT).
Gore application engineers can provide expert design assistance
and rapid prototyping for your EMI shielding needs. Contact Gore
for additional information.
Thickness Options
(Nominal)
Inch
0.010
0.020
0.040
0.060
0.080
mm
0.25
0.51
1.02
1.52
2.03
RoHS Status
RoHS Material*
Lead (Pb)
Content
Cadmium (Cd)
Content
Hexavalent
Chromium (Cr6)
Content
Mercury (Hg)
Content
Bromine
Compounds
Pass/Fail
Pass
Pass
Pass
Pass
Pass

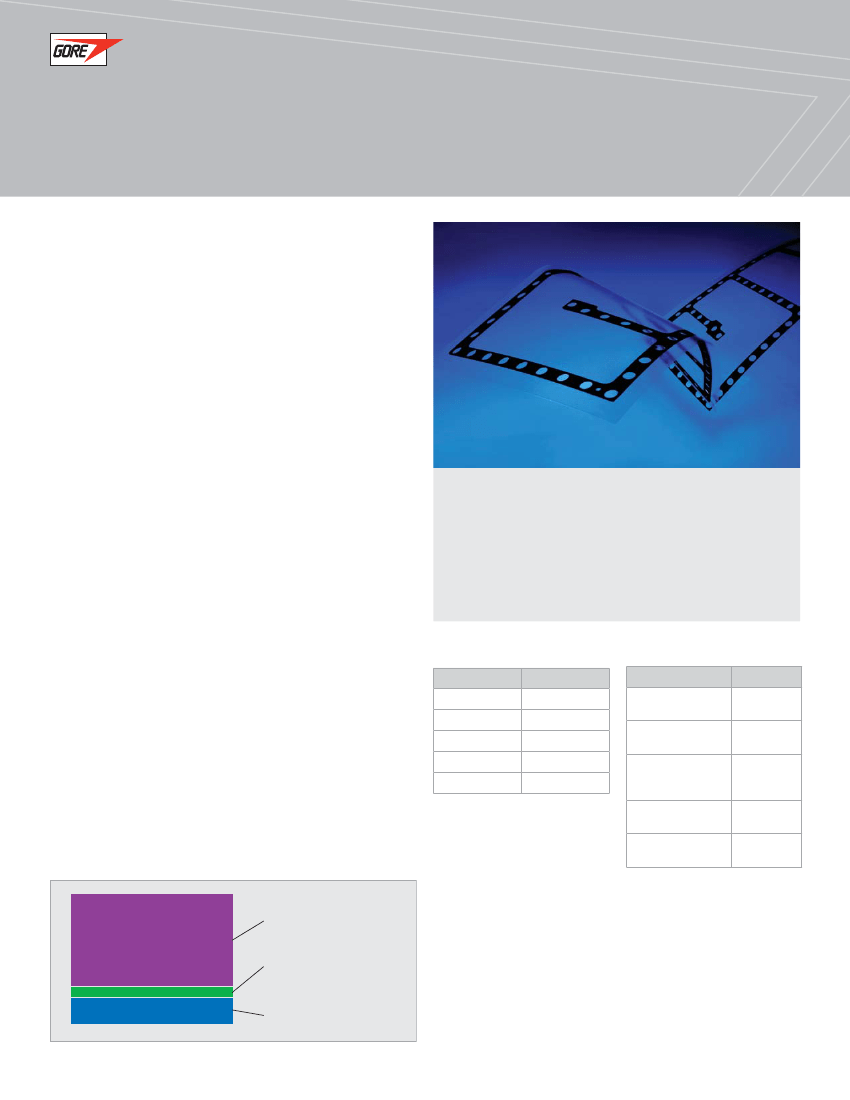

Figure 1
PTFE
*W. L. Gore & Associates declares that
we do not intentionally add substances
listed in Directive 2002/95/EU to GORE-
SHIELD
®
GS2100 EMI Gasket Material.
Independent lab tests have been
performed and results are available
upon request.
Conductive Pressure
Sensitive Adhesive
PET Carrier Film
Gore-Shield
gs2100 emi gaskets
®
Nominal Material Properties
Hardness
Density (gm/cc)
Fire Safety Rating (UL-94)
(Shore A) 45
0.34
V-0
Military Specifications and Standards
DEF STAN 59-103
DESC 92017
MIL-G-83528
EMI/EMP Gasket
Components
Gaskets, EMI/RFI
Shielding, Expanded PTFE
Gasketing Material,
Conductive Elastomer,
Shielding Gasket, EMI/RFI
Environmental Test
Methods and Engineering
Guidelines
Attenuation
Measurements for
Enclosures
Performance Against
Standards
General
Shipped material shall be capable of meeting the
performance characteristics specified herein when tested
against the following methods.
Volume Resistivity
DESC 92017
MIL-G-83528
Shielding Effectiveness
DESC 92017
MIL-G-83528
Electromagnetic Discharge
Charge
<150
volts 25°C,
45% R.H. loss less than
100 volts within 0.5 sec
Pass
“E” field – 100dB
200MHz to 18GHz
<1.5
ohm-cm (0.25mm
thick)
3.45 MPa (500 psi) load
Electrical Properties
Volume Resistivity
Shielding Effectiveness
(with adhesive)
1.5 ohm-cm @ 500psi,
Ag electrodes
>45dB
@ 1GHz
(ARP 1705 Method)
MIL-STD-810
MIL-STD-285
Load and Shielding
Effectiveness vs. % Compression
GS2100 with Adhesive
800
700
600
Load, psi
500
400
300
200
100
0
0
10
20
30
40
% Compression
Load, psi
SE @ 2 GHz
Underwriter’s Laboratory Inc. Test Methods
UL-94 V-0
Flammability Test for
Materials
60
50
40
30
20
10
0
50
60
Electromagnetic Pulse (EMP) Survivability
DEF STAN 59-103
Shielding Effectiveness, dB
Reusability for EMI Seal
MIL-G-83528
Pass (>80db after 10
closings)
Pass
Temperature Operating Range
Without Adhesive
With Adhesive
Density/Specific Gravity
ASTM-D-1622-88
Corrosion Resistance
DEF STAN 59-103
Outgassing
Pass
0.34g/cc
–200°C – +200°C
–40°C – +95C
Applicable Specifications
and Standards
ASTM Standard Test Methods
F38 - Method B
F37
D1622
F104
D395
F36
D2240
E595
Creep Relaxation
Sealability of Gasket
Materials
Specific Gravity
Contaminant Resistance
Compression Set
Compressibility and
Recovery Gasket Materials
Durometer Hardness
Outgassing in a Vacuum
European Space Agency Specifications and Standards
ESA PSS-01-702
NASA ASTM-E-595
Total Mass Loss and
Collected Volatile
Condensable Materials
from Outgassing in a
Vacuum
ASTM-E-595 and ESA
PSS-01-702
Contaminant Resistance
DESC 92017,
MIL-G-83528, BS 3G
100-Part 2, and DEF STAN
59-103- Part 3/1
Vibration Resistance
DESC 92017 and MIL-G-
83528
Water Seal
DEF STAN 59-103/Part 3
and IP 65
Accelerated Life (Heat Aging)
MIL-G-83528 and DEF
STAN 59-103 - Part 3/1
Mold Growth
BS 2011 - Part 2-1J
Pass (<1% mass loss)
Pass
British Standard Specifications
BS 903
BS 2011
BS 3G 100
Methods of Testing
Vulcanized Rubber
Environmental Testing
General Requirements
for Part 2, Section 3
Equipment for Use in
Sub-Section 3.12 Aircraft,
Environmental Conditions,
Fluid Contamination
UV Resistance Part 106.4,
Method 3
Pass
Pass
Pass
BS 5713
None
GORE-SHIELD, GORE and designs are trademarks of W. L. Gore & Associates, Inc. ©2008 W. L. Gore & Associates, Inc.
North America
1 (800) 445-GORE (4673)
gore.com/emi
More international phone
numbers can be found at
gore.com/phone
Japan
+81 3 3570 8712
Korea
+82 2 393-3411
Taiwan
+886 2 8771 7799
Singapore
+65 6 733 2882
JK060331-01
Europe
+49 9144 6010
+44 1382 561511
International
1 (302) 292-5100
China: Beijing
+86 10 6510 2980
China: Shanghai
+86 21 6247 1999
China: Shenzhen
+86 755 8359 8262
Rev. 7-21-08
