5HD Overview

Standard LEDs - Through Hole LED Thru-Hole 5mm HE Red 635 nm

5HD Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerBivar
Reach Compliance Codeunknown
color@wavelengthOrange-Red
Maximum forward current0.03 A
Maximum forward voltage2.6 V
Lens typeDIFFUSED
Optoelectronic device typesSINGLE COLOR LED
total height8.8 mm
peak wavelength635 nm
perspective45 deg

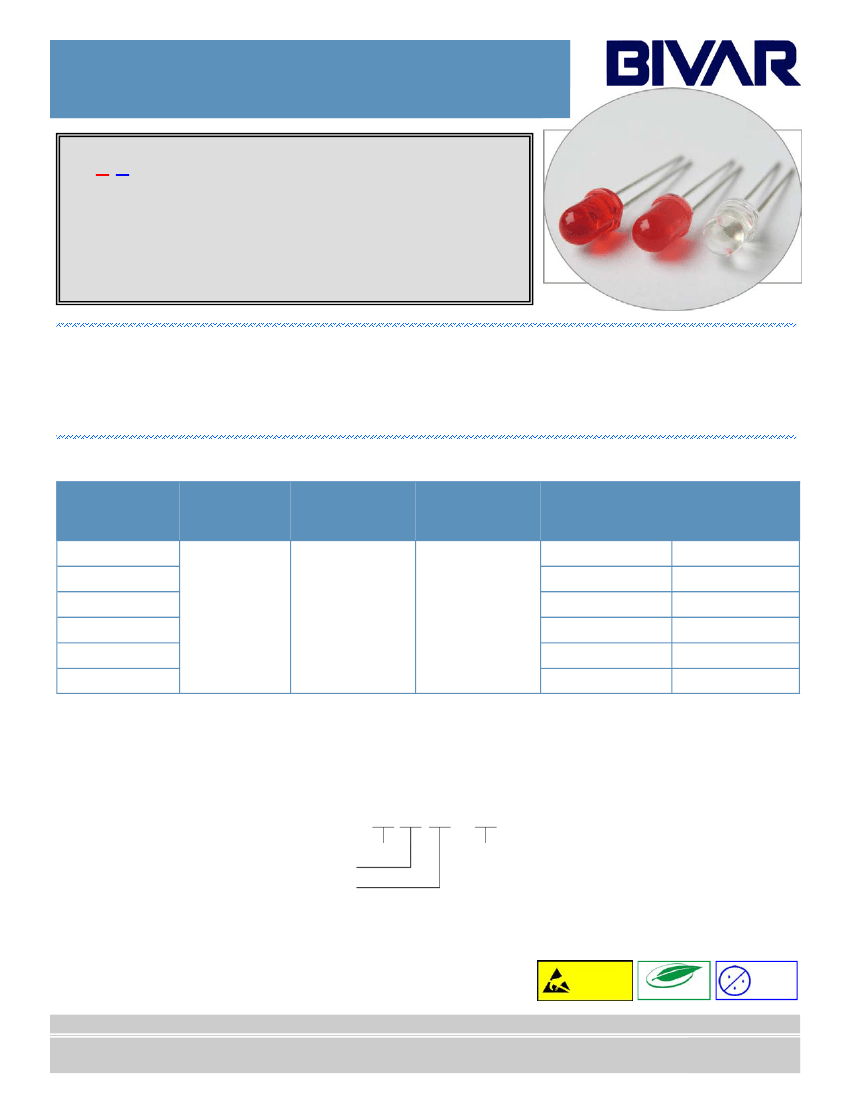

5mm (T1 ¾) Package Discrete LED
5mm (T1 ¾) Package Discrete LED
RED
RED
5HX-X
Industry Standard 5mm (T1 ¾) Package
RoHS Compliant
Water Clear (C), Diffused (D), and Tinted (T) Lenses

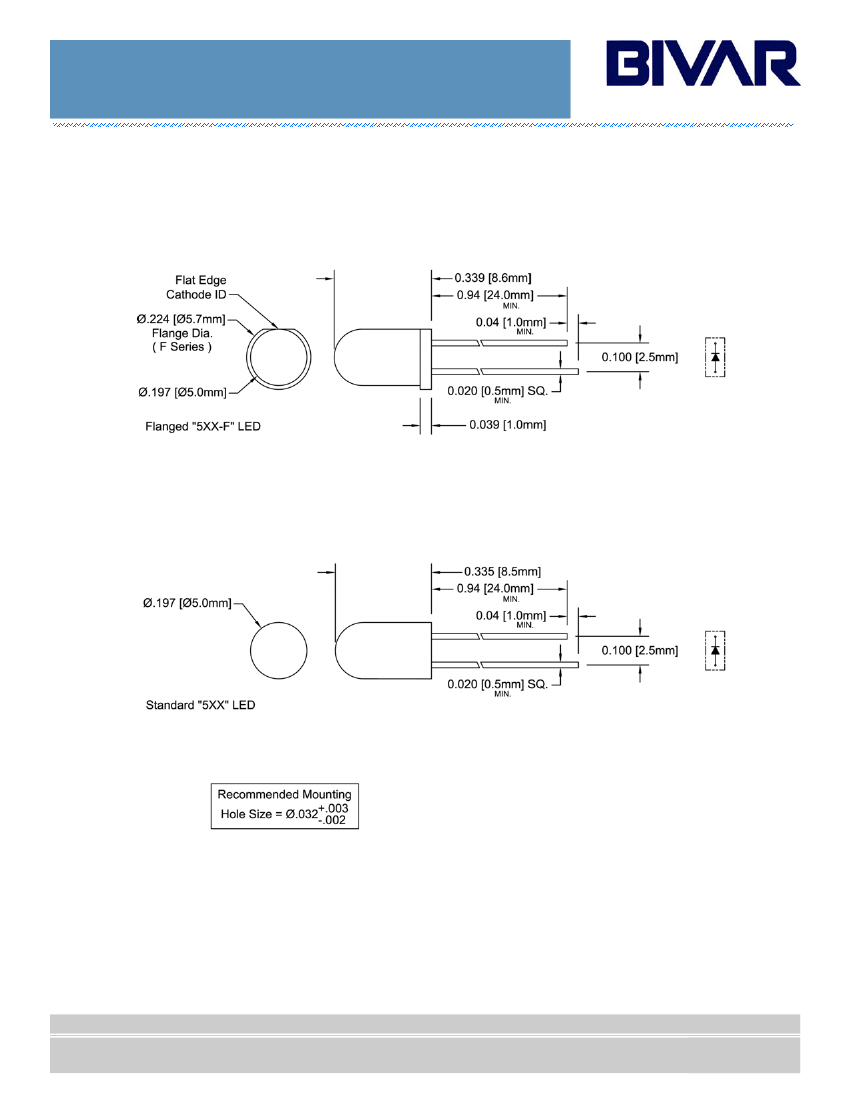

Available in Flange (F) and Standard (Blank) Lead Frame
styles
Ideal for Status Indication and Display
Bivar 5mm T1 ¾ Package LED may be used in almost any application. Bivar offers water clear LED
lens for maximum light output, diffused LED lens for uniform light output, and tinted lens to identify the
color of the LED. The Flange LED is ideal for Panel Mount Clip & Ring assemblies and the Standard
Lead frame LED is ideal for vertical spacer assemblies without lead bends.
Part Number
5HC-F
5HD-F
5HT-F
5HC
5HD
5HT
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Red Diffused
Viewing Angle
35°
40°
35°
35°
45°
35°
GaAsP/GaP
RED
625nm
Red Tinted
Water Clear
Red Diffused
Red Tinted
Part Number Designation
5 X X - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, Blank for Standard
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/08
Page 1 of 5
