568-0102-222F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 568-0102-222F

Preview

568-0102-222F: DescriptionLED Circuit Board Indicators HI EFF GREEN DIFF; CategoryLED optoelectronic/LED photoelectric; File Size472KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric Compare View All

568-0102-222F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	568-0102-222F	-	-	View	Buy Now

568-0102-222F Overview

LED Circuit Board Indicators HI EFF GREEN DIFF

568-0102-222F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	DIALIGHT
package instruction	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant
color	GREEN
color@wavelength	Green
Configuration	SEPARATE, 4 ELEMENTS
Maximum forward current	0.03 A
Maximum forward voltage	2.3 V
JESD-609 code	e4
minimum luminous intensity	0.0085 cd
Nominal luminous intensity	12.6 mcd
Installation features	RADIAL MOUNT
Number of functions	4
Number of terminals	8
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	20.32 mm
method of packing	BAG
peak wavelength	565 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All

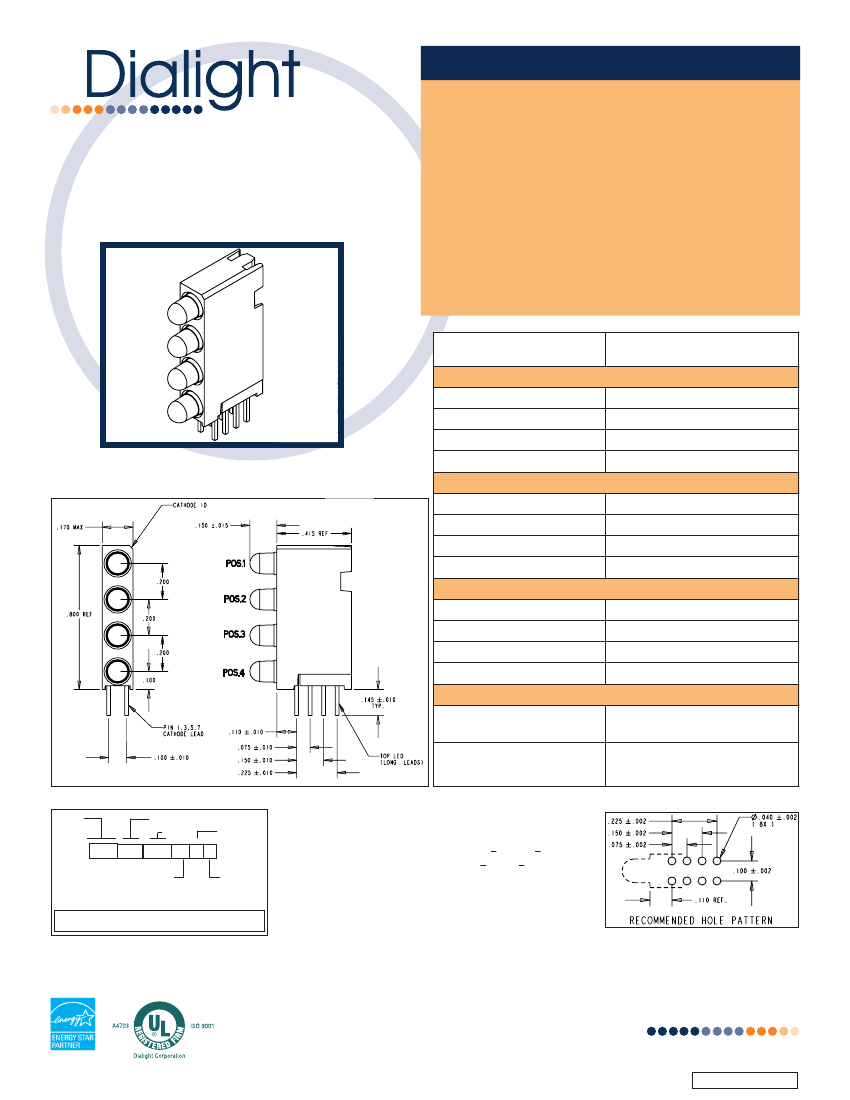

FEATURES / BENEFITS

Multiple CBIs form horizontal LED arrays on 1.91 mm

(0.075”) center lines.

High Contrast, UL 94 V-0 rated, black housing

Oxygen index: 32%

Polymer content: PBT, 0.949 g

Housing stand-offs facilitate PCB cleaning

Solderability per MIL-STD-202F, method 208F

LEDs are safe for direct viewing per IEC 825-1,

EN 60825-1

568 Series

3mm LED CBI

®

Circuit Board Indicator

QUAD-LEVEL

PART NUMBER

HIGH EFFICIENCY - LED TYPE 1

568-0101-111

568-0102-222

568-0102-323

568-0103-232

COLOR*

RED/RED/RED/RED

GREEN/GREEN/GREEN/GREEN

GREEN/YELLOW/GREEN/YELLOW

YELLOW/GREEN/YELLOW/GREEN

LOW CURRENT - LED TYPE 2

568-0201-111

568-0202-222

568-0202-323

568-0203-232

RED/RED/RED/RED

GREEN/GREEN/GREEN/GREEN

GREEN/YELLOW/GREEN/YELLOW

YELLOW/GREEN/YELLOW/GREEN

INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 3

568-0301-111

568-0302-222

568-0302-323

568-0303-232

RED/RED/RED/RED

GREEN/GREEN/GREEN/GREEN

GREEN/YELLOW/GREEN/YELLOW

YELLOW/GREEN/YELLOW/GREEN

BI-COLOR - LED TYPE 7

568-0701-111

RED/GREEN-RED/GREEN-

RED/GREEN-RED/GREEN

568-0704-444

YELLOW/GREEN-YELLOW/GREEN-

YELLOW/GREEN-YELLOW/GREEN

PART NUMBER ORDERING CODE

Series

LED Type

LED 1

LED 3

* LED 1, LED 2, LED 3, LED 4

Tolerance note:

As noted, otherwise:

• LED Protrusion: +0.4 mm [+0.016]

• CBI Housing: +0.2mm [+0.008]

Contact factory for information on

custom color combinations.

568 -0x

0x

LED 2

-x x x

LED 4

Color =

0) Blank, 1) Red or Red/Green Bi-Color,

2) Green, 3) Yellow, 4) Yellow/Green Bi-Color

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

a Roxboro Group Company

MDEA568X001_A

568-0102-222F Related Products

	568-0102-222F	568-0102-232	568-0724-444F	568-0102-222	568-0202-222F	CC3-19600AKSTGKWS
Description	LED Circuit Board Indicators HI EFF GREEN DIFF	LED Circuit Board Indicators GRN/GRN/YEL/GRN	LED Circuit Board Indicators Quad CBI	LED Circuit Board Indicators HI EFF GREEN DIFF	LED Circuit Board Indicators 3mm CBI	Fixed Resistor, Thin Film, 0.1W, 1960ohm, 100V, 0.05% +/-Tol, -100,100ppm/Cel, 0505,
Is it lead-free?	Lead free	-	Lead free	Contains lead	Lead free	-
Is it Rohs certified?	conform to	-	conform to	incompatible	conform to	conform to
Reach Compliance Code	compliant	-	compliant	compliant	compliant	unknown
color	GREEN	-	YELLOW/GREEN	GREEN	GREEN	-
color@wavelength	Green	-	Green/Yellow	Green	Green	-
Configuration	SEPARATE, 4 ELEMENTS	-	4 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS	SEPARATE, 4 ELEMENTS	SEPARATE, 4 ELEMENTS	-
Maximum forward current	0.03 A	-	0.02 A	0.03 A	0.007 A	-
JESD-609 code	e4	-	e4	e0	e4	-
Nominal luminous intensity	12.6 mcd	-	2.5/3.7 mcd	12.6 mcd	1.6 mcd	-
Installation features	RADIAL MOUNT	-	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	-
Number of functions	4	-	4	4	4	-
Number of terminals	8	-	8	8	8	2
Maximum operating temperature	100 °C	-	100 °C	100 °C	100 °C	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	-	DUAL COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	-
total height	20.32 mm	-	12.7 mm	20.32 mm	20.32 mm	-
method of packing	BAG	-	BAG	BULK	BULK	Waffle Pack
peak wavelength	565 nm	-	585/565 nm	565 nm	565 nm	-
shape	ROUND	-	RECTANGULAR	ROUND	ROUND	-
size	3 mm	-	3.99 mm	3 mm	3 mm	-
surface mount	NO	-	NO	NO	NO	-
Terminal surface	Copper/Nickel/Silver (Cu/Ni/Ag)	-	Copper/Nickel/Silver (Cu/Ni/Ag)	Tin/Lead (Sn/Pb)	Copper/Nickel/Silver (Cu/Ni/Ag)	-
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	-
perspective	60 deg	-	140 deg	60 deg	60 deg	-
Base Number Matches	1	-	1	1	1	-
