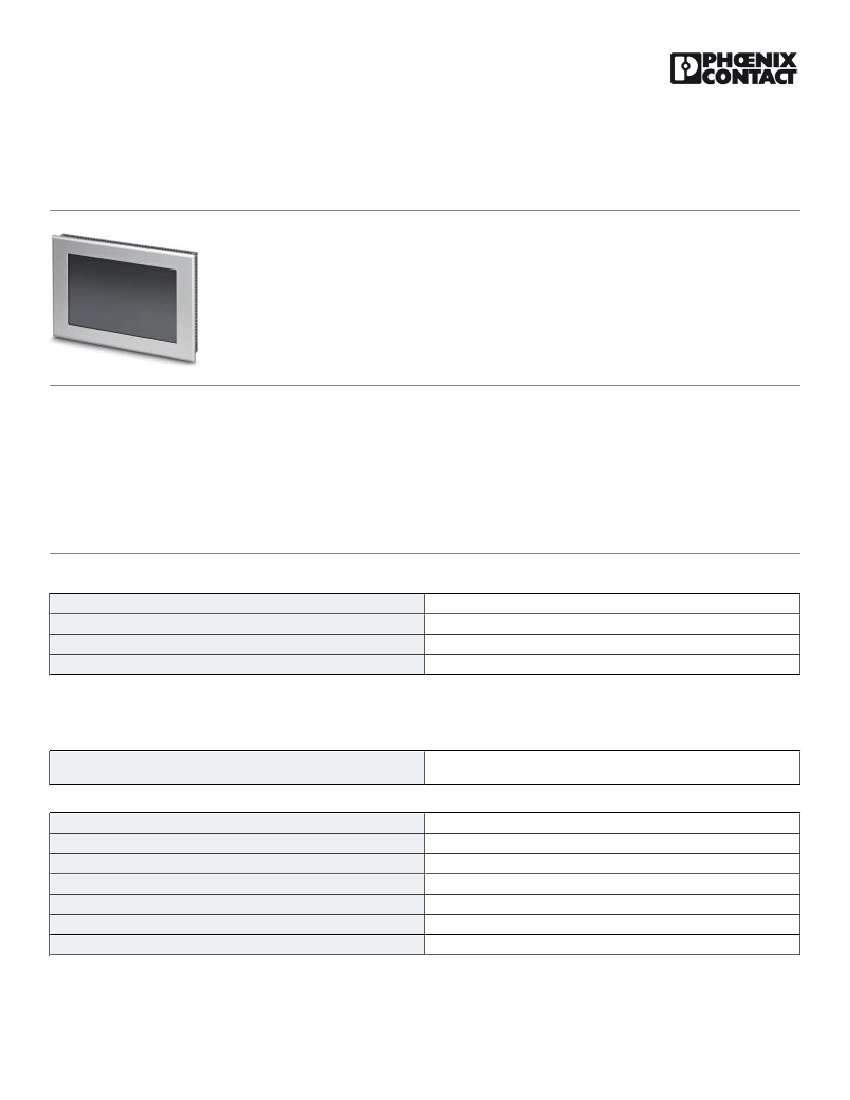

Touch panel - WP 09T/WS - 2700309
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Touch panel with 22.9 cm/9" TFT-Display (Analog resistive), 800 x 480 Pixel (WVGA), 65536
™
colors, ARM9 , 200 MHz, 2x USB Host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and User
software: MicroBrowser. (Bus system: without)
Product Features
■
■
■
■
■
■
Short startup time
Easy installation, low installation depth, and compact design
Low maintenance costs - projects are only adapted once
Micro browser (WebVisit client) integrated as standard in all devices
Display available in sizes from 8.9 cm (3.5") to 38.1 cm (15")
Easy device replacement - the visualization project is saved on the PLC (web server)
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
1980.0 g
84714100
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
External dimension, width
External dimension, height
External dimension, depth
Note regarding external dimension
Installation dimension, width
Installation dimension, height
Installation dimension, depth
260 mm
172 mm
5 mm
Dimensions of the front plate
252 mm
164 mm
54 mm
04/26/2016 Page 1 / 6
https://www.phoenixcontact.com/us/products/2700309
Touch panel - WP 09T/WS - 2700309
Technical data
Display
Display
Screen resolution
Backlighting
Display backlight MTBF
Touch technology
Colors
22.9 cm/9" TFT
800 x 480 Pixel(s) (WVGA)
LED
> 50000 h
Analog resistive
65536 colors
Computer data
Processor
Operating systems
User software
RAM
Mass storage
Network
Interfaces
Bus system
ARM9 , 200 MHz
Windows CE 5.0
MicroBrowser
64 MB SDRAM
32 MByte flash memory
1 x Ethernet (10/100 Mbps), RJ45
2x USB Host 2.0
without
®
™
General
Mounting type
Weight
Front installation
1300 g
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Vibration (operation)
Shock
IP65 (front), IP20 (back)
0 °C ... 50 °C
-25 °C ... 70 °C
20 % ... 85 % (non-condensing)
10 % ... 95 % (non-condensing)
DIN EN 60068-2-6
DIN EN 60068-2-27
Device supply
Power supply unit
24 V DC ±20 %
Standards and Regulations
Shock
Vibration (operation)
DIN EN 60068-2-27
DIN EN 60068-2-6
04/26/2016 Page 2 / 6
https://www.phoenixcontact.com/us/products/2700309
Touch panel - WP 09T/WS - 2700309
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27242302
27242302
27242302
27330201
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001414
EC001412
EC001412
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43211507
43201404
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / GL / GL-SW / cULus Listed / GL
Ex Approvals
Approvals submitted
Approval details
UL Listed
04/26/2016 Page 3 / 6
https://www.phoenixcontact.com/us/products/2700309
Touch panel - WP 09T/WS - 2700309
Approvals
cUL Listed
EAC
GL
GL-SW
cULus Listed
GL
Accessories
Accessories
Mounting material

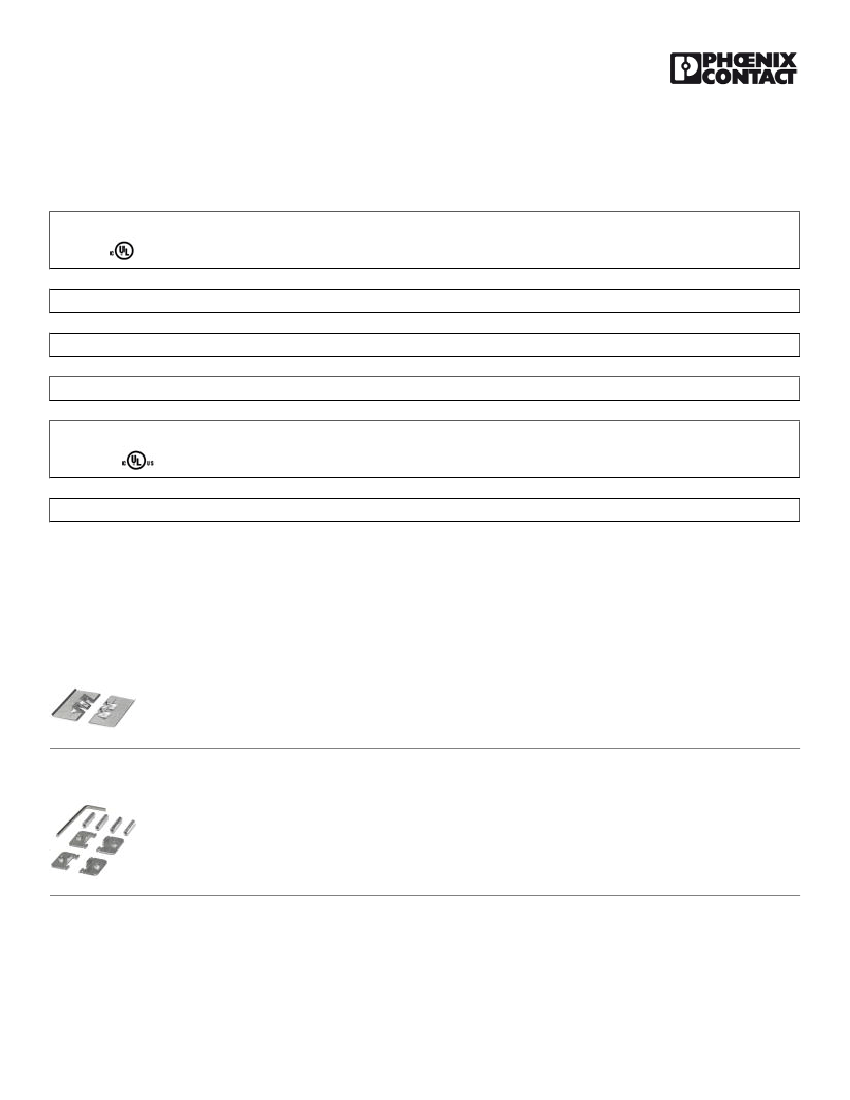

Mounting material - HMI WALL MOUNTING KIT - 2701380
HMI mounting kit for panel installation. The mounting kit includes 2 spring clips.
Mounting material - HMI SCB MOUNTING KIT 4 - 2701384
HMI mounting kit for installation on a front plate. The mounting kit includes 4 x mounting brackets, 4 x screw threads, and
a hexagonal wrench.
04/26/2016 Page 4 / 6
https://www.phoenixcontact.com/us/products/2700309
Touch panel - WP 09T/WS - 2700309
Accessories

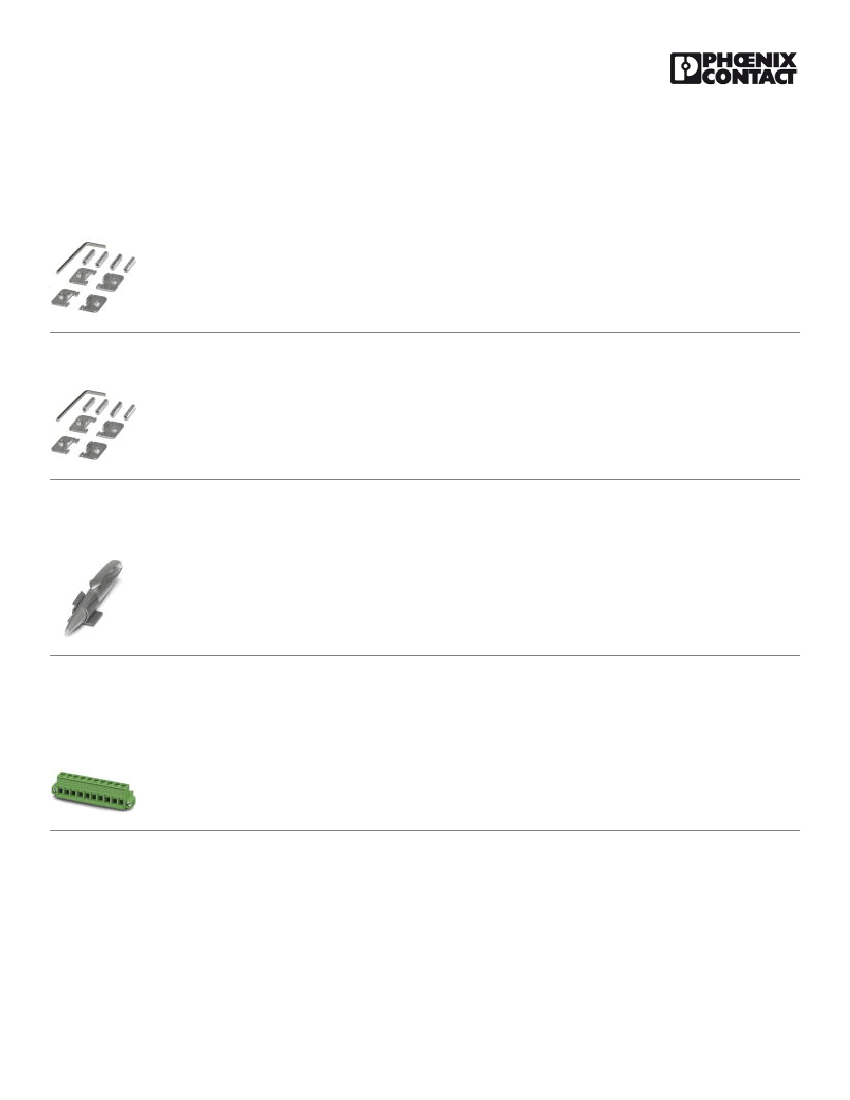

Mounting material - HMI SCB MOUNTING KIT 6 - 2701385
HMI mounting kit for installation on a front plate. The mounting kit includes 6 x mounting brackets, 6 x screw threads, and
a hexagonal wrench.
Mounting material - HMI SCB MOUNTING KIT 8 - 2701387
HMI mounting kit for installation on a front plate. The mounting kit includes 8 x mounting brackets, 8 x screw threads, and
a hexagonal wrench.
Operating stylus
Touch pen - TOUCH PEN - 2701379
Touch pen for HMIs, silver coated. Delivery includes self-adhesive pen holder.
PCB plug
Printed-circuit board connector - MSTB 2,5/ 3-STF - 1786844
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection
method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Protective foil
