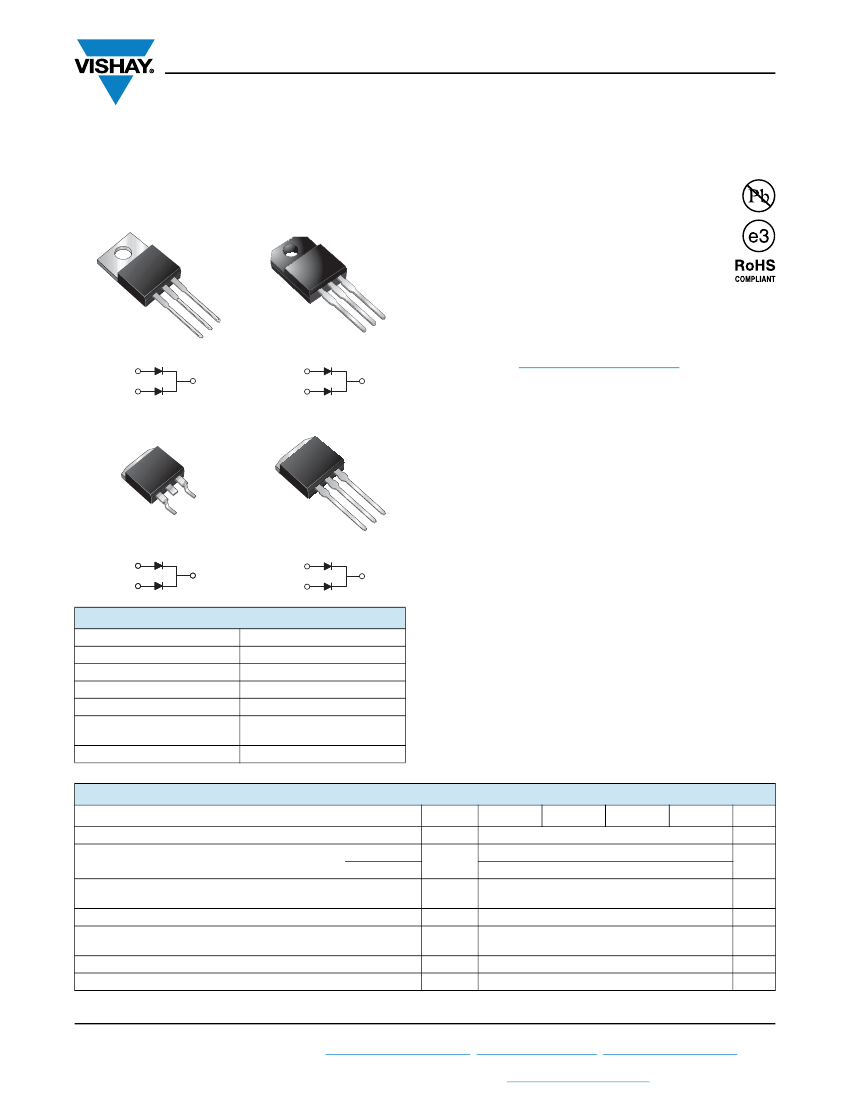

VT2080C-E3, VFT2080C-E3, VBT2080C-E3, VIT2080C-E3

www.vishay.com

Vishay General Semiconductor

Ultra Low V

= 0.52 V at I

= 5 A

FEATURES

Dual Trench MOS Barrier Schottky Rectifier

TMBS

TO-220AB

• Trench MOS Schottky technology

ITO-220AB

• Low forward voltage drop, low power losses

• High efficiency operation

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder bath temperature 275 °C maximum, 10 s,

per JESD 22-B106 (for TO-220AB, ITO-220AB,

and TO-262AA package)

• Material categorization: For definitions of compliance

please see

www.vishay.com/doc?99912

VT2080C

PIN 1

PIN 3

PIN 2

CASE

VFT2080C

PIN 1

PIN 3

PIN 2

TYPICAL APPLICATIONS

TO-262AA

TO-263AB

For use in high frequency converters, switching power

supplies, freewheeling diodes, OR-ing diode, DC/DC

converters and reverse battery protection.

MECHANICAL DATA

VBT2080C

PIN 1

PIN 2

HEATSINK

VIT2080C

PIN 1

PIN 3

PIN 2

Case:

TO-220AB,

ITO-220AB,

TO-263AB

and

TO-262AA

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Terminals:

Matte tin plated leads, solderable

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum



per

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 10 A

max.

Package

Diode variations

2 x 10 A

80 V

100 A

0.60 V

150 °C

TO-220AB, ITO-220AB,

TO-263AB, TO-262AA

Common cathode

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Maximum average forward rectified current (fig. 1)

Peak forward surge current 8.3 ms single half

sine-wave superimposed on rated load per diode

Non-repetitive avalanche energy at T

= 25 °C, L = 60 mH per diode

Peak repetitive reverse current at t

= 2 μs, 1 kHz,

= 38 °C ± 2 °C per diode

Isolation voltage (ITO-220AB only) from terminal to heatsink t = 1 min

Operating junction and storage temperature range

per device

per diode

SYMBOL

RRM

F(AV)

FSM

RRM

, T

STG

VT2080C

VFT2080C VBT2080C

100

110

1.0

1500

-55 to +150

VIT2080C

UNIT

°C

Revision: 11-Sep-13

Document Number: 89166

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice
