FCX11362_IRIS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> FCX11362_IRIS

FCX11362_IRIS: DescriptionLED Lighting Lenses Assemblies Single Lens; CategoryLED optoelectronic/LED; File Size135KB，3 Pages; ManufacturerLedil; Websitehttp://www.ledil.com; Environmental Compliance

Download Datasheet Parametric View All

FCX11362_IRIS Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FCX11362_IRIS	-	-	View	Buy Now

FCX11362_IRIS Overview

LED Lighting Lenses Assemblies Single Lens

FCX11362_IRIS Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Ledil
Product Category	LED Lighting Lenses Assemblies
RoHS	Details
Type	Lens Assembly
Packaging	Bulk
Color	Clear
Diameter	38 mm
Height	27.1 mm
Length	38 mm
Style	Round
Termination Style	Adhesive
Width	38 mm
Factory Pack Quantity	32
Unit Weight	0.682022 oz

Preview

Download Datasheet

View All

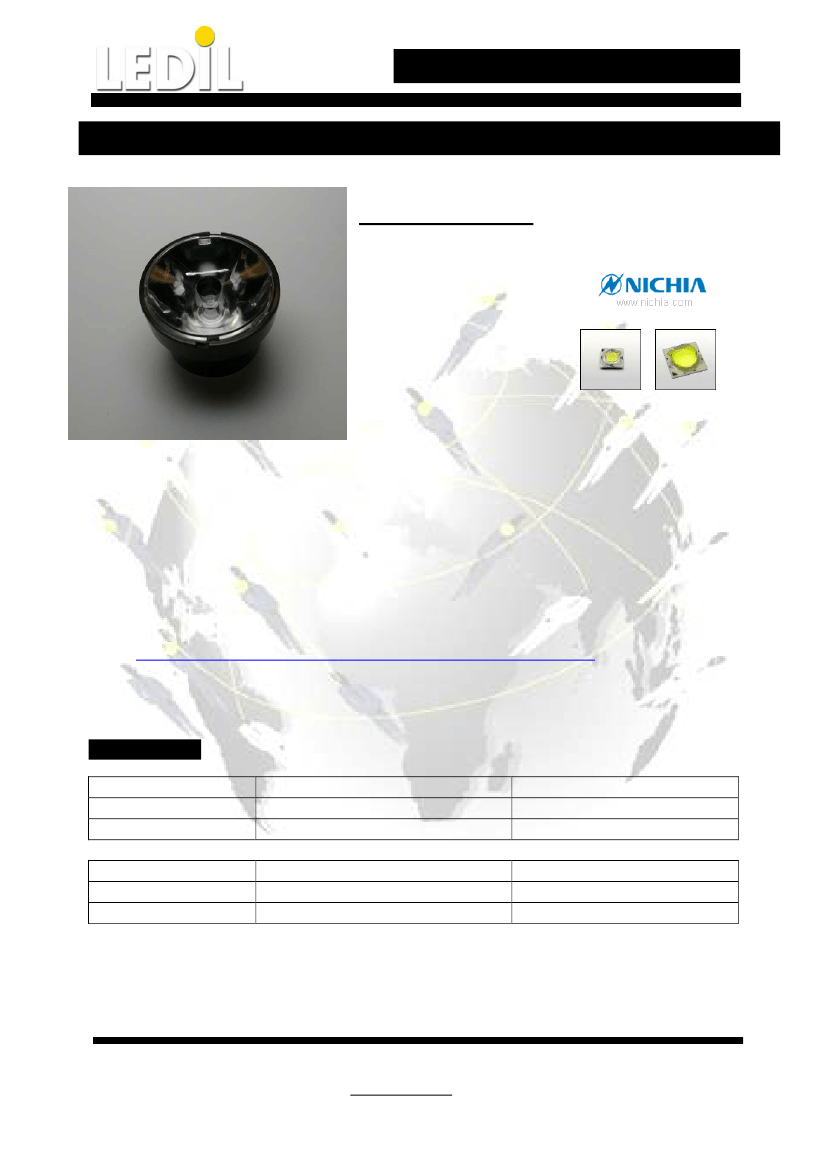

LEDIL F’FORM OPTICS

IRIS

LENS FOR NICHIA 119/219 SERIES OF LEDs

APPLICATIONS:

TORCH LIGHTS

DOWNLIGHTS

SPOTLIGHTS

Lens material optical grade PMMA with high UV and temperature

resistance (105°C/220°F).

Holder material PC. Allows use of high current and temperature

conditions.

Very high optical efficiency 92%

Tape version comes with double sided adhesive tape

Please check fastening details from this link:

(http://www.ledil.com/datasheets/DataSheet_TAPE.pdf)

Screw version can be screwed from the bottom of the PCB

Positioning pins to ensure right positioning.

Medium and Oval sub lenses available

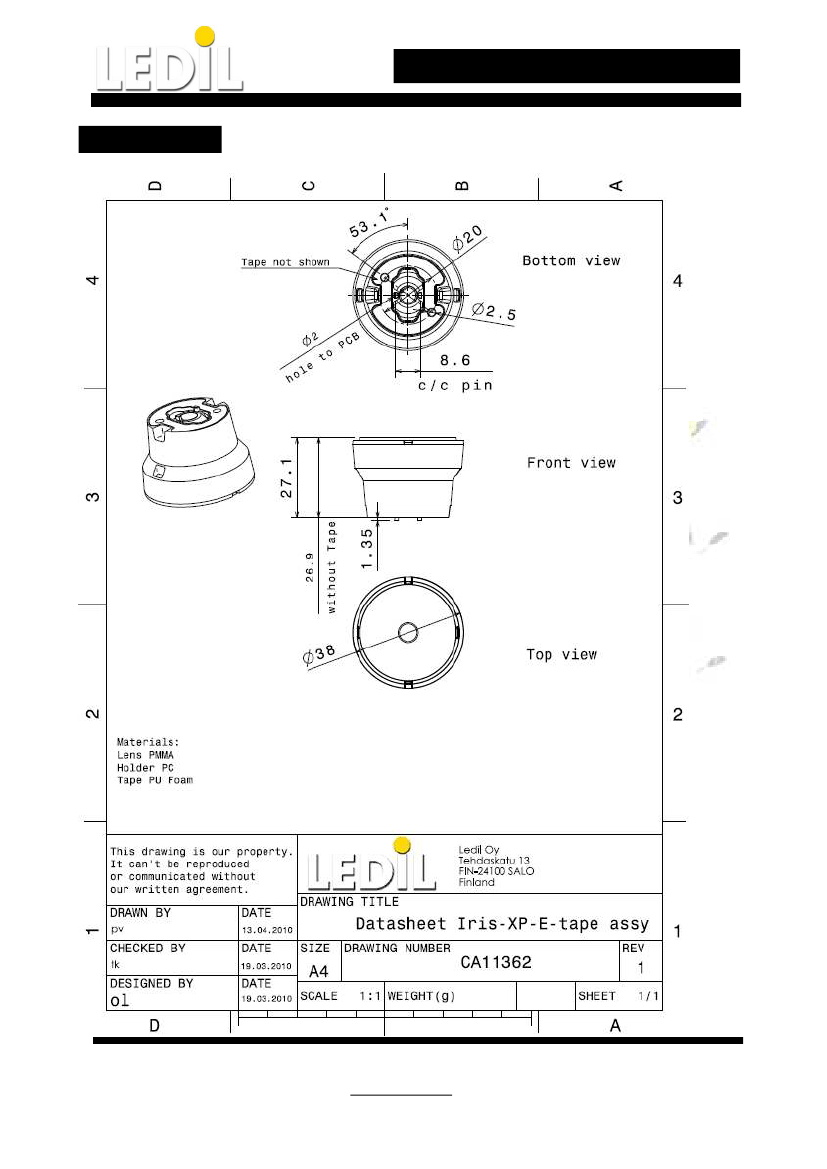

LENS TYPES

NAME

Iris-N119 Screw

Iris-N119 Tape

NAME

Iris-N219 Screw

Iris-N219 Tape

ORDERING CODE

CA11358_Iris-N119-screw

CA11362_Iris-N119-tape

ORDERING CODE

CA11358_Iris-N219-screw

CA11362_Iris-N219-tape

FWHM Angle

To be measured shortly

FWHM Angle

To be measured shortly

NOTE: DELIVERED UNASSEMBLED

Ledil Oy

Tehdaskatu 13

FIN-24100 SALO, Finland

www.ledil.com

email: ledil@ledil.com

FAX: +358-2-733 8001

2011-01-25
