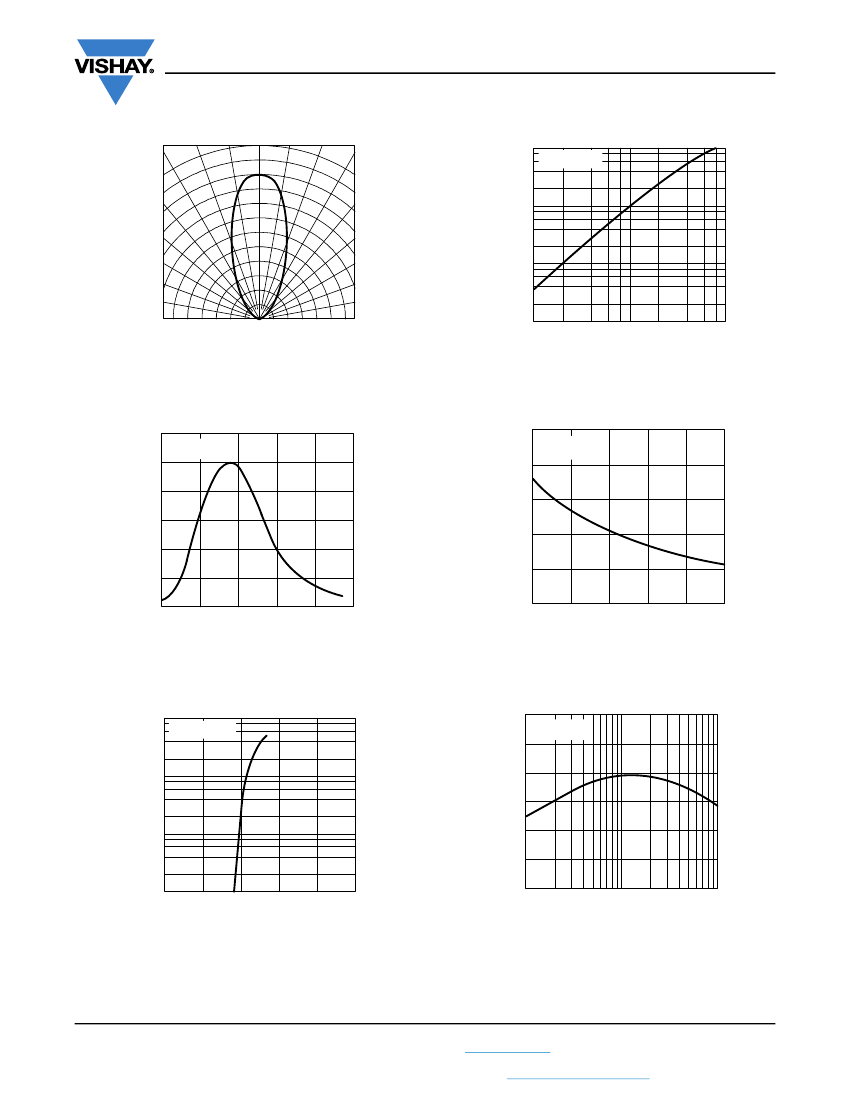

TLHO42M1N2
www.vishay.com
Vishay Semiconductors
High Efficiency LED in Ø 3 mm Tinted Undiffused Package
FEATURES
• Standard T-1 package
• Small mechanical tolerances
• Suitable for DC and high peak current
• Wide viewing angle
• Luminous intensity categorized
19220
• Color categorized
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
DESCRIPTION
The TLHO42M1N2 was developed for standard applications
like general indicating and lighting purposes.
It is housed in a 3 mm tinted clear plastic package. The wide
viewing angle of these devices provides a high brightness
across a large field of view.
The LED is categorized in luminous intensity groups and
additionally in wavelength groups.
That allows users to assemble LEDs with uniform
appearance.
APPLICATIONS
• Status lights
• Off / on indicator
• Background illumination
• Readout lights
• Maintenance lights
• Legend light
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: 3 mm
• Product series: standard
• Angle of half intensity: ± 22°
PARTS TABLE
PART
COLOR
LUMINOUS
INTENSITY
(mcd)
MIN.
TLHO42M1N2
Soft orange
18
TYP. MAX.
-
45
10
at I
F
(mA)
WAVELENGTH
(nm)
MIN.
598
TYP. MAX.
-
611
10
at I
F
(mA)
FORWARD VOLTAGE
(V)
MIN.
-
TYP.
2.2
MAX.
2.6
10
GaAsP on GaP
at I
F
(mA)
TECHNOLOGY
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C unless otherwise specified)
TLHO42M1N2
PARAMETER
Reverse voltage
(1)
DC forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Soldering temperature
Thermal resistance junction/ambient
Note
(1)
Driving the LED in reverse direction is suitable for a short term application
t
≤
5 s, 2 mm from body
t
p
≤
10 μs
TEST CONDITION
SYMBOL
V
R
I
F
I
FSM
P
V
T
j
T
amb
T
stg
T
sd
R
thJA
VALUE
6
30
1
100
100
-40 to +100
-55 to +100
260
400
UNIT
V
mA
A
mW
°C
°C
°C
°C
K/W
Rev. 1.2, 14-Oct-14
Document Number: 82399
1
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TLHO42M1N2
www.vishay.com
Vishay Semiconductors
OPTICAL AND ELECTRICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
TLHO42M1N2, SOFT ORANGE
PARAMETER
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse current
Junction capacitance
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
V
R
= 6 V
V
R
= 0 V, f = 1 MHz
PART
TLHO42M1N2
SYMBOL
I
V
λ
d
λ
p
ϕ
V
F
I
R
C
j
MIN.
18
598
-
-
-
-
-
TYP.
-
-
605
± 22
2.2
-
50
MAX.
45
611
-
-
2.6
10
-
UNIT
mcd
nm
nm
deg
V
μA
pF
LUMINOUS INTENSITY CLASSIFICATION
GROUP
STANDARD
M
N
1
2
1
2
LIGHT INTENSITY (mcd)
OPTIONAL
MIN.
18
22.4
28
35.5
MAX.
22.4
28
35.5
45
COLOR CLASSIFICATION
GROUP
1
2
3
4
5
6
SOFT ORANGE
DOM. WAVELENGTH (nm)
MIN.
MAX.
598
601
600
602
604
606
608
603
605
607
609
611
Note
• Luminous intensity is tested at a current pulse duration of 25 ms
and an accuracy of ± 11 %.
The above type numbers represent the order groups which
include only a few brightness groups. Only one group will be
shipped on each reel (there will be no mixing of two groups on
each reel).
In order to ensure availability, single brightness groups will not
be orderable.
In a similar manner for colors where wavelength groups are
measured and binned, single wavelength groups will be shipped
on any one reel.
In order to ensure availability, single wavelength groups will not
be orderable.
Note
• Wavelengths are tested at a current pulse duration of 25 ms.
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
60
10 000
T
amb
≤
65 °C
1000
I
F
- Forward Current (mA)
40
30
20
10
0
0
95 10905
I
F
- Forward Current (mA)
50
t
p
/T= 0.01
0.02
0.05
100
1
10
0.5
0.2
0.1
20
40
60
80
100
1
0.01
95 10047
0.1
1
10
100
T
amb
- Ambient Temperature (°C)
t
p
- Pulse Length (ms)
Fig. 1 - Forward Current vs. Ambient Temperature
Fig. 2 - Forward Current vs. Pulse Length
Rev. 1.2, 14-Oct-14
Document Number: 82399
2
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TLHO42M1N2
www.vishay.com
Vishay Semiconductors
10°
20°
30°
10
soft orange
0°
I
V rel
- Relative Luminous Intensity
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
0.6
0.4
0.2
0
I
v rel
- Relative Luminous Intensity
ϕ
- Angular Displacement
1
0.1
0.01
1
95 9997
10
100
95 10041
I
F
- Forward Current (mA)
Fig. 3 - Relative Luminous Intensity vs. Angular Displacement
Fig. 6 - Relative Luminous Intensity vs. Forward Current
1.2
soft orange
1.0
I
rel
- Relative Intensity
I
V rel
- Relative Luminous Intensity
2.0
soft orange
1.6
0.8
0.6
0.4
0.2
0
570
1.2
0.8
0.4
0
590
610
630
650
670
95 9994
0
20
40
60
80
100
95 10324
λ
- Wavelength (nm)
T
amb
- Ambient Temperature (°C)
Fig. 4 - Relative Intensity vs. Wavelength
Fig. 7 - Relative Luminous Intensity vs. Ambient Temperature
100
2.4
I
spec
- Specific Luminous Intensity
soft orange
soft orange
2.0
1.6
1.2
0.8
0.4
0
I
F
- Forward Current (mA)
10
1
0.1
0
95 9990
1
2
3
4
5
95 10259
10
1
20
0.5
50
0.2
100
0.1
200
0.05
500
0.02
I
F
(mA)
t
p
/T
V
F
- Forward Voltage (V)
Fig. 5 - Forward Current vs. Forward Voltage
Fig. 8 - Relative Luminous Intensity vs. Forward Current/Duty Cycle
Rev. 1.2, 14-Oct-14
Document Number: 82399
3
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TLHO42M1N2
www.vishay.com
PACKAGE DIMENSIONS
in millimeters
Vishay Semiconductors
A
C
Ø 3.2 ± 0.15
R1.4 (sphere)
3.4 ± 0.15
4.4 ± 0.3
(2.5)
< 0.6
34.4 ± 0.5
5.8 ± 0.3
AREA NOT PLANE
Ø 2.9 ± 0.15
+ 0.15
1.5 ± 0.5
+ 0.2
0.5
- 0.1
0.4
- 0.05
technical drawings
according to DIN
specifications
2.54 nom.
Drawing-No.: 6.544-5255.01-4
Issue: 9; 28.07.14
Rev. 1.2, 14-Oct-14
Document Number: 82399
4
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
