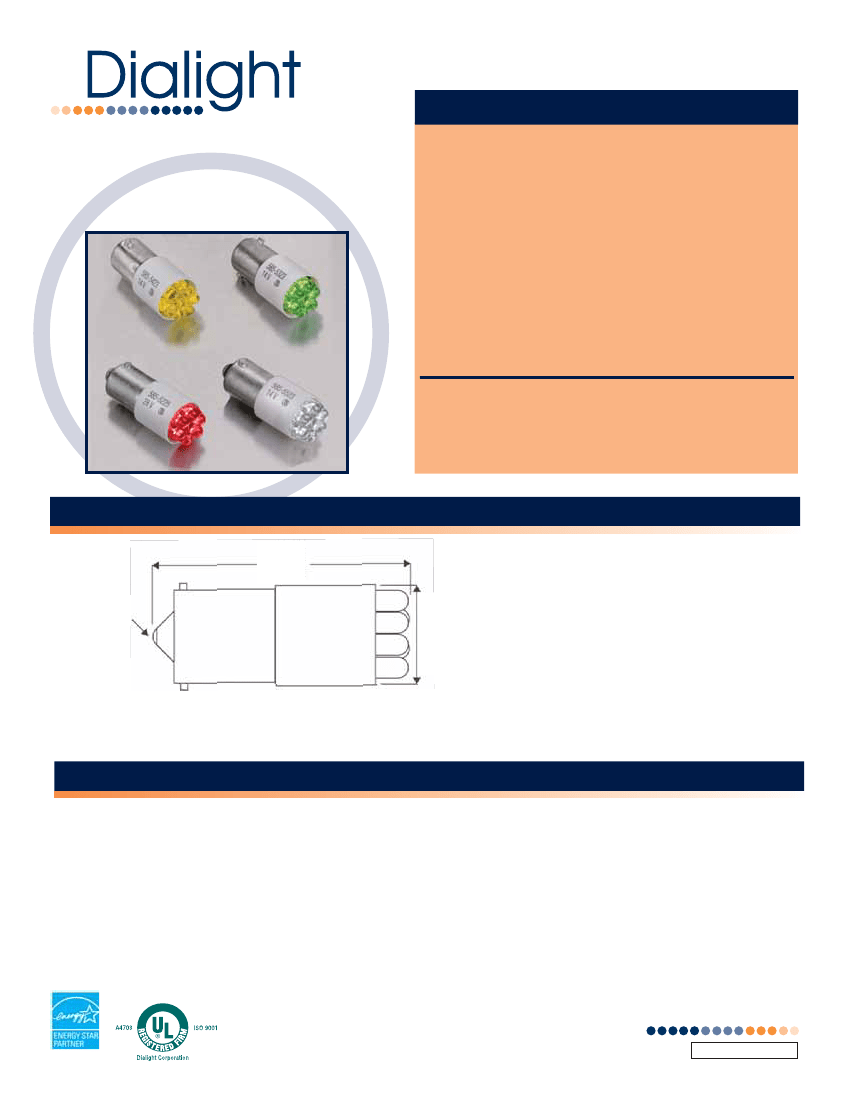

FEATURES / BENEFITS
585 Series
CLUSTER BASED LED
T3 1/4 Miniature Bayonet (BA9s)
High brightness with low current draw - uses up to
90% less energy than an incandescent
Long life - up to 100K hours
True non-polarized configurations available
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
Super bright LED cluster design
Available in 6, 14, and 28 VDC, 120 VAC
Dialight's line of based LED lamps is designed to directly
replace many popular subminiature and miniature incandescent
lamps. The benefits of LED technology over incandescent are
significant: They offer long life, are shock resistant, withstand
vibration and provide energy conservation.
SPECIFICATIONS
1.09
[27.70]
CENTER
CONTACT (+)
Operating Voltages: 6,14, 28 VDC, 120 VAC
Polarized and non-polarized available
Operating temperature: -30
o
C
to +
85
o
C
.430
[10.92]
Storage temperature: -40
o
C
to +
100
o
C
Replaces incandescent lamp numbers*: 44,
47, 313, 755,1815, 1819, 1847, 1850, 1866,
1889, 1891, 1892, 1893 and 1895
* See Dialight’s Incandescent lamp/based LED
cross reference for a complete listing
Measurements are typical
Dimensions are inches [mm]
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.
If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,
which will optimize the light output.
If you are unfamiliar with the polarity of the circuit, Dialight recommends using a non-polarized version.
Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL585E001_D
585 Series
CLUSTER BASED LED
T3 1/4 Miniature Bayonet (BA9s)
POLARIZED
Part Number
585-5211
585-5311
585-5511
585-5213
585-5313
585-5513
585-5215
585-5315
585-5515
Color
Red
Green
Yellow
Red
Green
Yellow
Red
Green
Yellow
Peak
Wavelength
(nm)
660
565
592
660
565
592
660
565
592
Nominal Voltage
(VDC)
6
6
6
14
14
14
28
28
28
Forward
Current
TYP.-(mA)
60
60
90
40
40
60
20
20
30
Intensity
TYP.-(mcd)
480
420
1800
480
420
1800
560
490
2100
NON-POLARIZED
Peak
Wavelength
(nm)
660
565
592
660
565
592
660
565
592
Forward
Current
TYP.-(mA)
40
40
60
20
20
30
9
9
9
Part Number
585-5223
585-5323
585-5523
585-5225
585-5325
585-5525
585-5256
585-5356
585-5556
Color
Red
Green
Yellow
Red
Green
Yellow
Red
Green
Yellow
Nominal Voltage
(VDC)
14
14
14
28
28
28
120 VAC
120 VAC
120 VAC
Intensity
TYP.-(mcd)
480
420
1800
560
490
2100
252
220
945
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent lamp when used
in similar packages. These advancements have created a new type of product called the based LED - an LED with the functionality
of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T1 3/4 Midget Flange
T1 3/4 Bi-Pin
T1 3/4 Wedge (T5)
T3 1/4 Miniature Bayonet (BA9S)
T3 1/4 Miniature Screw (E10)
T3 1/4 Wedge (T10)
T2 Telephone Slide
15mm SC Bayonet (BA15s)
Dialight’s line of based LEDs continues to grow. Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL585E001_D
