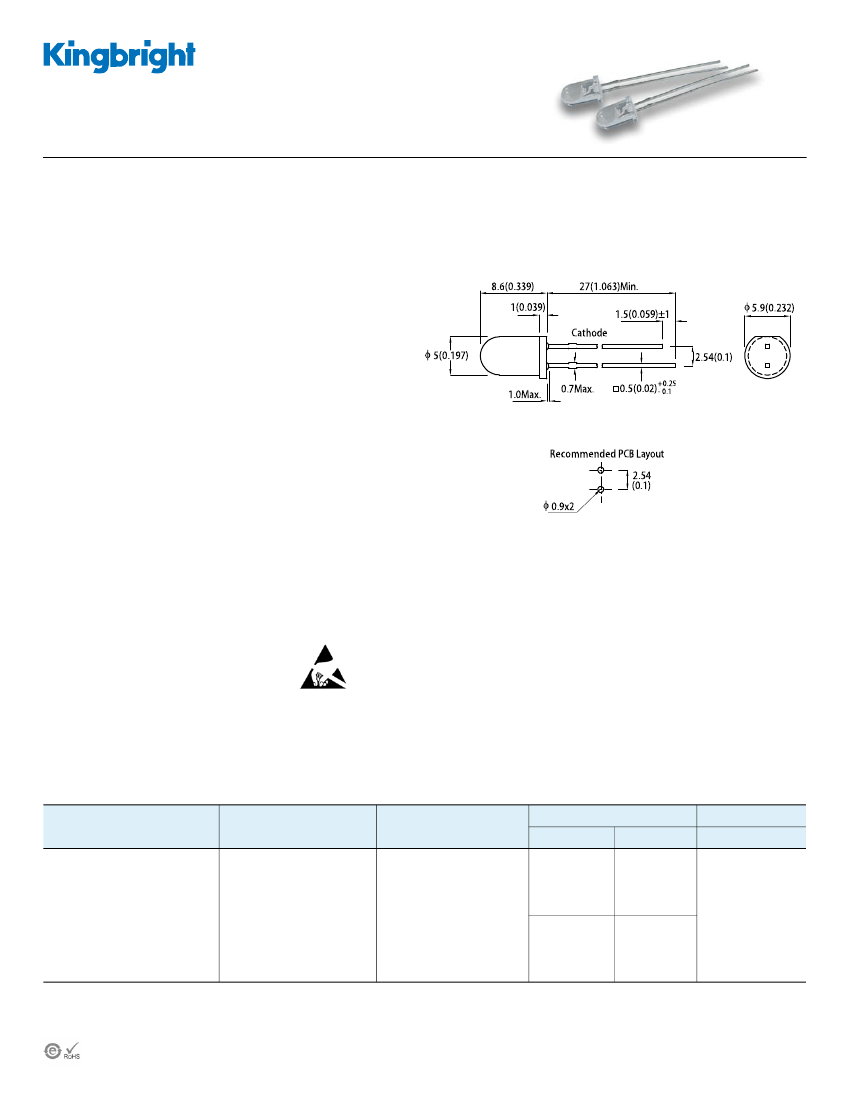

1. The dominant wavelength (λd) above is the setup value of the sorting machine. (Tolerance
λd
: ±1nm. )
2. Forward voltage: ±0.1V.
3. Wavelength value is traceable to CIE127-2007 standards.
4. Excess driving current and / or operating temperature higher than recommended conditions may result in severe light degradation or premature failure.
ABSOLUTE MAXIMUM RATINGS at T
A
=25°C
Parameter
Power Dissipation
Reverse Voltage
Junction Temperature
Operating Temperature
Storage Temperature
DC Forward Current
Peak Forward Current
Electrostatic Discharge Threshold (HBM)
Lead Solder Temperature
[2]
Lead Solder Temperature
[3]
Symbol
P
D
V
R
T
j
T
op
T
stg
I
F
I
FM [1]
Value
84
5
115
-40 to +85
-40 to +85
30
150
3000
260°C For 3 Seconds
260°C For 5 Seconds
Unit
mW
V
°C
°C
°C
mA
mA
V
-
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
4. Relative humidity levels maintained between 40% and 60% in production area are recommended to avoid the build-up of static electricity – Ref JEDEC/JESD625-A and JEDEC/J-STD-033.

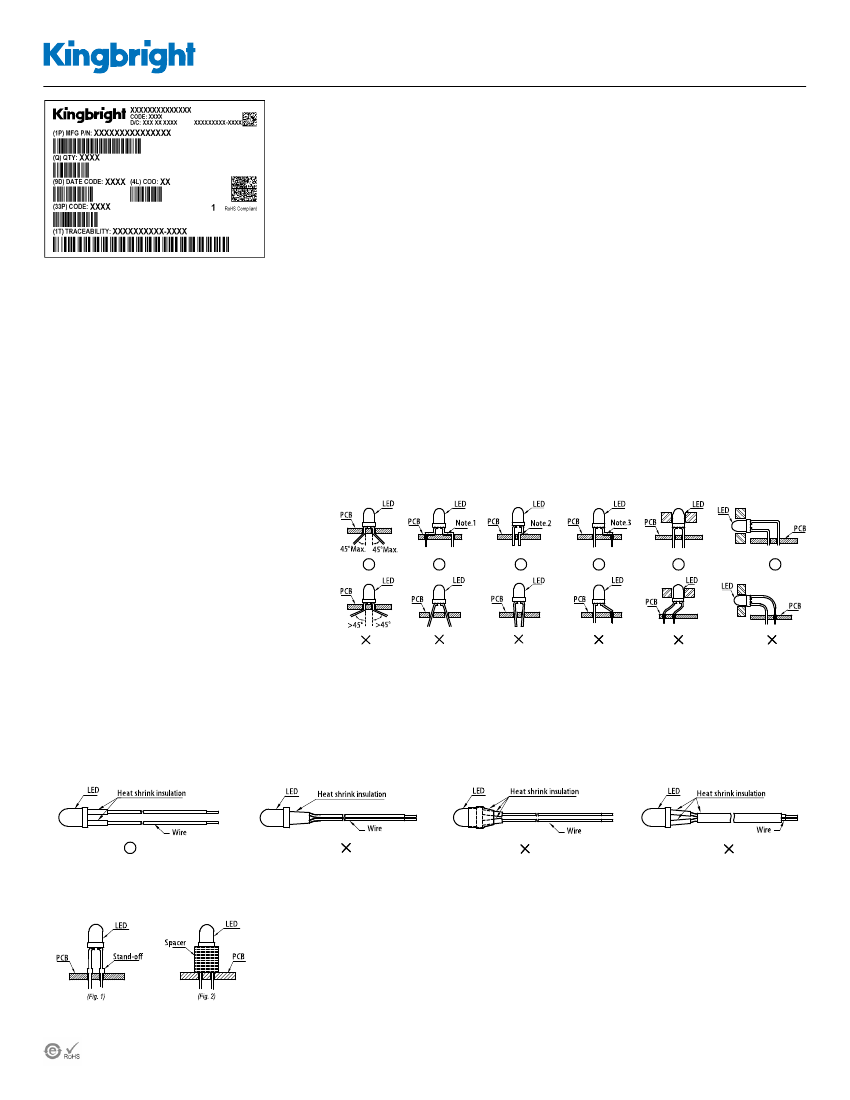

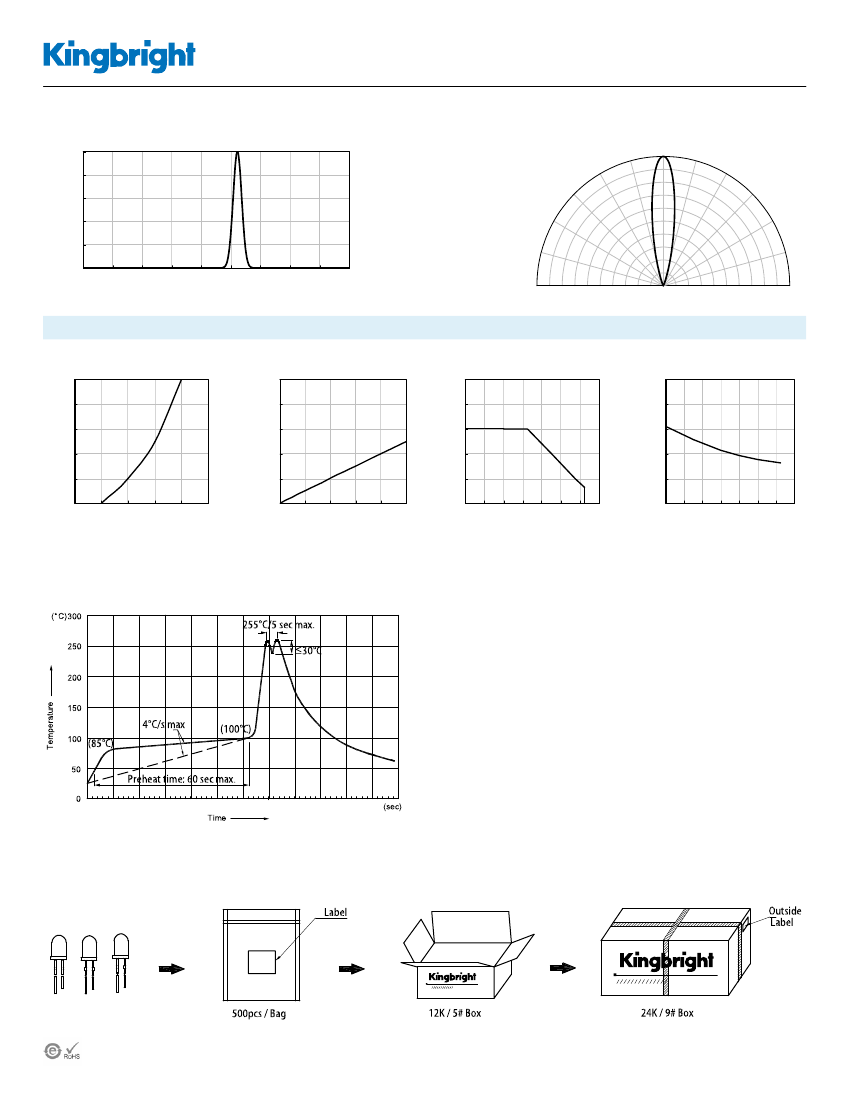

2. During soldering, component covers and holders should leave
clearance to avoid placing damaging stress on the LED during
soldering.
(Fig. 7)
3. The tip of the soldering iron should never touch the lens epoxy.
4. Through-hole LEDs are incompatible with reflow soldering.
5. If the LED will undergo multiple soldering passes or face other
processes where the part may be subjected to intense heat,
please check with Kingbright for compatibility.
1. The information included in this document reflects representative usage scenarios and is intended for technical reference only.
2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without notice. Before production usage customer should refer to
the latest datasheet for the updated specifications.
3. When using the products referenced in this document, please make sure the product is being operated within the environmental and electrical limits specified in the datasheet. If
customer usage exceeds the specified limits, Kingbright will not be responsible for any subsequent issues.
4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has special reliability requirements or have life-threatening
liabilities, such as automotive or medical usage, please consult with Kingbright representative for further assistance.
5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright.
6. All design applications should refer to Kingbright application notes available at
