14.22mm (0.56INCH) DUAL DIGIT
NUMERIC DISPLAY
Part Number: DA56-11CGKWA
Green
Features
0.56 inch digit height.
Low current operation.
Excellent character appearance.
Easy mounting on P.C. boards or sockets.
Two digit package simplifies alignments & assembly.
Mechanically rugged.
Standard : gray face, white segment.
RoHS compliant.
Description
The Green source color devices are made with AlGaInP on
GaAs substrate Light Emitting Diode.

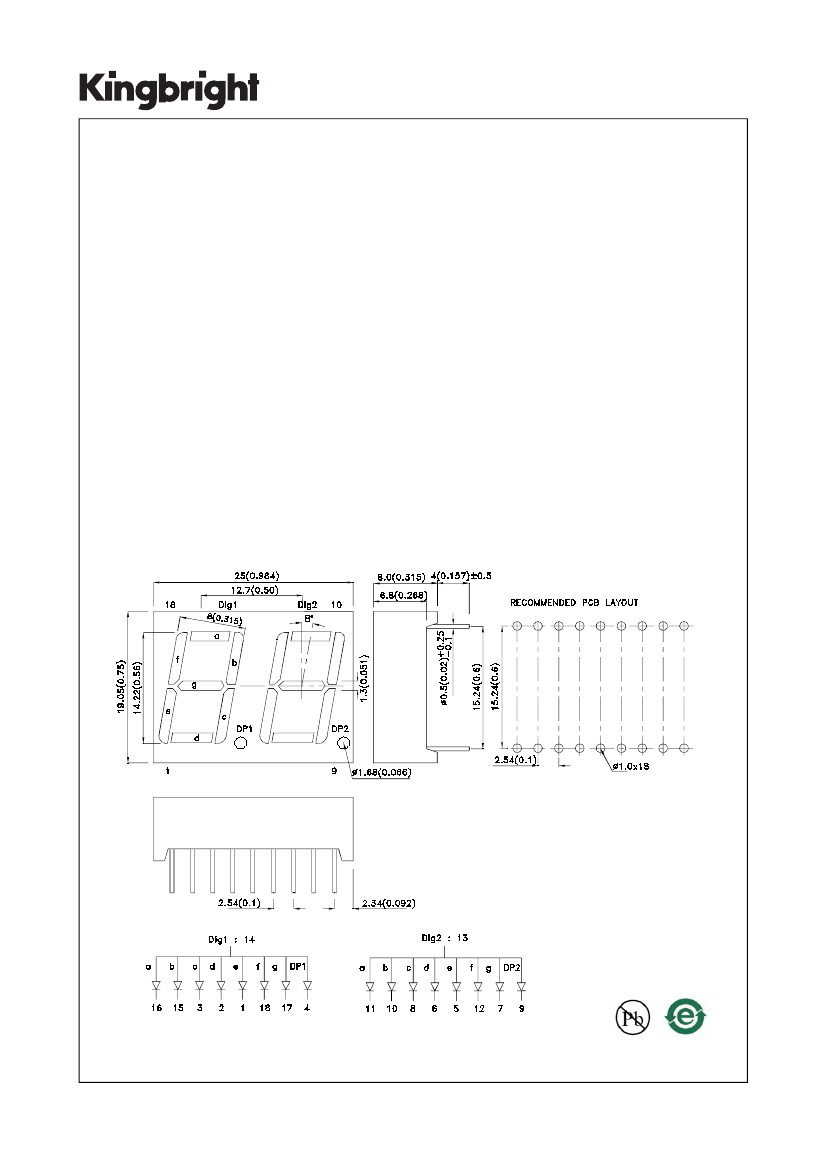

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAM8549
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Joe Lee
DATE: MAR/19/2015
DRAWN: P.Cheng
PAGE: 1 OF 6
ERP: 1302000681
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
14000
DA56-11CGKWA
Green (AlGaInP)
White Diffused
*5600
Notes:
1. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
35000
*12000
Common Anode, Rt.
Hand Decimal.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Green
Green
Green
Green
Green
Green
Typ.
574
570
20
15
2.1
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3.Wavelength value is traceable to the CIE127-2007 compliant national standards.
4.Excess driving current and/or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Green
75
30
150
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAM8549
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Joe Lee
DATE: MAR/19/2015
DRAWN: P.Cheng
PAGE: 2 OF 6
ERP: 1302000681

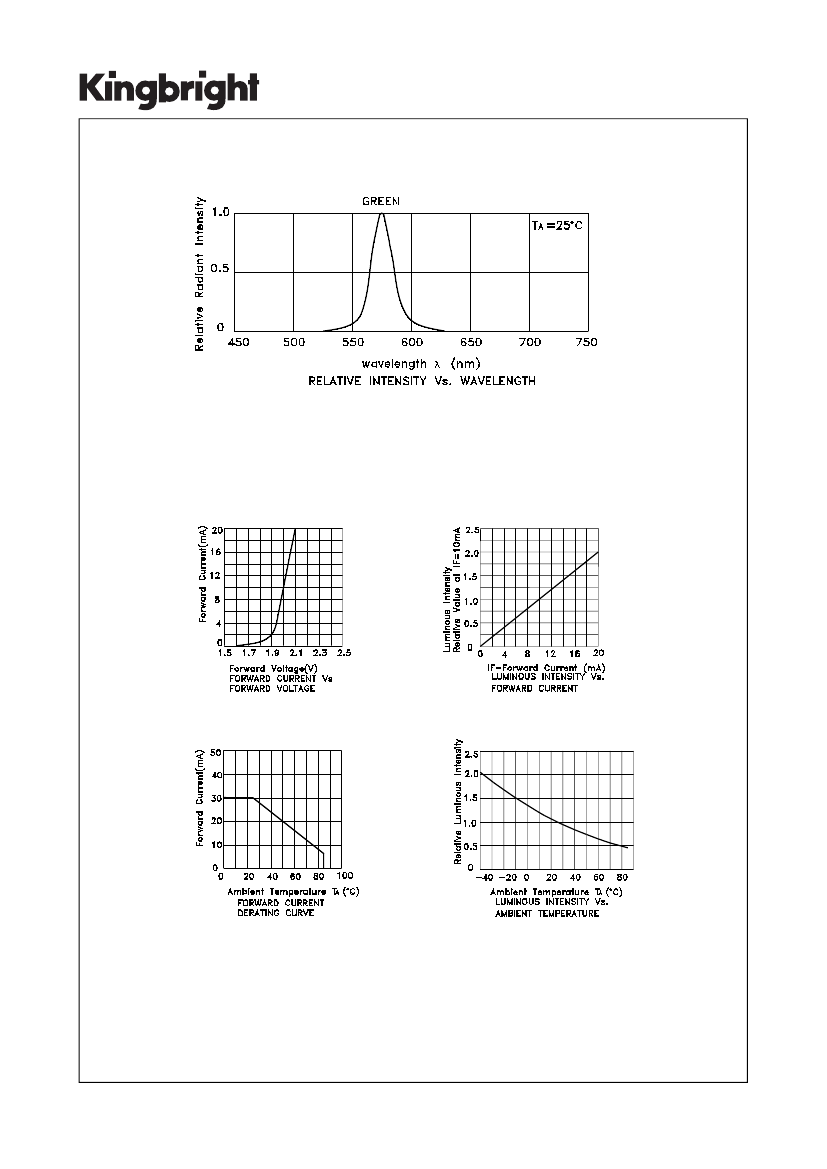

Green
DA56-11CGKWA
SPEC NO: DSAM8549
APPROVED: WYNEC
REV NO: V.2A
CHECKED: Joe Lee
DATE: MAR/19/2015
DRAWN: P.Cheng
PAGE: 3 OF 6
ERP: 1302000681

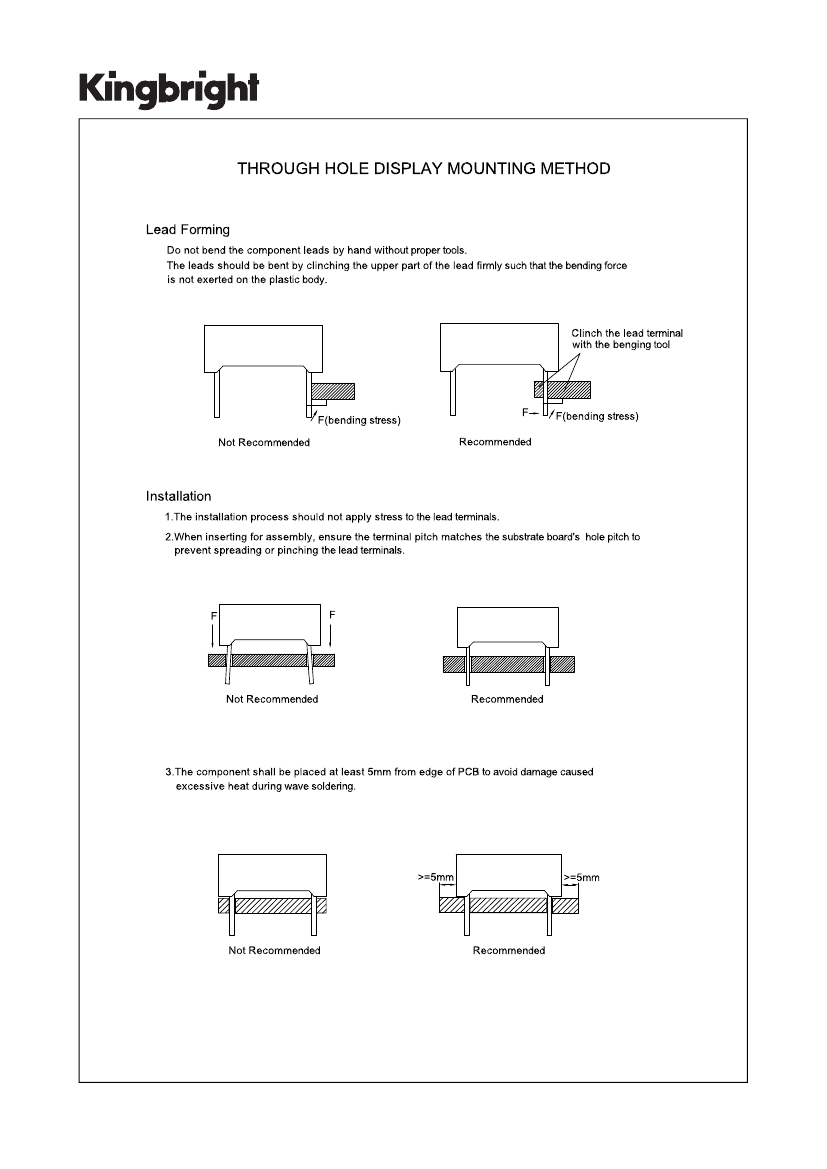

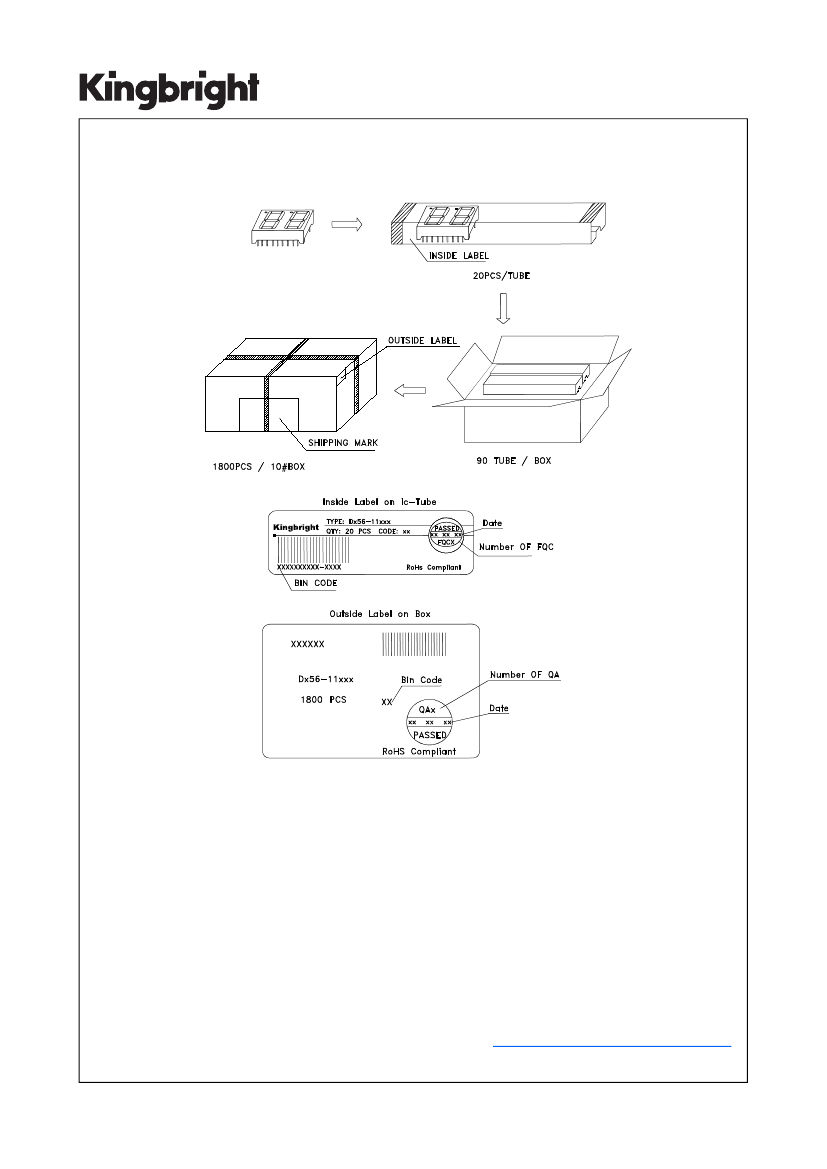

PACKING & LABEL SPECIFICATIONS
DA56-11CGKWA
Terms and conditions for the usage of this document
1. The information included in this document reflects representative usage scenarios and is intended for technical reference only.
2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without
notice. Before production usage customer should refer to the latest datasheet for the updated specifications.
3. When using the products referenced in this document, please make sure the product is being operated within the environmental
and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible
for any subsequent issues.
4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has
special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with
Kingbright representative for further assistance.
5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright.
6. All design applications should refer to Kingbright application notes available at
http://www.KingbrightUSA.com/ApplicationNotes
