H301CHDL-120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> H301CHDL-120

H301CHDL-120: DescriptionOptoelectronic Device,; CategoryLED optoelectronic/LED; File Size75KB，2 Pages; ManufacturerBivar

Download Datasheet Parametric Compare View All

H301CHDL-120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H301CHDL-120	-	-	View	Buy Now

H301CHDL-120 Overview

Optoelectronic Device,

H301CHDL-120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1154924150
Reach Compliance Code	compliant
YTEOL	6.5
color	HIGH EFFICIENCY RED
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.002 A
Maximum forward voltage	2.6 V
Lens type	DIFFUSED
Nominal luminous intensity	3.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of LEDs in the array	2
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	11 mm
method of packing	BULK
peak wavelength	625 nm
Maximum reverse voltage	5 V
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.5 mm
perspective	40 deg

Preview

Download Datasheet

View All

ITEM

Q'TY

PART NUMBER

H-301C-1-XXX

3XX-S

PART DESCRIPTION

T-1 (3mm) Bi-Level LED Holder, 90° Mount, Var. C/L

T-1 (3mm) N-Flange Shouldered LED, See Page 2

REV.

DESCRIPTION

DATE

APPROVED

Engineering Update w/o Changes

LED Package Change to 3XX-S LEDs

Added H301CSRC-XXX Spec

Added P/N Designation Note

Engineering Update w/o Changes

03/10/04

12/14/07

03/04/08

08/19/09

06/24/16

M. C.

T. Y.

J. C.

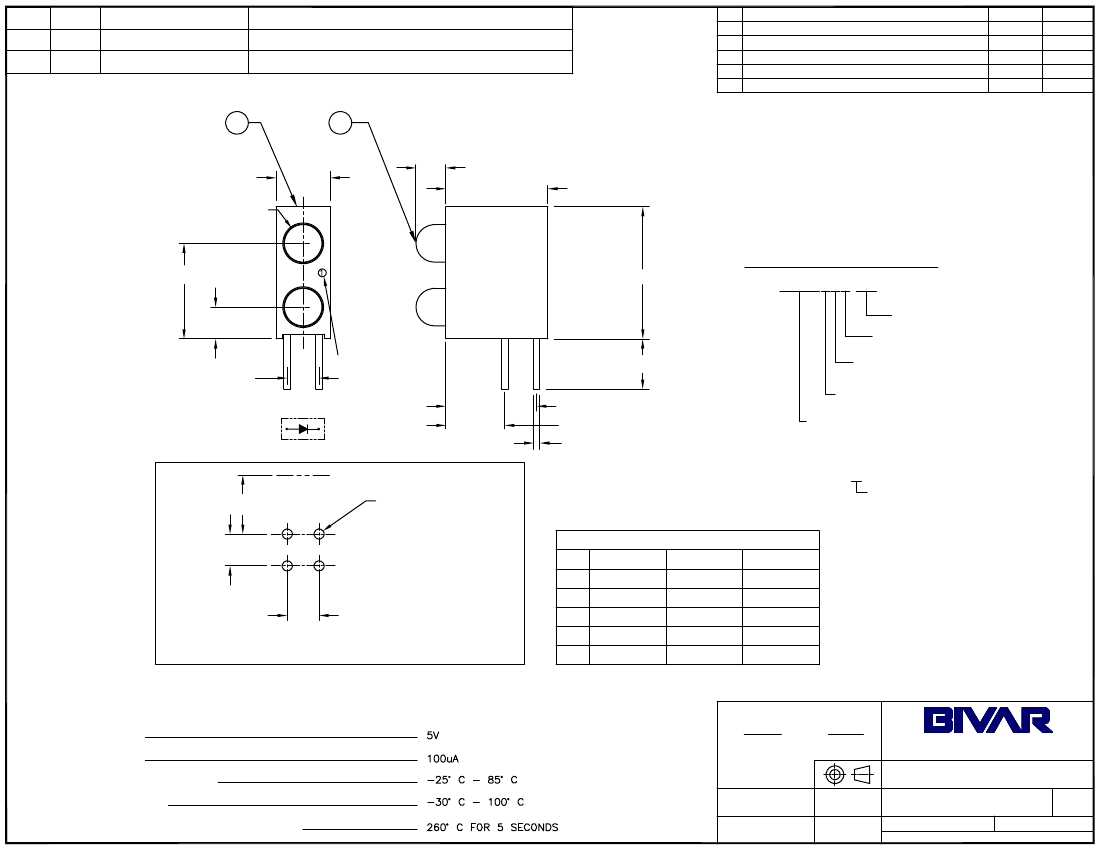

0.170 [4.3mm]

Ø.118 [Ø3.0mm]

TYP.

0.094 [2.4mm]

TYP.

0.320 [8.1mm]

PART NUMBER DESIGNATION

C/L 2

H301CRGD-160*

* XXX = Centerline "C/L"

Centerline "C/L1"

LED Lens Appearance

Color of Bottom LED

-Use "X" if blank

Color of Top LED

-Use "X" if blank

Series

-If all LEDs are the same,

use e.g. H301CRD-100

All Red LEDs

C/L 1

Cathode I.D.

Mark

0.157 [4.0mm]

0.285 [7.2mm]

0.185 [4.7mm]

0.020 [0.5mm]

Holder Face

0.185 [4.7mm]

0.100 [2.5mm]

TYP.

0.100 [2.5mm]

SQ. TYP.

Ø.032+.003

-.002

TYP.

0.100 [2.5mm] LED Lead

Recommended Mounting Holes

Available Centerlines

XXX

C/L 1

C/L 2

100 .100 (2.5) .300 (7.6) .415 (10.6)

120 .120 (3.0) .320 (8.1) .435 (11.0)

140 .140 (3.6) .340 (8.6) .455 (11.6)

160 .160 (4.1) .360 (9.1) .475 (12.1)

180 .180 (4.6) .380 (9.7) .495 (12.6)

ABSOLUTE MAXIMUM RATINGS (Ta=25° C)

REVERSE VOLTAGE

REVERSE CURRENT

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE

LEAD SOLDERING TEMPERATURE(1/16" FROM BODY)

STANDARD TOLERANCE

( UNLESS OTHERWISE SPECIFIED )

DECIMALS

ANGULAR

.XX

.XXX

DESIGNED:

± .1

± .02

± .010

X°

± 1°

4 THOMAS, IRVINE, CA. 92618

TEL: (949) 951-8808

FAX: (949) 951-3974

TITLE:

DATE:

T-1 (3MM) 90° BI-LEVEL

VAR. C/L LED ASSY

REVISION:

T. Yin

CHECKED:

03/10/04

DATE:

PART NO:

H301CXX-XXX

D. Green

03/10/04

CAGE CODE : 32559

SHEET #

CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
