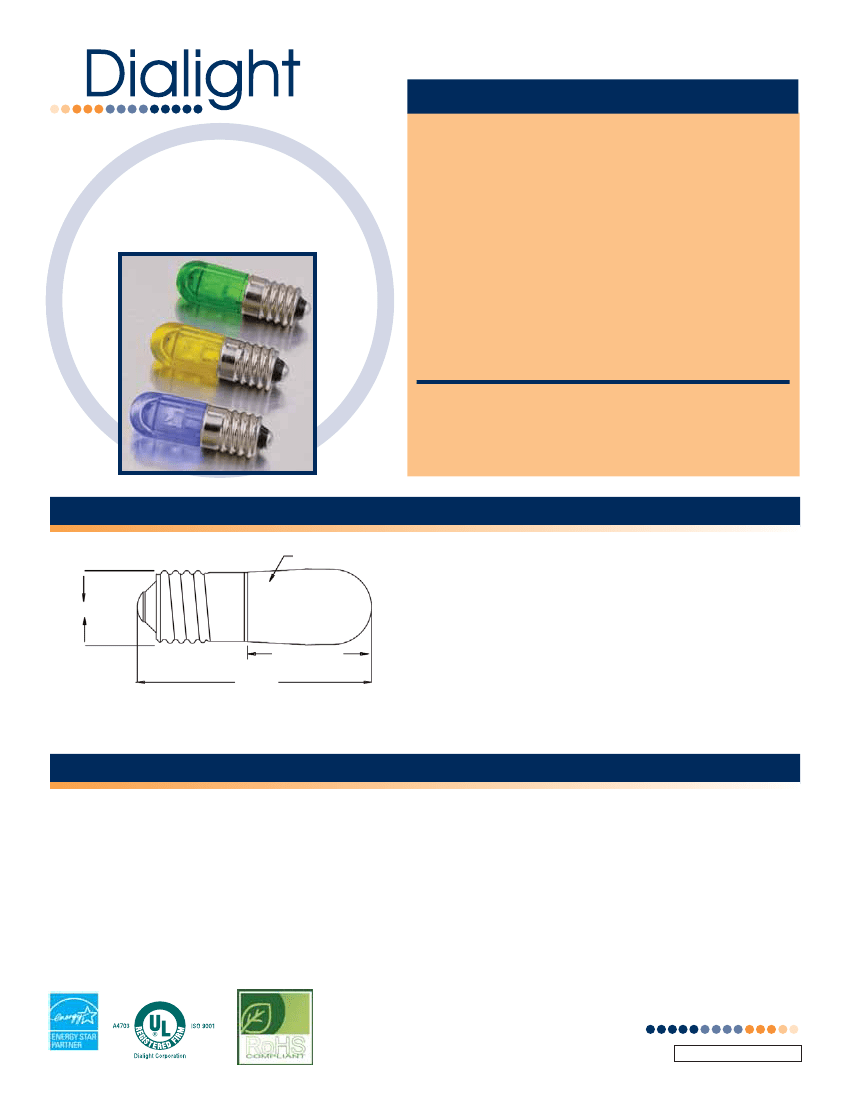

FEATURES / BENEFITS
586 VIP Series
Variable Input 6-36 Volts DC
RoHS Compliant
Unique VIP technology provides 6-36 VDC operation
High brightness with low current draw - uses up to
90% less energy than an incandescent
Long life - typically 100K hours
True non-polarized configuration
No heat generated
Mounts directly into industry standard socket
Resistant to shock and vibration
AlInGaP and InGaN technology
Colors include red, green, yellow, blue and white
Dialight's line of based LED lamps is designed to directly replace
many popular subminiature and miniature incandescent lamps.
The benefits of LED technology over incandescent are significant:
They offer long life, are shock resistant, withstand vibration and
provide energy conservation.
Single Chip BASED LED
T 3
/
4
MINIATURE SCREW BASE (E10)
1
SPECIFICATIONS
Tinted Color Lens
Operating voltage: 6-36 VDC
Non-polarized
Operating temperature: -30
o
C
to +
85
o
C
.37 [9.25]
1.187
[29.675]
Measurements are typical
.626
[15.65]
Storage temperature: -40
o
C
to +
100
o
C
Replaces incandescent lamp numbers:
40, 46, 1481, 1487, 1821*
*
See Dialight’s Incandescent lamp/based LED
cross reference for a complete listing
Dimensions are inches [mm]
CONSIDERATIONS
Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED. If not
matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses, which will
optimize the light output.
Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.
Dialight does not recommend that based LED lamps be used in neon sockets.
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586MSVIP001_C
586 VIP Series
Variable Input 6-36 Volts DC
Single Chip BASED LED
T 3
1
/
4
MINIATURE SCREW BASE (E10)
T 3
1
/
4
MINIATURE SCREW (E10)
Part Number
Color
Dominant
Wavelength
(nm)
Nominal Voltage
(VDC)
Forward Current
TYP. (mA)
Intensity
TYP. (mcd)
RoHS
Compliant
586-2701-220F
586-2702-220F
586-2703-220F
586-2705-220F
586-2706-220F
Red
Green
Yellow
Blue
White
630
525
592
470
*
6-36
6-36
6-36
6-36
6-36
10
10
10
10
10
1000
1500
550
200
650
* Color Coordinates: x = 0.330, y = 0.365
Based LE Ds
SELECTION
With the technological advancements in Light Emitting Diodes (LEDs) brightness can now rival the incandescent
lamp when used in similar packages. These advancements have created a new type of product called the based
LED - an LED with the functionality of an incandescent bulb.
The following styles are currently available in red, green, yellow, blue and white:
T 1
3
/
4
Midget Flange
T 1
3
/
4
Bi-Pin
T 1
3
/
4
Wedge (T5)
T 2 Telephone Slide
T 3
1
/
4
Miniature Bayonet (BA9S)
T 3
1
/
4
Miniature Screw (E10)
T 3
1
/
4
Wedge (T10)
15mm SC Bayonet (BA15S)
Dialight’s line of based LEDs continues to grow.
Please visit our website for more information.
www.dialight.com
Dialight reserves the right to make changes at any time
in order to supply the best product possible.
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEL586MSVIP001_C
