3.0mmx1.0mm RIGHT ANGLE SMD CHIP
LED LAMP
APBA3010SURKSGC-F01
HYPER RED
SUPER BRIGHT GREEN
Features
3.0mmx1.0mm RIGHT ANGLE SMT LED, 2.0mm
THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLRS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
RoHS COMPLIANT.
Description
The Hyper Red source color devices are made with DH
InGaAlP on GaAs substrate Light Emitting Diode.
The Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.

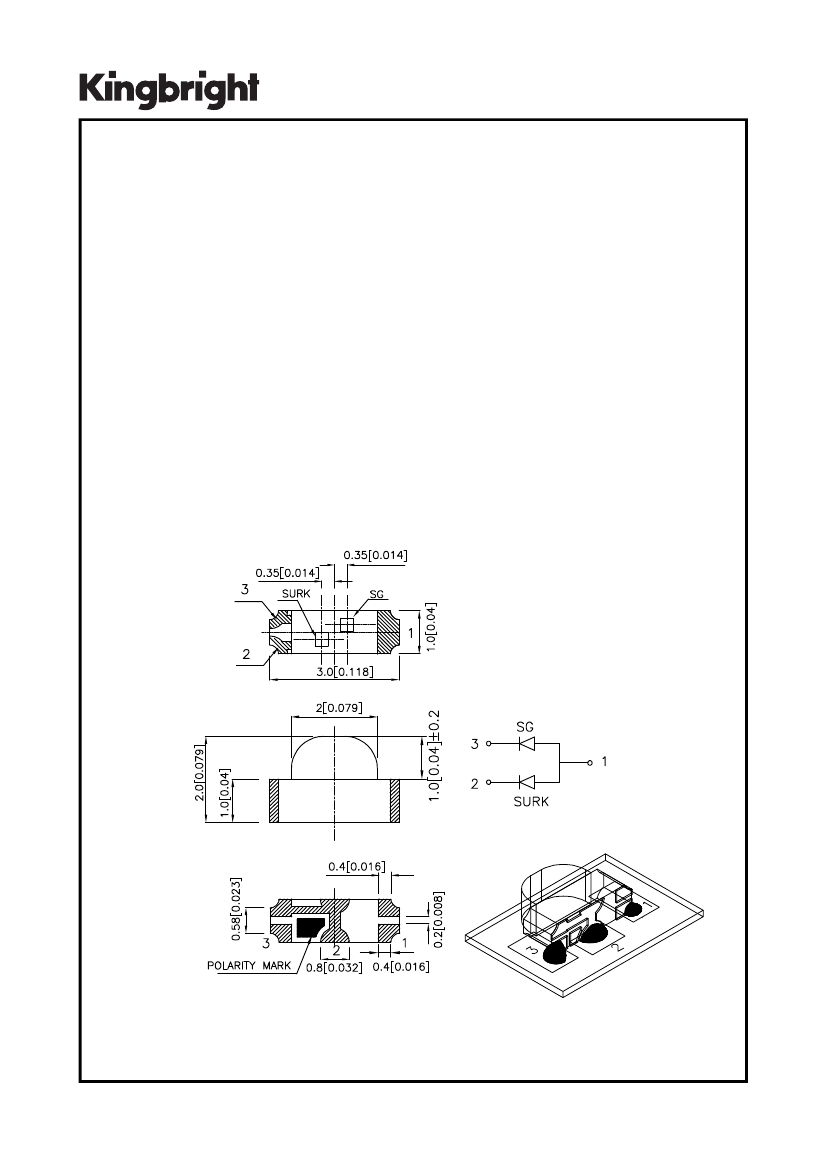

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.15(0.006")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAF1106
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2005
DRAWN: Y.W.WANG
PAGE: 1 OF 5
ERP:1203000846-01
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Min.
HYPER RED (InGaAlP)
APBA3010SURKSGC-F01
SUPER BRIGHT GREEN (GaP)
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Viewing
Angle
2
θ
1/2
140°
Typ.
200
12
110
WATER CLEAR
4
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
All
Typ.
650
565
635
568
28
30
35
15
1.95
2.2
2.5
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Hyper Red
170
30
185
5
Super Bright Green
105
25
140
5
-40°C To +85°C
Units
mW
mA
mA
V
SPEC NO: DSAF1106
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2005
DRAWN: Y.W.WANG
PAGE: 2 OF 5
ERP:1203000846-01
APBA3010SURKSGC-F01

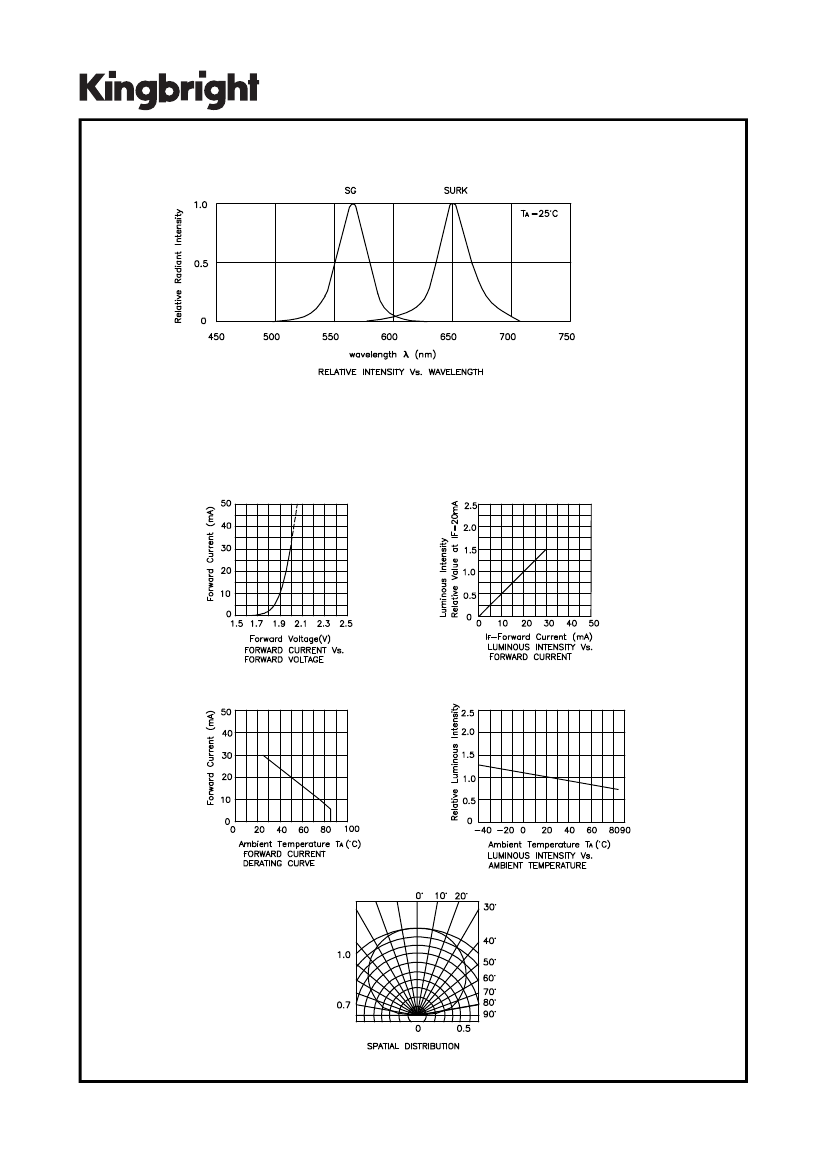

Hyper Red
SPEC NO: DSAF1106
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2005
DRAWN: Y.W.WANG
PAGE: 3 OF 5
ERP:1203000846-01

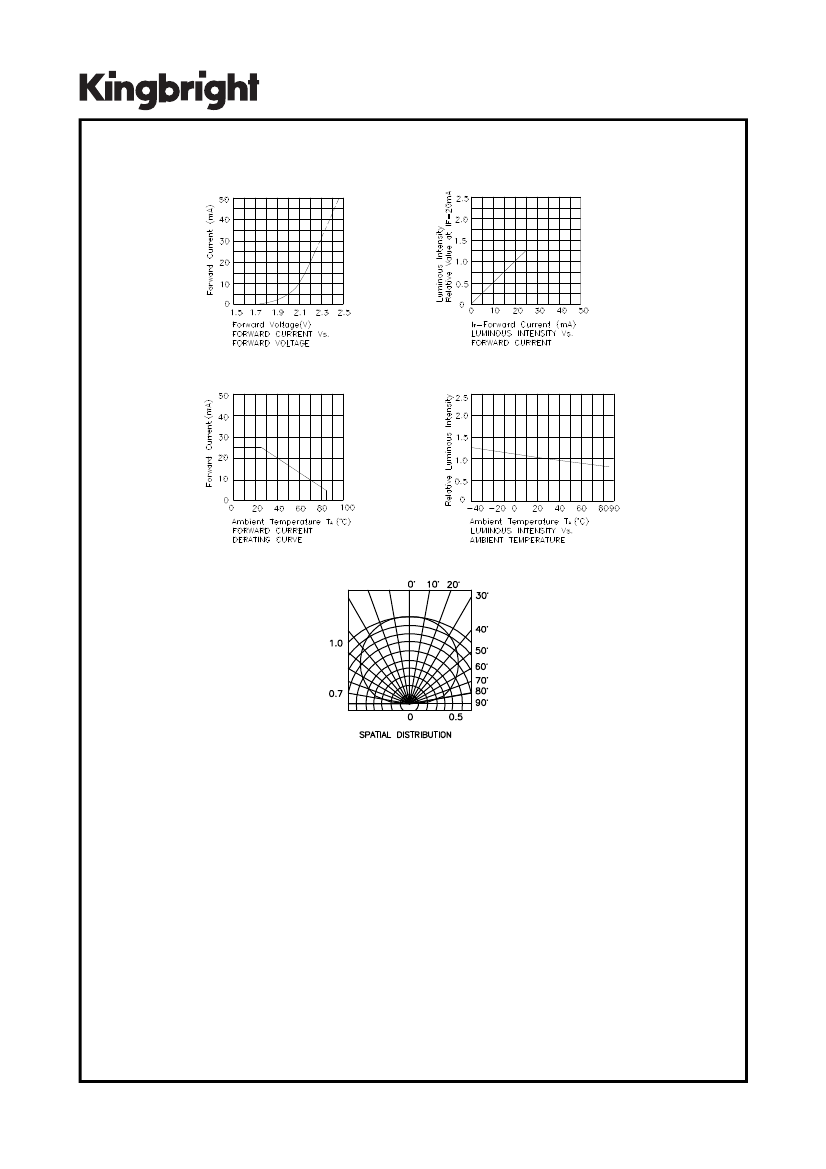

Super Bright Green
SPEC NO: DSAF1106
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2005
DRAWN: Y.W.WANG
PAGE: 4 OF 5
ERP:1203000846-01
APBA3010SURKSGC-F01

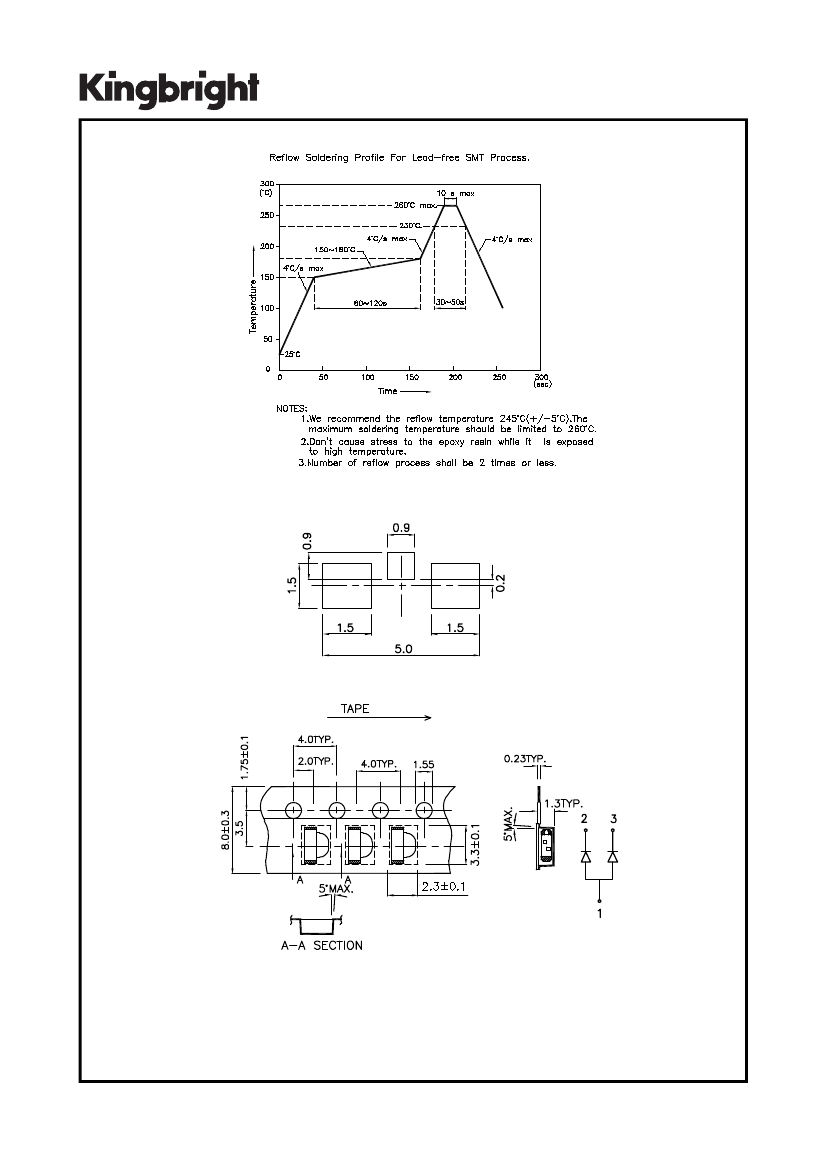

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAF1106
APPROVED: J. Lu
REV NO: V.1
CHECKED: Allen Liu
DATE: MAR/19/2005
DRAWN: Y.W.WANG
PAGE: 5 OF 5
ERP:1203000846-01
