D Absolute Maximum Ratings (Ambient Temperature 25°C):
Properties
Power dissipation
Peak Forward Current
Continuous Forward Current
Reverse Voltage
ESD Threshold/ Human Body Modell
Absolute thermal resistance junction to solder
point
Junction temperature
duty/10
@1kHz
Test condi-
tions
PDiss
IF Peak
IF
VRev
VESD
R
θJS
Tj
Value
510
300
150
5
2000
42
125
Unit
mW
mA
mA
V
V
K/ W
°C

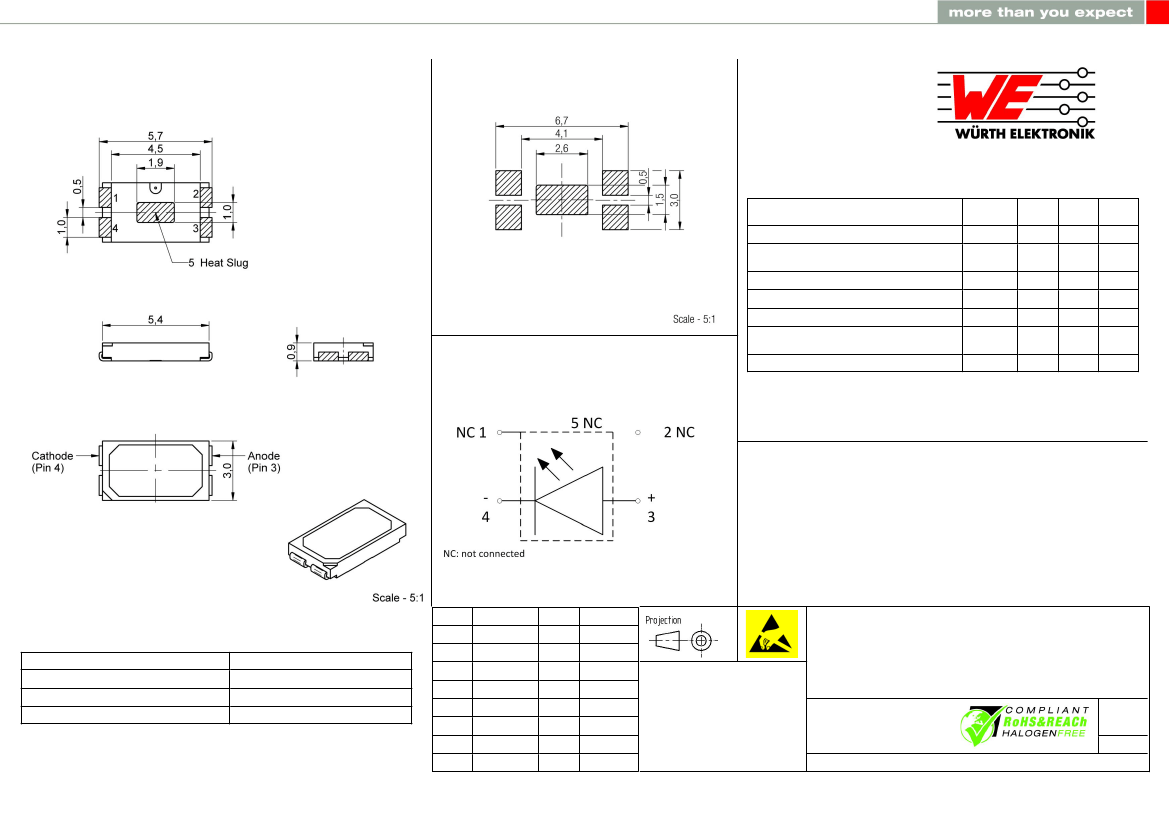

C Schematic:
E General information:
•Operating temperature: -40°C to +85°C
•Storage temperature (on tape & reel): -40°C to +85°C; 60% RH max.
•Moisture Sensitivity Level (MSL): 3
DESCRIPTION
Optical Properties:
Properties
Chip Technology
Emitting Color
Lens Type
Value
InGaN
Warm White
Top LED
3.0
2.1
2.0
1.1
1.0
REV
2016-06-18
2015-03-23
2014-11-10
2014-06-03
2014-01-30
DATE
KaS
SSt
SSt
SSt
SSt
BY
ZAn
HOe
ZAn
PLD
PLD
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WL-SWTP SMD White Top View PLCC LED
Order.- No.
SIZE
A4
158563430
Size: 5630
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
D Electrical & Optical Properties:
Properties
Chromaticity coordinate X according to CIE 1931
Chromaticity coordinate Y according to CIE 1931
Luminous Flux
Forward Voltage
Correlated Color Temperature
Reverse Current
Color Rendering Index
Viewing Angle
Test conditions
min.
100 mA
100 mA
100 mA
100 mA
100 mA
5V
100 mA
100 mA
cx
cy
Φ
v
VF
CCT
IRev
CRI
2θ50%
80
25
Value
typ.
0.4293
0.3960
34
3.0
3000
100
85
120
°
3.4
lm
V
K
μA
max.
Unit

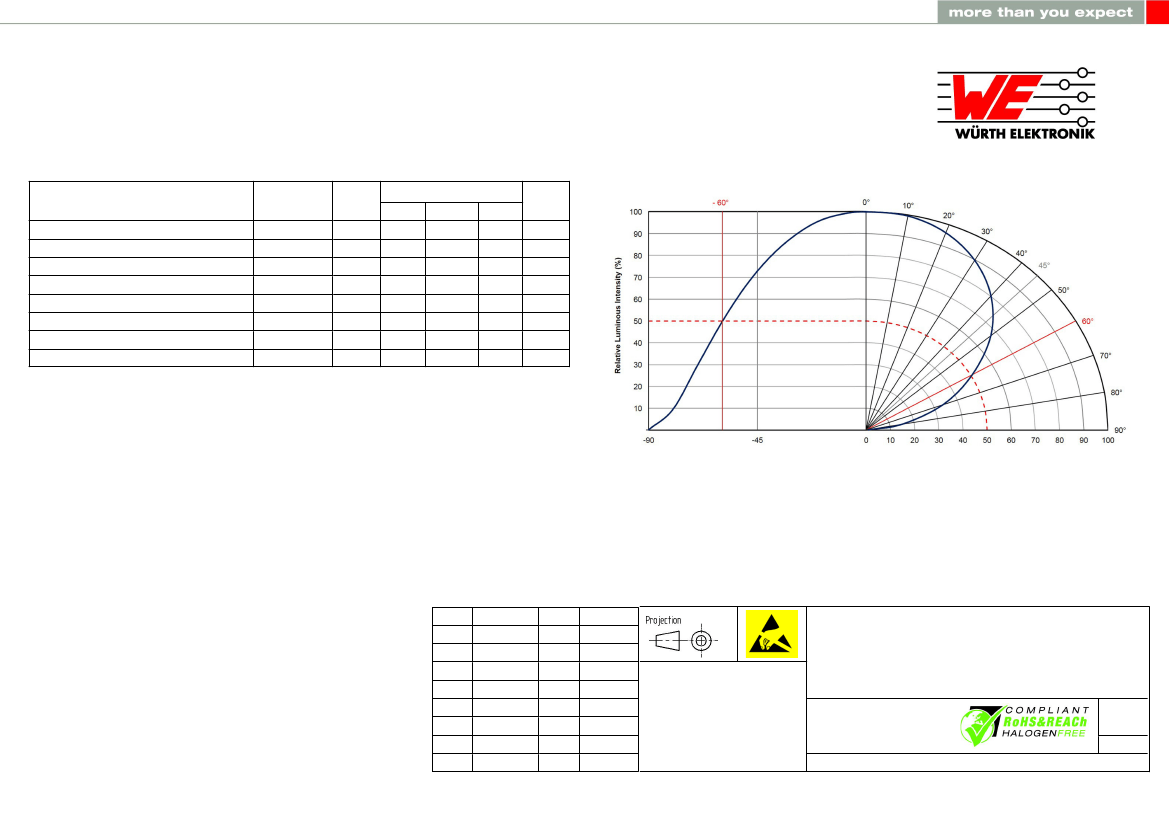

F1 Viewing Angle:
DESCRIPTION
WL-SWTP SMD White Top View PLCC LED
3.0
2.1
2.0
1.1
1.0
REV
2016-06-18
2015-03-23
2014-11-10
2014-06-03
2014-01-30
DATE
KaS
SSt
SSt
SSt
SSt
BY
ZAn
HOe
ZAn
PLD
PLD
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
Order.- No.
SIZE
A4
158563430
Size: 5630
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

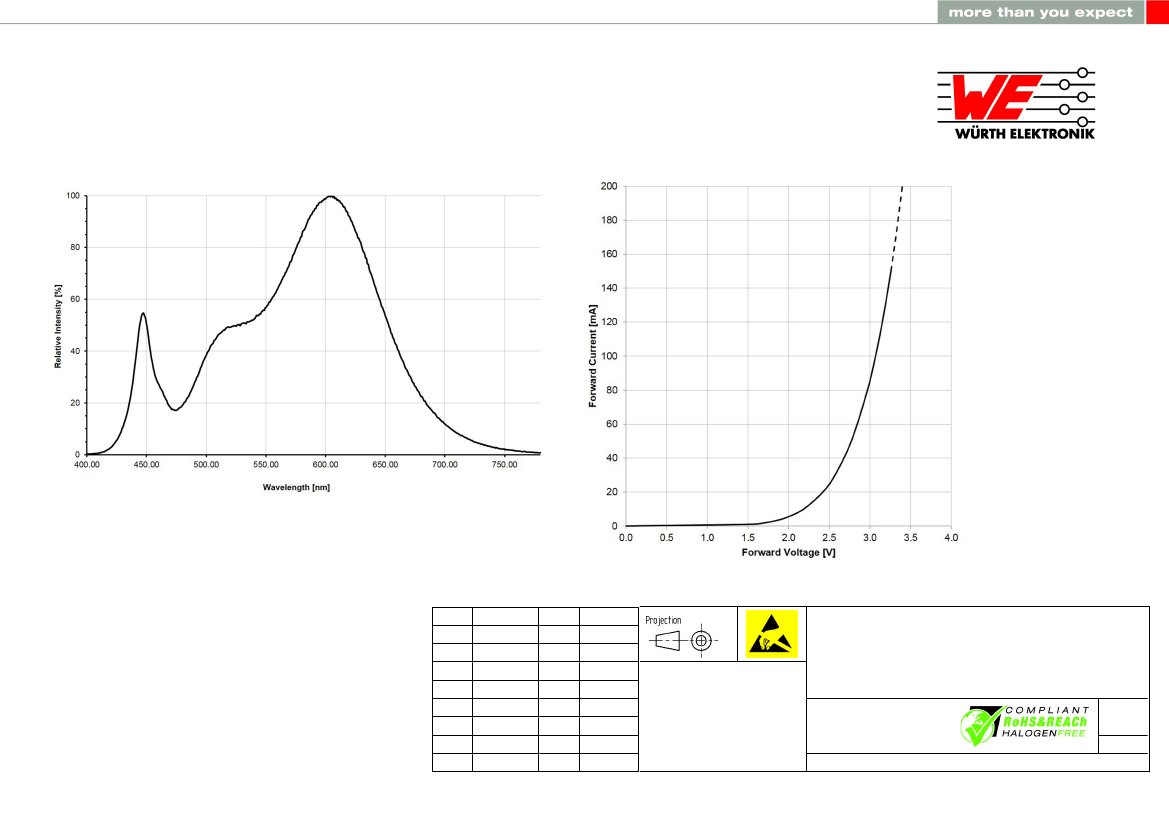

F2 Spectral:
F3 Forward Current vs. Forward Voltage:
DESCRIPTION
WL-SWTP SMD White Top View PLCC LED
3.0
2.1
2.0
1.1
1.0
REV
2016-06-18
2015-03-23
2014-11-10
2014-06-03
2014-01-30
DATE
KaS
SSt
SSt
SSt
SSt
BY
ZAn
HOe
ZAn
PLD
PLD
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
Order.- No.
SIZE
A4
158563430
Size: 5630
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

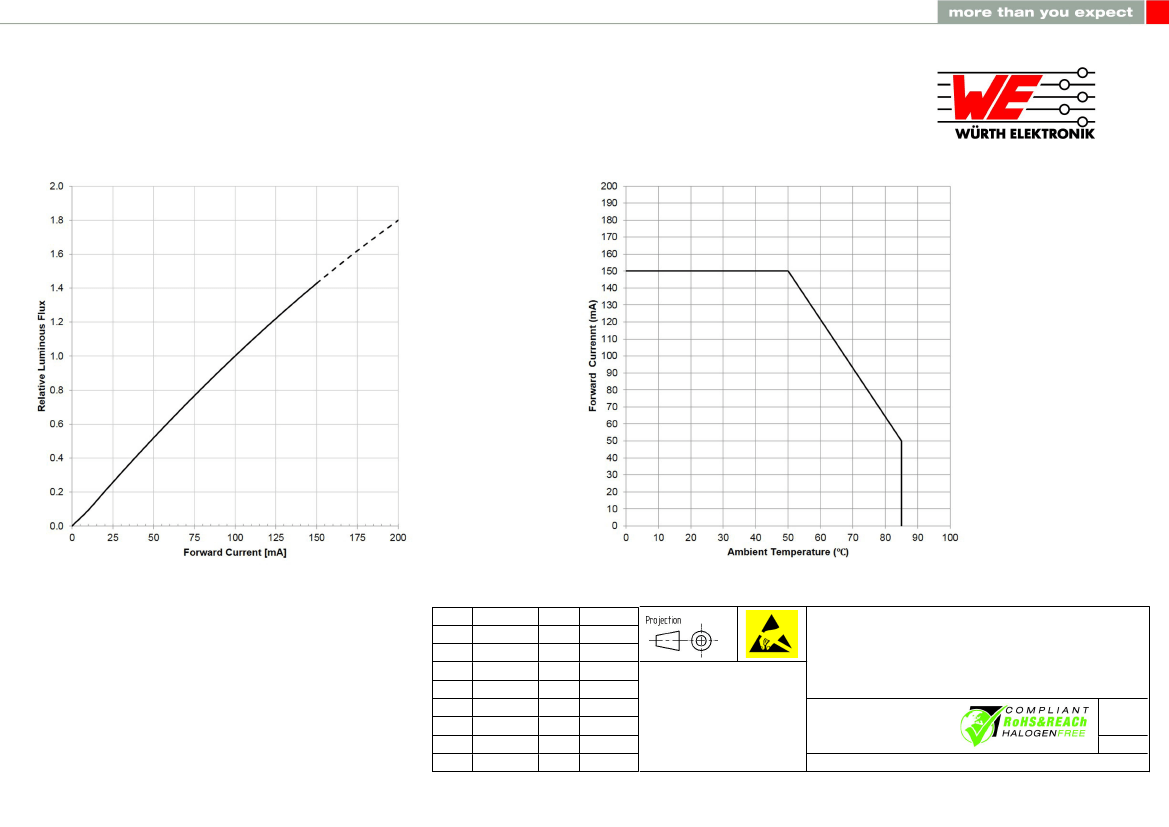

F4 Luminous Intensity vs. Forward Current:
F5 Derating Curve:
DESCRIPTION
WL-SWTP SMD White Top View PLCC LED
3.0
2.1
2.0
1.1
1.0
REV
2016-06-18
2015-03-23
2014-11-10
2014-06-03
2014-01-30
DATE
KaS
SSt
SSt
SSt
SSt
BY
ZAn
HOe
ZAn
PLD
PLD
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
Order.- No.
SIZE
A4
158563430
Size: 5630
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

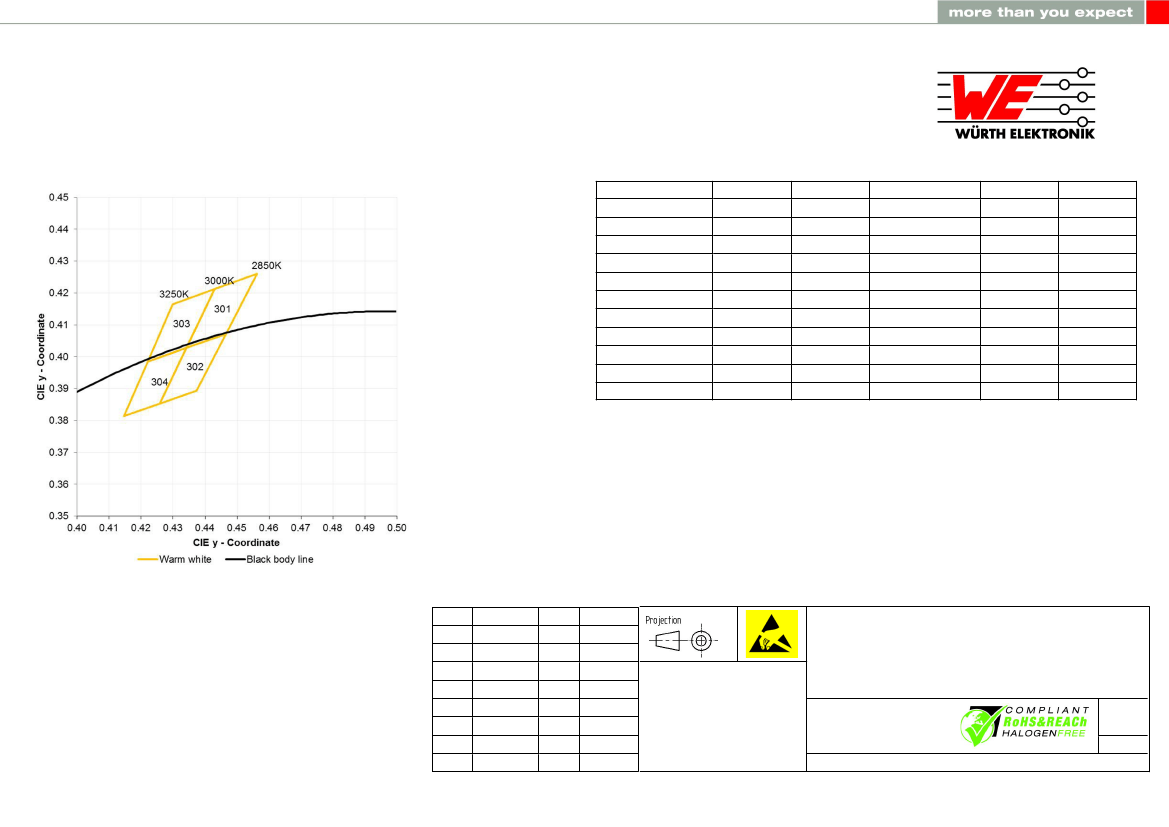

F6 Chromaticity diagram:
F6 Chromaticity Performance - Bin groups from
2850K to 3000K
301
Cx
0.4342
0.4430
0.4562
0.4465
0.4342
302
0.4259
0.4342
0.4465
0.4373
0.4259
Cy
0.4028
0.4212
0.4260
0.4071
0.4028
0.3853
0.4028
0.4071
0.3893
0.3853
304
3000K to 3250K
303
Cx
0.4147
0.4221
0.4342
0.4259
0.4147
0.4221
0.4299
0.4430
0.4342
0.4221
Cy
0.3814
0.3984
0.4028
0.3853
0.3814
0.3984
0.4165
0.4212
0.4028
0.3984
DESCRIPTION
WL-SWTP SMD White Top View PLCC LED
3.0
2.1
2.0
1.1
1.0
REV
2016-06-18
2015-03-23
2014-11-10
2014-06-03
2014-01-30
DATE
KaS
SSt
SSt
SSt
SSt
BY
ZAn
HOe
ZAn
PLD
PLD
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
Order.- No.
SIZE
A4
158563430
Size: 5630
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
