BREAK-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Development board/suite/development tools> BREAK-1

BREAK-1: DescriptionInterface Development Tools RS-232 DB25 BREAK OUT BOX; CategoryDevelopment board/suite/development tools; File Size253KB，1 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric View All

BREAK-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BREAK-1	-	-	View	Buy Now

BREAK-1 Overview

Interface Development Tools RS-232 DB25 BREAK OUT BOX

BREAK-1 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	B+B SmartWorx
Product Category	Interface Development Tools
RoHS	Details
Product	Evaluation Kits
Type	RS-232
Tool Is For Evaluation Of	-
Description/Function	Portable, pocket size test set provides access to all 25 conductors of the RS232/V.24 interface between the data terminal and the data modem
Interface Type	RS-232
Factory Pack Quantity	1

Preview

Download Datasheet

View All

BREAK-1_2513ds

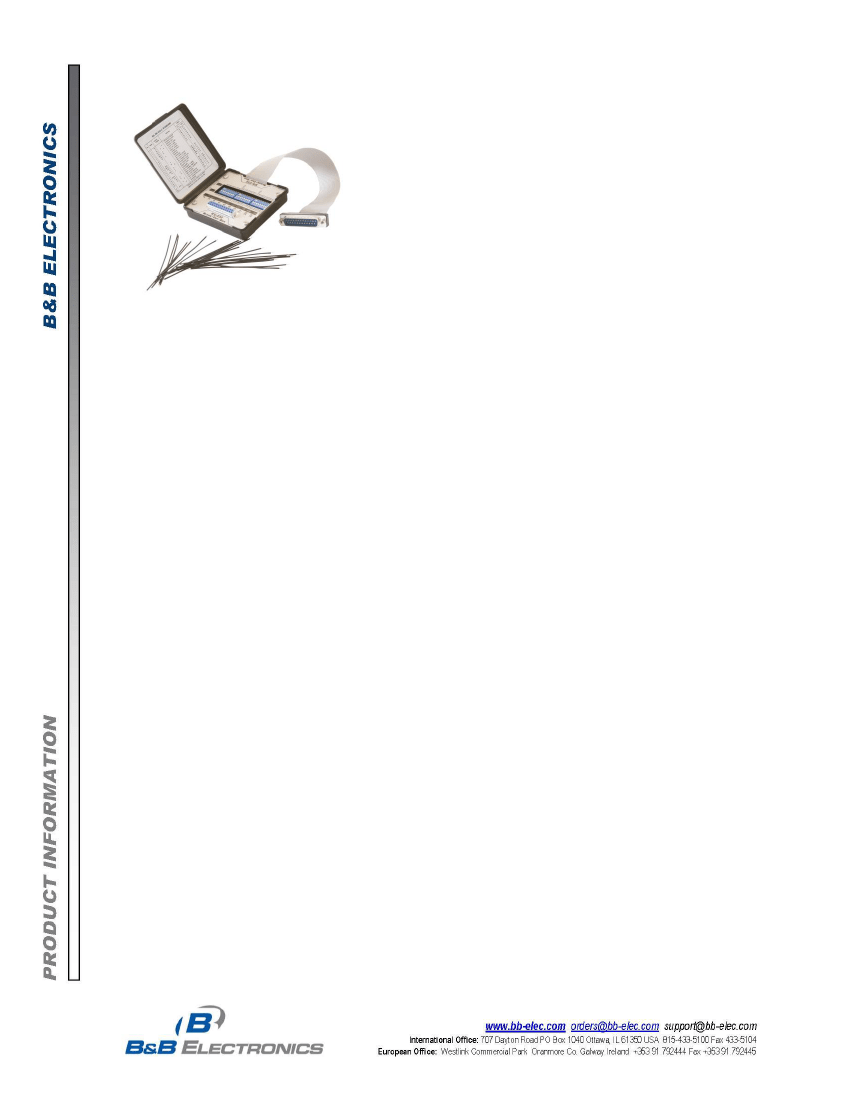

RS232 BREAK-OUT BOX

A) DESCRIPTION

This portable, pocket size test set provides access to all 25 conductors of the RS232/V.24

interface between the data terminal and the data modem. Ten LED’s monitor the status at

the source of ten primary signals, and two additional LED’s for spare. Twenty-four miniature

switches allow all interface conductors (except frame ground or pin1) to be individually

interrupted allowing isolated testing and observation of terminal or modem signals. Pins on

each side of each switch and small jumper cables (stored in the cover) are provided to allow

cross-patching and monitoring of signals.

B) FEATURES



Access to all RS232/V.24 circuits



Twelve LED’s to monitor key circuits.



Test points each side of switches to enable cross patching with jumper leads

provided.

C) INSTRUCTION MANUAL

1. RS232 BREAK-OUT BOX is used to test and rewire RS232 interface. Put RS232

connector cable of BREAK-OUT BOX into the port of interface card. After that,

connect the cable which you want to test the RS232 port on the BREAK-OUT BOX.

2. There are 10 interface signal powered LED’s to permanently monitor TD, RD, RTS,

CTS, DSR, CD, TC, RC, DTR, (E)TC and two LED’s for spare.

3. 24 miniature switches enable you to break out circuits or reconfigure and patch any

or all of the 24 active positions.

4. 20pcs jumpers enable you to change the circuits.
