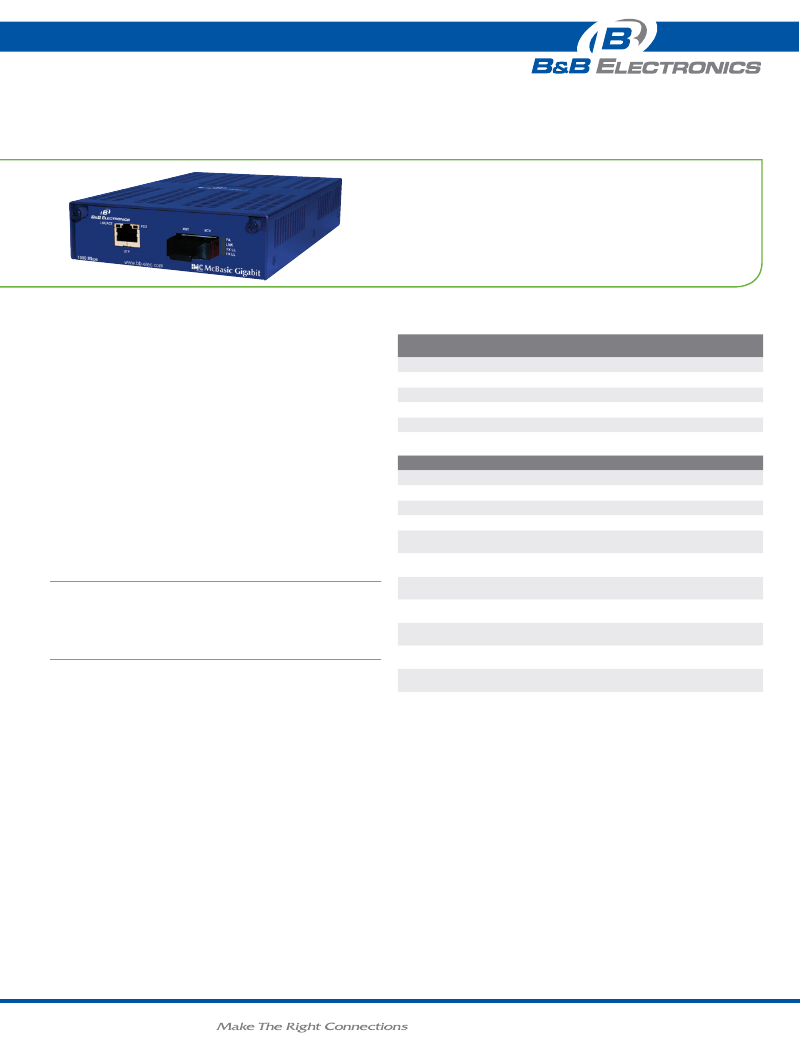

1000 mbps compact media converter
McBasic Gigabit (LFPT)
product FEaturEs
• Has a small, rugged design offering many advanced features
• Available for multi-mode or single-mode fiber
• LinkLoss, FiberAlert, and Link Fault Pass Through features,
along with LEDs, assist in diagnosing problems on fiber optic networks
• Convert 1000 Mbps twisted pair to 1000 Mbps fiber
The McBasic’s small, table-top design and durability make it perfect
for installation anywhere space is limited. Additionally, the McBasic
comes with an internal AC power supply. This feature significantly
increases reliability over products that use bulky, external AC/DC power
transformers.
LinkLoss, FiberAlert and Link Fault Pass Through (LFPT) that make
isolating fiber breaks easier should they occur. The McBasic also
features AutoCross to support crossover/pass-through on the twisted
pair connection and diagnostic LEDs. Most McBasic units are available
with single-strand fiber which can effectively double the capacity of
fiber by allowing two individual channels to share one strand of fiber;
Full-Duplex data travels on different wavelengths — 1310 nm and
1550 nm, for example.
accEssorIEs
895-39226
- Rackmount Bracket
895-39949
- Rackmount Shelf
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
McBasic gigabit (lFPt)
855-11913
SX-MM850-SC
1
220/550 m
855-11914
LX-SM1310-SC
1
15 km
855-11915
LX-SM1310/PLUS-SC
1
40 km
855-11917
LX-SM1550/LONG-SC
1
80 km
LX-SM1550/XLONG-
855-11918 SC
1
100 km
single-strand FiBer *
855-11844
SSLX-SM1310-SC
1
15 km
855-11845
SSLX-SM1550-SC
1
15 km
855-11824
SSBX-SM1310-SC
1
10 km
855-11825
SSBX-SM1490-SC
1
10 km
855-11846
SSLX-SM1310/
1
40 km
PLUS-SC
855-11847
SSLX-SM1550/
1
40 km
PLUS-SC
855-11826
SSBX-SM1310/
1
30 km
PLUS-SC
855-11827
SSBX-SM1491/
1
30 km
PLUS-SC
855-11850
SSLX-SM1490/
1
70 km
LONG-SC
855-11851
SSLX-SM1550/
1
70 km
LONG-SC
855-11852
SSLX-SM1490/
1
80 km
XLONG-SC
855-11853
SSLX-SM1550/
1
80 km
XLONG-SC
ethernet ethernet
Ports
ConneCtor
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
www
.
bb
-
elec
.
com
|
McBasic Gigabit LFPT_3713ds
1000 mbps compact
media converter
McBasic Gigabit (LFPT)
SpecificationS
Technical
Include MDI/MDIX switch
Includes fixed, internal AC power
50/125µm or 62.5/125µm multi-mode fiber
9/125µm single-mode fiber
Includes diagnostic LEDs
IEEE 802.3ab 1000Base-T twisted pair
IEEE 802.3z 1000Base-LX or SX fiber
Features Link Fault Pass-Through (LFPT) and FiberAlert
connecTors
RJ45 and SC
Supports Half- and Full-Duplex operation

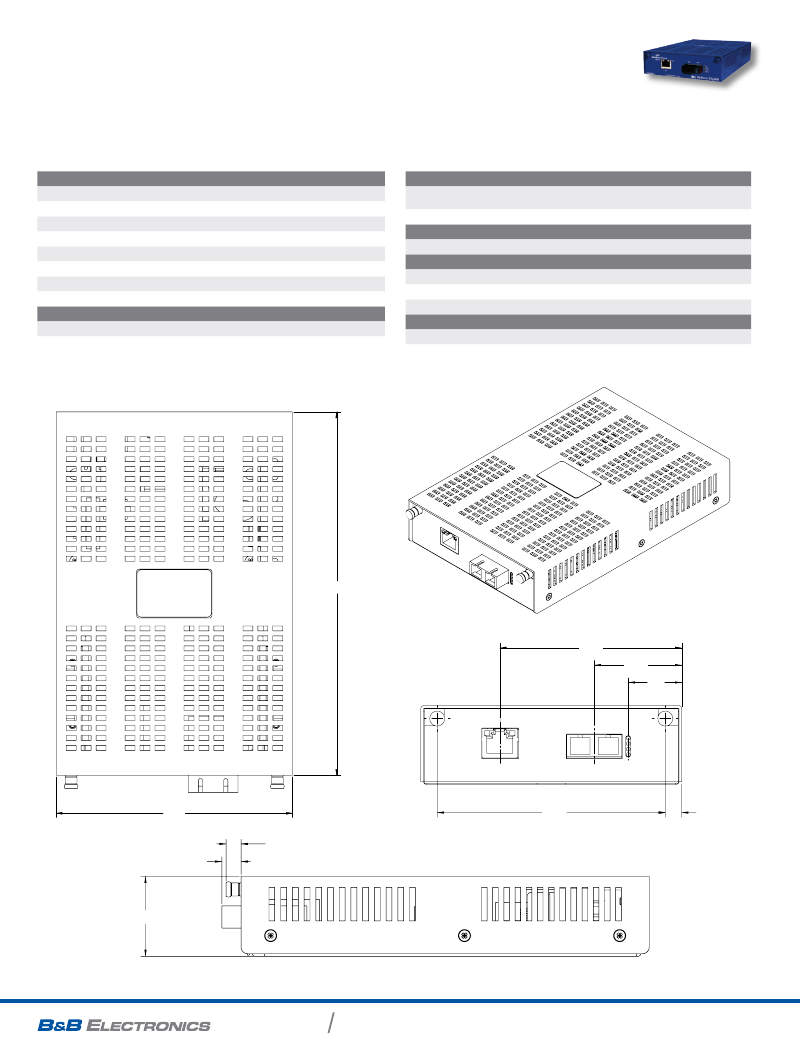

mEchanIcal dIagram
(dimensions in inches & millimeters)
Mechanical
Dimensions
Shipping Weight
Power rating
100-240 VAC, 50/60Hz, 1.0A
environMental
Operating Temperature
Storage Temperature:
Operating Humidity
regulatory aPProvals
FCC Class A
UL/cUL, CSA, CE
1.64”H x 4.75”W x 7.3”D
(4.2 cm x 12.17 cm x 18.71 cm)
1.7 lbs (0.77 kg)
+32° to +122° F (0° to +50° C)
0° to +160° F (-20° to +70° C)
5% to 95% (non-condensing)
7.30
3.30
1.59
.97
4.74
4.14
.30
.27
.34
1.43
orders@bb-elec.com
support@bb-elec.com
International Office:
707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office:
Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
