DS9105-009: DescriptioniButtons & Accessories; CategoryModule/solution; File Size48KB，2 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric View All

DS9105-009 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DS9105-009	-	-	View	Buy Now

DS9105-009 Overview

iButtons & Accessories

DS9105-009 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Maxim
Product Category	iButtons & Accessories
RoHS	N
Product	iButtons
Memory Type	EPROM
Memory Size	128 B
Operating Supply Voltage	2.8 V to 6 V
Interface Type	1-Wire
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Dimensions	16.5 mm x 3 mm

Preview

Download Datasheet

View All

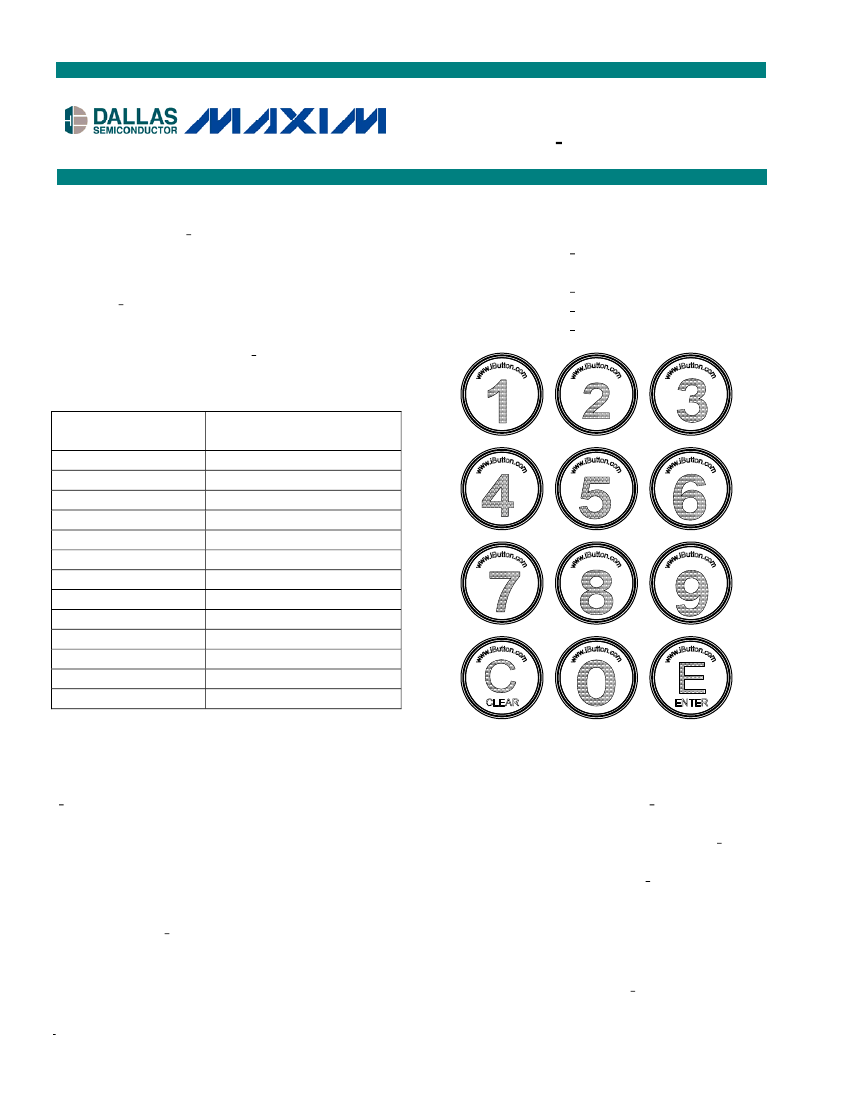

19-4879; Rev 8/09

DS9105

iButton Number Set

www.maxim-ic.com

FEATURES



DS1982-based iButtons branded with their

respective character for optimum legibility

128 bytes of user-programmable EPROM in

each iButton for maximum flexibility

Available as set of 12 (as shown in the

graphic) or as individual iButtons

EXAMPLES OF ACCESSORIES

DS9096P

DS9092GT

DS9097U

DS9106

DS9093RA

DS9093RB

Self-Stick Adhesive Pad

iButton Wand

COM-Port Adapter

iButton Halos

iButton Lock Ring

iButton Flange Enlargement

ORDERING INFORMATION

PART

DS9105-SET#

DS9105-000#

DS9105-001#

DS9105-002#

DS9105-003#

DS9105-004#

DS9105-005#

DS9105-006#

DS9105-007#

DS9105-008#

DS9105-009#

DS9105-00C#

DS9105-00E#

TYPE

COMPLETE SET OF 12

NUMBER ZERO

NUMBER ONE

NUMBER TWO

NUMBER THREE

NUMBER FOUR

NUMBER FIVE

NUMBER SIX

NUMBER SEVEN

NUMBER EIGHT

NUMBER NINE

CLEAR

ENTER

#Denotes a RoHS-compliant device that may include lead(Pb) that is

exempt under the RoHS requirements.

DESCRIPTION

Unlike conventional keypads, where data is entered by pressing a mechanical key, the solid buttons of an

iButton keypad allow users to enter data by simply touching each button with an iButton probe or

handheld computer. Each of these buttons comes from the factory with blank memory, allowing the user

to program each button with whatever data the user would like entered when touched. The iButton

keypad is a simple, robust alternative for data entry in harsh environments such as outdoors, industrial

workplaces and other locations, where a normal keypad is impractical to operate. Since iButtons are made

from stainless steel, this keypad is easily cleaned with hot water and detergent.

The individual iButtons that comprise the keypad can be arranged as desired to maximize ease of use.

They can be stuck on a smooth surface using adhesive pads or mounted through 16.5mm holes in a rigid

material and fastened by lock rings. The material thickness should not exceed 3.0mm. For a detailed

description of the communication protocol and the electrical characteristics of the iButton used in this

keypad, refer to the DS1982 data sheet.

iButton is a registered trademark of Maxim Integrated Products, Inc.

1 of 2
